USER GUIDE
Battery BacPac
™
EXTEND YOUR GOPRO CAMERA'S
BATTERY LIFE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BacPac and is the answer not in the manual?

Questions and answers

Related Manuals for GoPro BacPac

Summary of Contents for GoPro BacPac

  • Page 1 USER GUIDE Battery BacPac ™ EXTEND YOUR GOPRO CAMERA’S BATTERY LIFE.
  • Page 2 To download this user guide in a different language, visit gopro.com/support. Pour télécharger ce manuel de l’utilisateur dans une autre langue, rendez-vous sur gopro.com/support. Wenn Sie dieses Benutzerhandbuch in einer anderen Sprache herunterladen möchten, besuchen Sie gopro.com/support. Per scaricare questo manuale utente in un’altra lingua, visita gopro.com/support.
  • Page 3 / Features LED Status Light USB Port LCD Window...

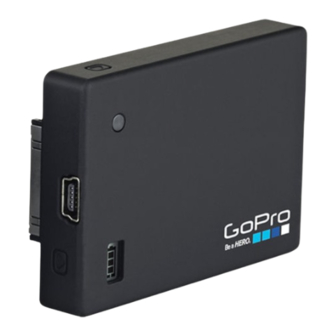

  • Page 4 / Battery BacPac Overview The Battery BacPac attaches to the back of your GoPro* to increase battery life. It’s perfect for long-duration Time Lapse photo sessions, endurance motorsports racing or any application in which you need extended battery life. When connected and powered on, the Battery BacPac serves as an initial source of power.
  • Page 5 / Attaching the BacPac to Your GoPro Step 1 Step 2 Slide the hooked end of the BacPac Insert the BacPac connector into the into the groove on the right side of the HERO Port on the back of the camera.
  • Page 6 / Removing the BacPac from Your GoPro Step 1 Step 2 Pull back on the left side of the BacPac Slide the hooked end of the BacPac out marked with the arrow to disconnect it of the camera groove. from the HERO Port.
  • Page 7 The top row indicates the Battery BacPac status and the bottom row indicates the internal camera battery status. The LCD window on the Battery BacPac displays the charge status for the BacPac. TO CHECK THE BACPAC CHARGE STATUS Press the Battery BacPac button once.
  • Page 8 You can also charge the Battery BacPac by connecting it to your computer using the included USB charging cable. Note: Be sure that the computer is connected to a power source. If the LCD window on the BacPac does not indicate that the BacPac is charging, use a different USB port.
  • Page 9 / Swapping Housing Backdoors To use the Battery BacPac with your camera housing, you must swap out the original housing backdoor for a BacPac Backdoor. Two BacPac Backdoors are supplied with the Battery BacPac: • Standard BacPac Backdoor—Makes your camera waterproof to 131’ (40m).
  • Page 10 TO SWAP OUT THE BACKDOOR Step 1 Step 2 Step 3 Step 4 Open the backdoor Gently pull Line up the Push upwards on of the housing so it downward on the replacement the backdoor until hangs downward. backdoor until it backdoor to the it clicks into place.

  • Page 11: Battery Information

    / Battery Information BATTERY STORAGE AND HANDLING The camera contains sensitive components, including the battery. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint or insert foreign objects into the battery opening on the camera. Do not use the camera or the battery if it has been damaged—for example, if cracked, punctured or harmed by water.

  • Page 12: Battery Disposal

    The camera housing protects the camera and battery from water damage. For more information, see Swapping Housing Backdoors. Do not turn on your camera if it is wet. If your camera is already on, turn it off and remove the battery immediately. Allow the camera to dry thoroughly before using it again.
  • Page 13 with packing, masking or electrical tape so they do not cause a fire while being transported. Lithium-ion batteries, however, do contain recyclable materials and are accepted for recycling by the Rechargeable Battery Recycling Corporation’s (RBRC) Battery Recycling Program. We encourage you to visit Call2Recycle at call2recycle.org or call 1-800-BATTERY in North America to find a convenient recycling location.

  • Page 14: Regulatory Information

    / Regulatory Information...
  • Page 15 Learn more about GoPro products at gopro.com Please Recycle 130-06607-000 REVA...
