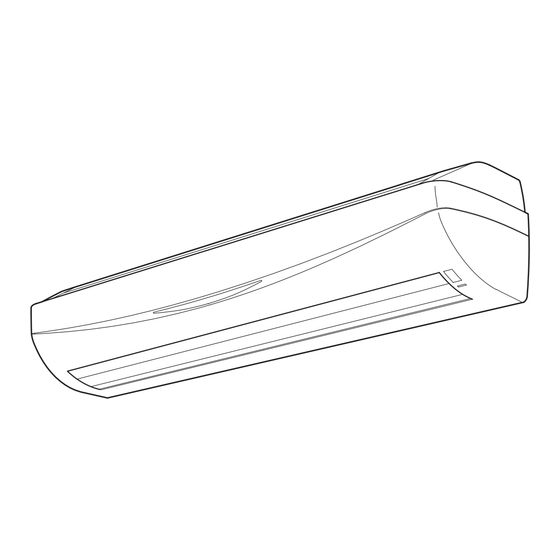

Fujitsu Halcyon AWU18CXQ Operating Manual

Wall mounted type
Hide thumbs

Advertisement

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor Unit
AWU18CXQ
AWU18RXQ
AWU24CXQ
AWU24RXQ
Outdoor Unit
AOU18CXQ
AOU18RXQ
AOU24CXQ
AOU24RXQ
KEEP THIS MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
OPERATING MANUAL
P/N9373459019

Advertisement

loading

  Also See for Fujitsu Halcyon AWU18CXQ

  Related Manuals for Fujitsu Halcyon AWU18CXQ

  Summary of Contents for Fujitsu Halcyon AWU18CXQ

  • Page 1: Wall Mounted Type

    OPERATING MANUAL ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor Unit AWU18CXQ AWU18RXQ AWU24CXQ AWU24RXQ Outdoor Unit AOU18CXQ AOU18RXQ AOU24CXQ AOU24RXQ KEEP THIS MANUAL FOR FUTURE REFERENCE FUJITSU GENERAL LIMITED P/N9373459019...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS .......... 1 ADJUSTING THE DIRECTION OF AIR CIRCULATION ..11 FEATURES AND FUNCTIONS ......... 2 SWING OPERATION ..........12 NAME OF PARTS ............3 CLEANING AND CARE ........13 PREPARATION ............5 CLEANING THE ELECTRONIC AIR CLEAN UNIT ..14 OPERATION ..............
  • Page 3: Features And Functions

    FEATURES AND FUNCTIONS WIRELESS REMOTE CONTROL UNIT AUTOMATIC OPERATION G COOLING MODEL The WIRELESS REMOTE CONTROL UNIT allows convenient control of air conditioner operation. Merely press the START/STOP button, and the unit will begin automatic operation in the Cooling or Dry mode as appropriate, in accordance with the thermostat setting OMNI-DIRECTIONAL AIR FLOW and the actual temperature of the room.
  • Page 4: Name Of Parts

    NAME OF PARTS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Fig. 1 Fig. 2 Fig. 3 Fig. 5 Fig. 4 Fig. 6 Fig. 8 Fig. 7...
  • Page 5 Fig. 1 Indoor Unit Fig. 6 Remote Control Unit 1 Operating Control Panel (Fig. 2) G AIR CLEAN button 2 MANUAL AUTO button H MASTER CONTROL button I SET TEMP./SET TIME buttons ( 3 Remote Control Signal Receiver J Signal Transmitter 4 Indicator Lamps (Fig.
  • Page 6: Preparation

    PREPARATION Load Batteries (R03/LR03 × × × × × 2) CAUTION! G Take care to prevent infants from accidentally swallowing batteries. Press and slide the battery compartment lid on the re- G When not using the remote control unit verse side to open it. for an extended period, remove the batteries to avoid possible leakage and Slide in the direction of the arrow while pressing the...
  • Page 7: Operation

    OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). To Select Mode Operation Press the START/STOP button (Fig. 6 M). The indoor unit’s OPERATION indicator lamp (green or red) (Fig. 3 5) will light. The air conditioner will start operating.
  • Page 8 OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). About Mode Operation AUTO: COOLING MODEL G When the room temperature is 4 °F higher than the set temperature, the mode will Cooling Operation switch between Cooling and Drying.
  • Page 9: Air Cleaning Operation

    AIR CLEANING OPERATION G Use this function to remove airborne impurities such as dust, tobacco smoke and pollen and clean the air of the room. G The air cleaning operation can be used alone or combined with cooling, heating (only heating model) and dry (dehumidify- ing) operations.
  • Page 10: Timer Operation

    TIMER OPERATION Before using the timer function, be sure that the Remote Control Unit is set to the correct current time (See page 5). To Use the ON timer or OFF timer To Cancel the Timer While the air conditioner is operating or stopped, press Use the TIMER button to select “TIMER the TIMER button (Fig.
  • Page 11: Manual Auto Operation

    TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Use the TIMER button to select “TIMER TIMER button (Fig.
  • Page 12: Adjusting The Direction Of Air Circulation

    ADJUSTING THE DIRECTION OF AIR CIRCULATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION HORIZONTAL SET button.
  • Page 13: Swing Operation

    SWING OPERATION Begin air conditioner operation before performing this procedure. To select Vertical airflow SWING Operation Press the AIR FLOW DIRECTION VERTICAL SWING button (Fig. 6 O). The SWING indicator lamp (VERTICAL SWING) (Fig. 3 7) will light. In this mode, the UP/DOWN air direction flaps will swing automatically to direct the air flow both up and down.
  • Page 14: Cleaning And Care

    CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the power supply. CAUTION! G Turn off the electrical breaker. G Be sure the intake filter (Fig. 4 9) is installed securely. G When removing and replacing the intake filters, be sure not to touch the heat exchanger, as personal injury may result.
  • Page 15: Cleaning The Electronic Air Clean Unit

    CLEANING THE ELECTRONIC AIR CLEAN UNIT Before cleaning the dust collection unit, be sure to turn off the power supply to the air conditioner. WARNING! Electric shock may result. G Make sure the dust collection unit is properly mounted before cleaning or performing other CAUTION! tasks on it.
  • Page 16 CLEANING THE ELECTRONIC AIR CLEAN UNIT Before cleaning the dust collection unit, be sure to turn off the power supply to the air conditioner. WARNING! Electric shock may result. G Make sure the dust collection unit is properly mounted before cleaning or performing other CAUTION! tasks on it.
  • Page 17: Selecting The Remote Control Unit Signal Code

    SELECTING THE REMOTE CONTROL UNIT SIGNAL CODE When two or more air conditioners are installed in a room and the remote control unit is operating an air conditioner other than the one you wish to set, change the signal code of the remote control unit to operate only the air conditioner you wish to set (four selections possible).
  • Page 18: Troubleshooting

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the elec- WARNING! trical breaker or disconnect the power supply plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.
  • Page 19: Operating Tips

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Symptom Items to check See Page CHECK ONCE Doesn’t operate at all: G Has there been a power failure? — MORE G Has a fuse blown out, or a circuit breaker been tripped? G Is the timer operating? 9 to 10 G Is the air filter dirty?
  • Page 20: Auto Restart

    OPERATING TIPS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). AUTO Restart In Event of Power Interruption G Should the power supply to the air conditioner be inter- G Use of other electrical appliances (electric shaver, etc.) or rupted by a power failure, the air conditioner will restart nearby use of a wireless radio transmitter may cause the automatically in the previously selected mode once the...
