Pullman Holt ES2000 Replacement Parts List

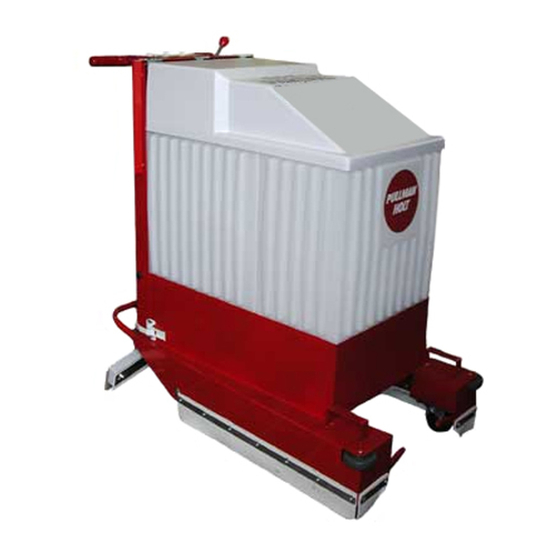

Automatic Scrubber
Model ES2000
Ref.
No. Part No. Description
1 B970553 Chassis
2 B525033 Clamp
3 B931288 Wheel Axle
4 B931668 Skirt Retainer (left or right)
5 B931670 Skirt (left or right)
6 B931253 Speed Nut
7 B932161 Bumper Wheel
8 B931300 Caster
9 B931284 Wheel Pin
10 B931732 Support Arm Boot
11 B931537 Support Arm
12 B931207 Skirt Front Retainer
13 B931615 Front Skirt
14 B932276 Spring
15 B931305 Elbow
16 B230206 6" Wheel
17 B931246 Hose Adaptor
18 B931261 Hose
19 B931517 Needle Valve
20 B931694 Solution Valve 115V
Ref.
No. Part No. Description
1 B205081 Motor Canopy
2 B930522 Canopy Spacer
3 B700895 3/4 HP Capacitor (not shown)
4 B527359 Capacitor Cover (not shown)
5A B700790 Drive Brush Motor - 115V
5B B700896 Drive Brush Motor - 220V
8 B700793 Gear Box
9 B931194 Mounting Plate
10 B931305 Elbow
11 B931286 Shoulder Bolt
12 B931244 Bushing
13 B931189 Motor Lift Link
14 B931662 Eccentric Nut
15 B931200 Motor Lift Yoke
16 B931186 Motor Pivot Yoke
17 B931209 Pedal Pad
18 B931191 Pedal Lift
19 B931275 Squeegee Trailing Arm
20 B931257 Spring
21 B932188 Bronze Washer
22 B931269 Squeegee Tension Arm
23 B931256 Tension Spring
24 B931287 Pivot Bolt
25 B980322 Tension Spring Clip
26 B931272 Pivot Yoke
27 B931315 Link
28 B931244 Bearing
29 B452004 Pad Drive Brush (not shown)
Replacement Parts List
Save For Future Reference

CHASSIS ASSEMBLY

Qty.
1
2
2
2
2
18
2
2
2
2
2
2
2
2
2
2
1
1
1
1
Brush Lift Mechanism
Qty.
1
1
1
1
1
1
1
1
1
3
7
1
3
1
1
1
1
1
2
2
1
1
1
1
1
1
1
