Dual Speed Floor Machine
Model DS-20
Ref.
No.
Part No.
Description
1
B600417
Motor Canopy
2
B700434
Lamp Red Neon
3
B600521
Motor Shield
4
B200033
1-1/2 HP Motor & Gearbox Assembly
5
B932661
Acorn Nut
6
B600691
Star Knob
8
B932079
Handle Clamp
9
B700957
Handle Adjustment Strut
10
B980079
Handle Tee
11
B700960
Carriage Bolt
12
B520614
Spring
13
B932648
Washer
14
B932160
Wheel
15
B700958
Wheel Axle
16
B932661
Acorn Nut
17
B932536
Handle Tee Shaft
18
B960536
20" Chassis
19A
B521609
Bumper Only
19B
B521607
Insert-Bumper
B200391
Chassis Assembly Complete
Not shown B452004
Drive Brush
Replacement Parts List
Save For Future Reference

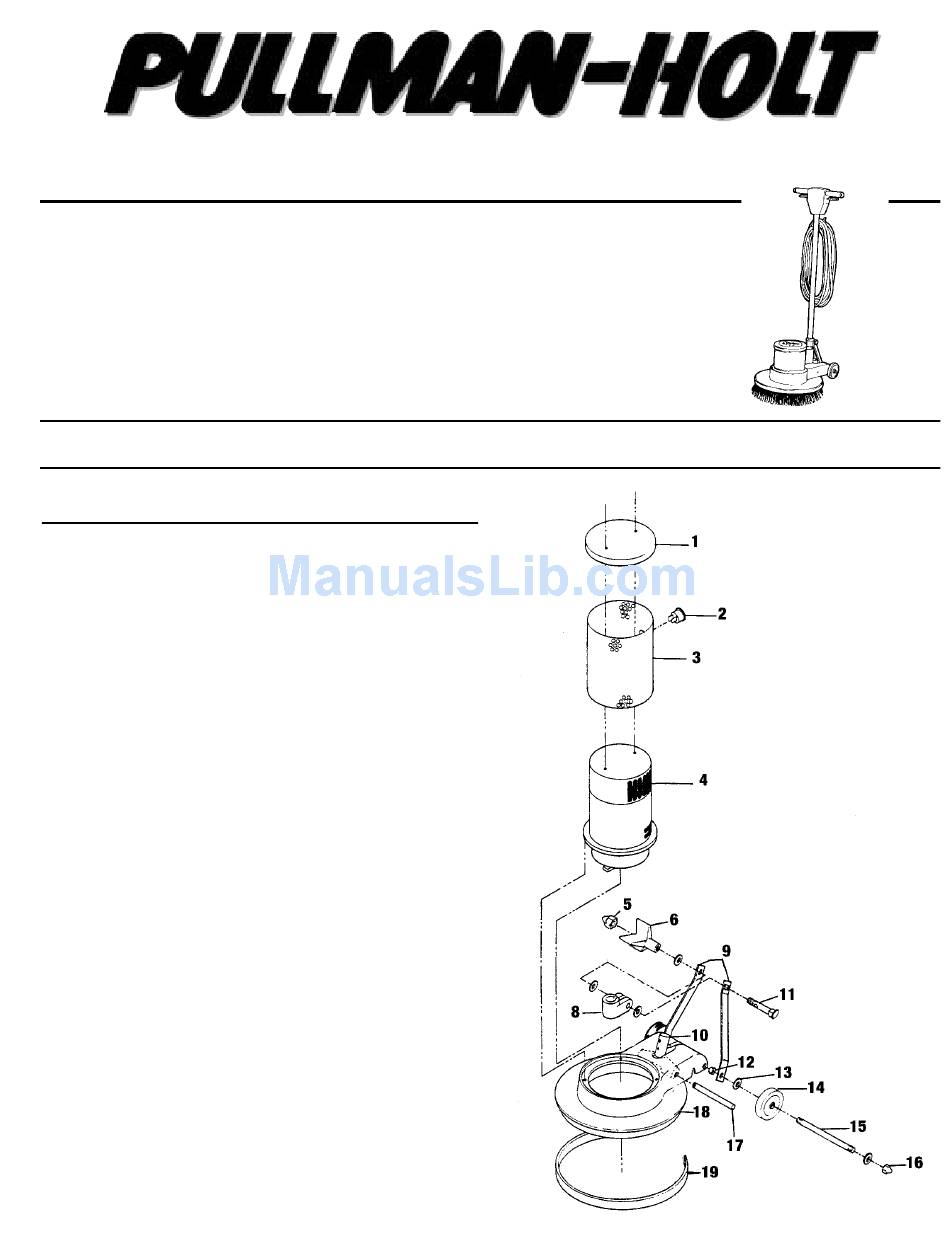

CHASSIS ASSEMBLY
Qty.
1
1
1
1
1
1
1
2
1
1
2
9
2
1
2
1
1
1
1
