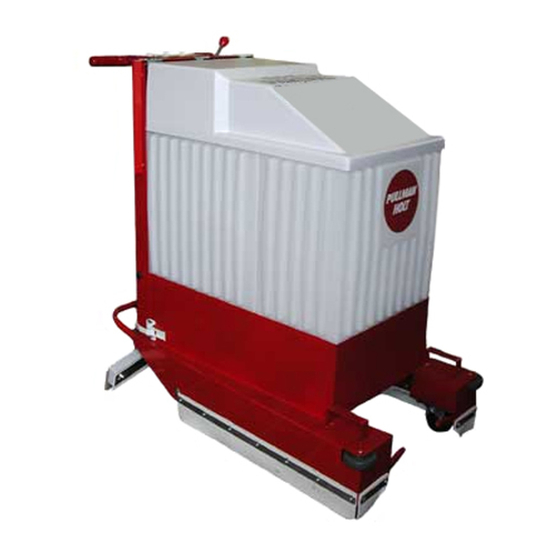

Pullman Holt ES2000 Operation & Care Instructions

Model ES2000
Automatic Scrubber
This electric scrubber is a high quality, precision made product. All
parts used in the manufacturing of this machine have passed rigid
quality control standards prior to assembly and an "each unit" final
inspection prior to packaging is your assurance of proper assembly.
This automatic scrubber was protectively packed to prevent possible
damage in transit. Should damage occur, please notify the trans-
porting carrier immediately for loss and/or claim.
IMPORTANT SAFEGUARDS
MOTOR:
This electric scrubber is powered by a 3/4 HP brush motor and a 1
HP by-pass vacuum motor and will operate on 115V/60HZ only. Be
sure your power supply agrees with a voltage marked on the name-
plate. Voltage decreases of more than 10% will cause the motor to
slow down, thus increasing the current draw and opening the circuit
breaker.
WARNING
RISK OF FIRE: Do not use with a flammable or combustible
liquid to clean a floor.
EXTENSION CORDS:
Machines that have 3-wire cords requiring grounding must only be
used with extension cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required, refer to the chart
below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate Total Extension Cord Length (Feet)
Rating-Amps 25 50
0-10.0 18 18
10.1-13.0 16 16
13.1-15.0 12 12
Before using an extension cord, inspect it for loose or exposed wires,
damaged insulation and defective fitting.
CAUTION
Always disconnect power cable from electrical outlet when
working on this machine.
Operation & Care Instructions
Save For Future Reference
75 100 125 150 175 200
16 16 14 14 12
14 14 14 12 12
12 12 12 12 12

GROUNDING INSTRUCTIONS

This electric scrubber must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This appliance is equipped
with a cord having equipment grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is prop-
erly installed and grounded in accordance with all local codes and ordi-
nances.
Improper connection of the equipment grounding conductor can
result in a risk of electric shock. Check with a qualified electrician
or service person if you are in doubt as to whether the outlet is
properly grounded.
Do not modify the plug provided with the appliance – if it will not
fit the outlet, have a proper outlet installed by a qualified electrician.
12
12
This appliance is for use on a nominal 120- Volt circuit, and has a
–
grounded plug that looks like the plug illustrated in sketch A below.
A temporary adapter that looks like the adapter illustrated in sketch-
es B and C may be used to connect this plug to a 2-pole receptacle
as shown in sketch B if a properly grounded receptacle is not avail-
able. The temporary adapter should be used only until a properly
grounded outlet (sketch A) can be installed by a qualified electrician.
The green colored ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be
held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by
the Canadian Electrical Code.
WARNING
