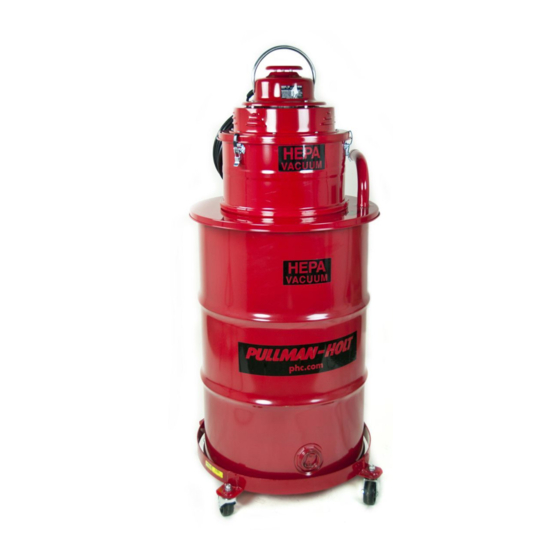

Big Red Drum Vacuum
Big Red HEPA Drum Vacuum
This vacuum cleaner is a high quality, precision made
product. All parts used in the manufacturing of this
vacuum cleaner have passed rigid quality control
standards prior to assembly and an "each unit" fi nal
inspection prior to packaging is your assurance of
proper assembly. This vacuum cleaner was protectively
packed to prevent possible damage in transit. Should
damage occur, please notify the transporting carrier
immediately for loss and/or claim.
MOTOR:
The suction head of this vacuum cleaner is
equipped with a 2 stage, 11.1 amp, 2HP by-pass
motor, developing 105" waterlift and 110 CFM.
When removing the motor head, care in handling
is essential. Dropping, banging or other abuse
may result in poor vacuum seal and a loss in
suction power and will invalidate your warranty.
Operation & Care Instructions
Save For Future Reference

IMPORTANT SAFEGUARDS

EXTENSION CORDS:
Machines that have 3 wire cords requiring
grounding must only be used with extension
cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required,
refer to the chart below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate
Total Extension Cord Length (Feet)
Rating-Amps
25
50
75
0-10.0
18
18
16
10.1-13.0
16
16
14
13.1-15.0
12
12
12
Before using an extension cord, inspect it for
loose or exposed wires, damaged insulation and
defective fi tting.
CAUTION
Always disconnect power cable from outlet
when working on this vacuum.
100
125
150
175
200
16
14
14
12
12
14
14
12
12
12
12
12
12
12
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Big Red Drum and is the answer not in the manual?

Questions and answers

Summary of Contents for Pullman Holt Big Red Drum

  • Page 1: Important Safeguards

    Operation & Care Instructions Save For Future Reference Big Red Drum Vacuum Big Red HEPA Drum Vacuum This vacuum cleaner is a high quality, precision made product. All parts used in the manufacturing of this vacuum cleaner have passed rigid quality control standards prior to assembly and an ”each unit”...
  • Page 2: Important Safety

    IMPORTANT SAFETY IMPORTANTES MESURES INSTRUCTIONS DE SÉCURITÉ When using an electrical appliance, basic precaution should always be L’utilisation d’un appareil électrique demande certaines précautions: followed, including the following: LIRE TOUTES LES INSTRUCTIONS AVANT READ ALL INSTRUCTIONS DE FAIRE FONCTIONNER CET APPAREIL BEFORE USING THIS VACUUM CLEANER AVERTISSEMENT: WARNING...
  • Page 3 GROUNDING INSTRUCTIONS VISANT INSTRUCTIONS LA MISE Á LA TERRE Cet appareil doit étre mis à la terre. En cas de défaillance ou de panne This appliance must be grounded. If it should malfunction or breakdown, éventuelles, la mise à la terre fournit au courant un chemin de moindre grounding provides a path of least resistance for electric current to résistance qui réduit le risque de choc électrique.
  • Page 4 BIG RED Drum Vacuum For Wet Operation: For Dry Operation: 102 Head 102 Head Wet Pan Air Filter Assembly Drum Adapter Gasket Drum Adapter Gasket 55 Gallon Drum (included) 55 Gallon Drum (included) Dolly (included) Dolly (included) With the water pickp-up pan and motor head in place, With the Air Filter Assembly and motor head in place, secure vacuum is ready for wet use.
  • Page 5 BIG RED HEPA Drum Vacuum For Wet Operation: For Dry Operation: 102 Head 102 Head HEPA Filter HEPA Filter Spacer Drum Adapter Gasket Wet Pan 55 Gallon Drum Drum Adapter (included) Gasket 55 Gallon Drum (included) Dolly (included ) Dolly (included) With HEPA fi...
  • Page 6: Limited Warranty

    LIMITED WARRANTY The vacuum cleaner is warranted for 1 year from the date of purchase as invalidated by improper application and abuse. shown on your distributor’s invoice. Parts not covered under warranty are In NO circumstance should you return a failed unit to the factory. If you power cords, fi...
