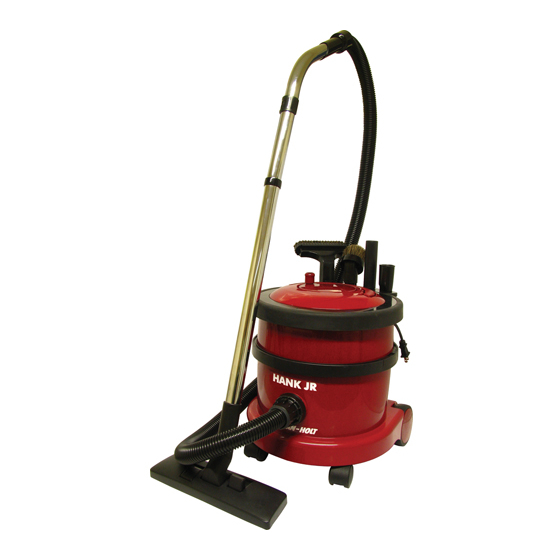

Model Hank Jr.
1200W Commercial Canister Vacuum
This vacuum cleaner is a high quality, precision made
product. All parts used in the manufacturing of this
vacuum cleaner have passed rigid quality control
standards prior to assembly and an "each unit" fi nal
inspection prior to packaging is your assurance of
proper assembly. This vacuum cleaner was protectively
packaged to prevent possible damage in transit. Should
damage occur, please notify the transporting carrier
immediately for loss and\or claim.
TO CONNECT THE HOSE
Screw hose onto the hose connector at the front of
the machine.
ATTACHING TOOLS
The extension wands, handle and tools all push
together with a fi rm twisting motion. Tools can also
be used with the tool adaptor to attach them directly
to the end of the hose.
AIR SLIDE CONTROL
You can reduce and adjust the suction for delicate
fabrics by moving the air slide to open on the hand
grip. For maximum suction the air slide control should
be closed at all times.
CABLE REWIND
Always pull out the cable in full before using the
machine. To rewind the cable turn the rewind knob
in a clockwise direction. Avoid kinking of the cable
during rewinding. Do not use excessive force when
winding or unwinding the cable.
LID LOCKS
The top of the machine can be removed by sliding out
the two side locks. This gives access to the fi lter and
dust bag.
Operation & Care Instructions
Save For Future Reference
ABOUT THE MACHINE
STORAGE
Coil cord in a large loop and insert under handle for
storage. Grasp the plug when unplugging from wall.
Do not pull the cord.
FILTER
Check fi lter regularly and brush clean when necessary.
CAUTION
Do not use the machine without dust bag and
fi lter in place as damage to your cleaner motor
unit will occur.
CAUTION
This vacuum should be used for dry pick-up
only. DO NOT use to pick up water or other
luquids.
CAUTION
Never lubricate the vacuum cleaner motor. The
motor bearings are permanently sealed. This
vacuum is intended for indoor use only and it is
not intended to be exposed to rain.

Advertisement

loading

  Related Manuals for Pullman Holt Hank Jr

  Summary of Contents for Pullman Holt Hank Jr

  • Page 1 Operation & Care Instructions Save For Future Reference Model Hank Jr. 1200W Commercial Canister Vacuum This vacuum cleaner is a high quality, precision made product. All parts used in the manufacturing of this vacuum cleaner have passed rigid quality control standards prior to assembly and an “each unit”...

  • Page 2: Contents And Specifications

    CONTENTS AND SPECIFICATIONS VACUUM CLEANER 1200W twin fan sealed motor unit 4 gallon dust capacity 40 foot rewindable main cable 4 holder tool caddy Single on/off switch Recessed carry handle Protective rubber bumper Multi-swivel caster wheels 6 FOOT HOSE: Lightweight and fl exible with swivel connectors. CHROME STEEL EXTENSION AND CURVED WANDS: For durability.
  • Page 3 SPARES, CONSUMABLES AND ACCESSORIES These spare parts are available from vacuum cleaner spare parts retailers and the internet. Crevice Tool Tool Adapter Dusting Brush B100611 B100609 B100610 6 Foot Hose Upholstery Tool Extension Wands & B100502 B100612 Curved Wand Floor Tool Rear Wheel Assembly Caster Wheel B160632...
  • Page 4 STAIR AND EXTENDED REACH CLEANING Introducing two new useful accessories now available. OPTIONAL EXTRA EXTENDIBLE GENERAL PURPOSE VACUUM CLEANER HOSES Ideal for stairs and wide area cleaning. OPTION 1 OPTION 2 Complete replacement hose with fi tted Hose extension with adapter tool. machine-and-tool-end connections.

  • Page 5: Maintenance

    MAINTENANCE Familiarize yourself with these easy maintenance tasks as proper use and care of your cleaner will ensure continued best cleaning effectiveness. WARNING: Do not use the machine without dust bag and fi lter in place as damage to your cleaner motor unit will occur FILTER BAG Check bag from time to time.

  • Page 6: Important Safety

    IMPORTANT SAFETY IMPORTANTES MESURES INSTRUCTIONS DE SÉCURITÉ When using an electrical appliance, basic precaution should always be L’utilisation d’un appareil électrique demande certaines précautions: followed, including the following: LIRE TOUTES LES INSTRUCTIONS AVANT READ ALL INSTRUCTIONS DE FAIRE FONCTIONNER CET APPAREIL BEFORE USING THIS VACUUM CLEANER AVERTISSEMENT: WARNING...

  • Page 7: Grounding Instructions

    GROUNDING INSTRUCTIONS VISANT INSTRUCTIONS LA MISE Á LA TERRE Cet appareil doit étre mis à la terre. En cas de défaillance ou de panne This appliance must be grounded. If it should malfunction or breakdown, éventuelles, la mise à la terre fournit au courant un chemin de moindre grounding provides a path of least resistance for electric current to résistance qui réduit le risque de choc électrique.

  • Page 8: Limited Warranty

    LIMITED WARRANTY The vacuum cleaner is warrantied for 1 year from the date of purchase as In NO circumstance should you return a failed unit to the factory. If you shown on your distributor’s invoice. Parts not covered under warranty are experience any problems with your vacuum during the warranty period, power cords, fi...
