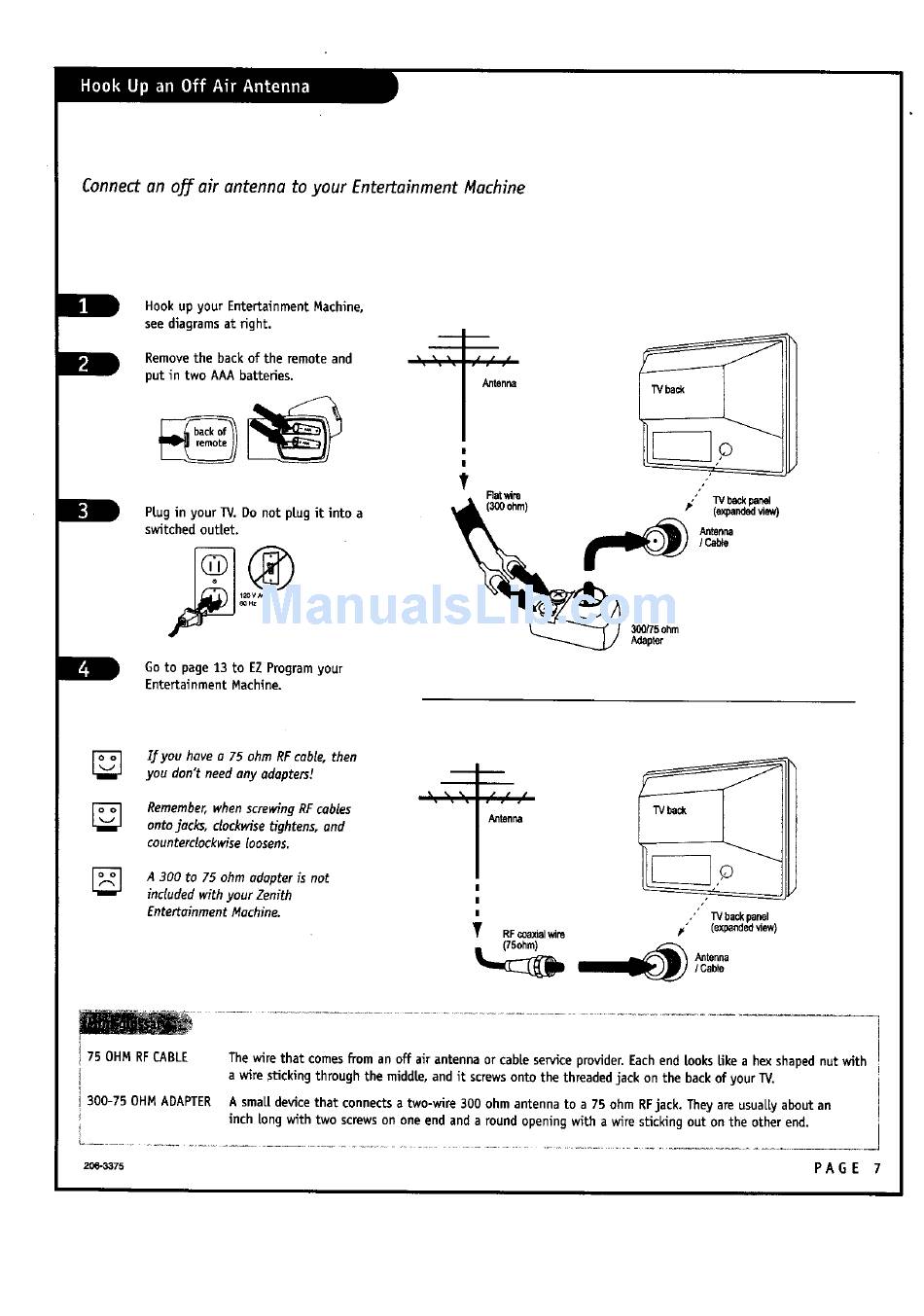

Connectan oN air antenna toyour Entertainment M achine
Hook up yourEntertainment
Machine,
seediagrams at fight.
Remove thebackoftheremoteand
putintwo AAA batteries.
Ptugin your TV. Do not ptugit into a
switched outlet.
Go to page13 to EZ Program your
Entertainment
Machine.
Antenna
Rat _re
""
TV
(3_) ohm)
•
(expanded view)
300/75 ohm
_
Adapter
If you have a 75 ohm RFcable, then
you don't need any adapters!
Remember, w henscrewing RFcables
ontojacks, clockwisetightens, and
counterclockwise loosens.
[]
A 300 to 75 ohm adapter isnot
included w ith yourZenith
Entertainment
Machine.
.P (
.(
Antenna
,' TV back panel
F
(expandedview)
Antenna
/ Cable
75 OHM RFCABLE
I
1
i 300-75 OHM ADAPTER
The wire that comesfrom an off air antenna or cable serviceprovider.Eachend [oakslike a hex shapednut with
a wire sucking through the middte, andit screws onto the threadedjack on the backof yourTV.
A smaL[ d evicethat connectsa two-wire 300 ohm antennato a 75 ohm RFjack. They are usuaLlyabout an
inch tongwith two screwson one end and a round opening with a wire stickingout on the other end.
2o_75
