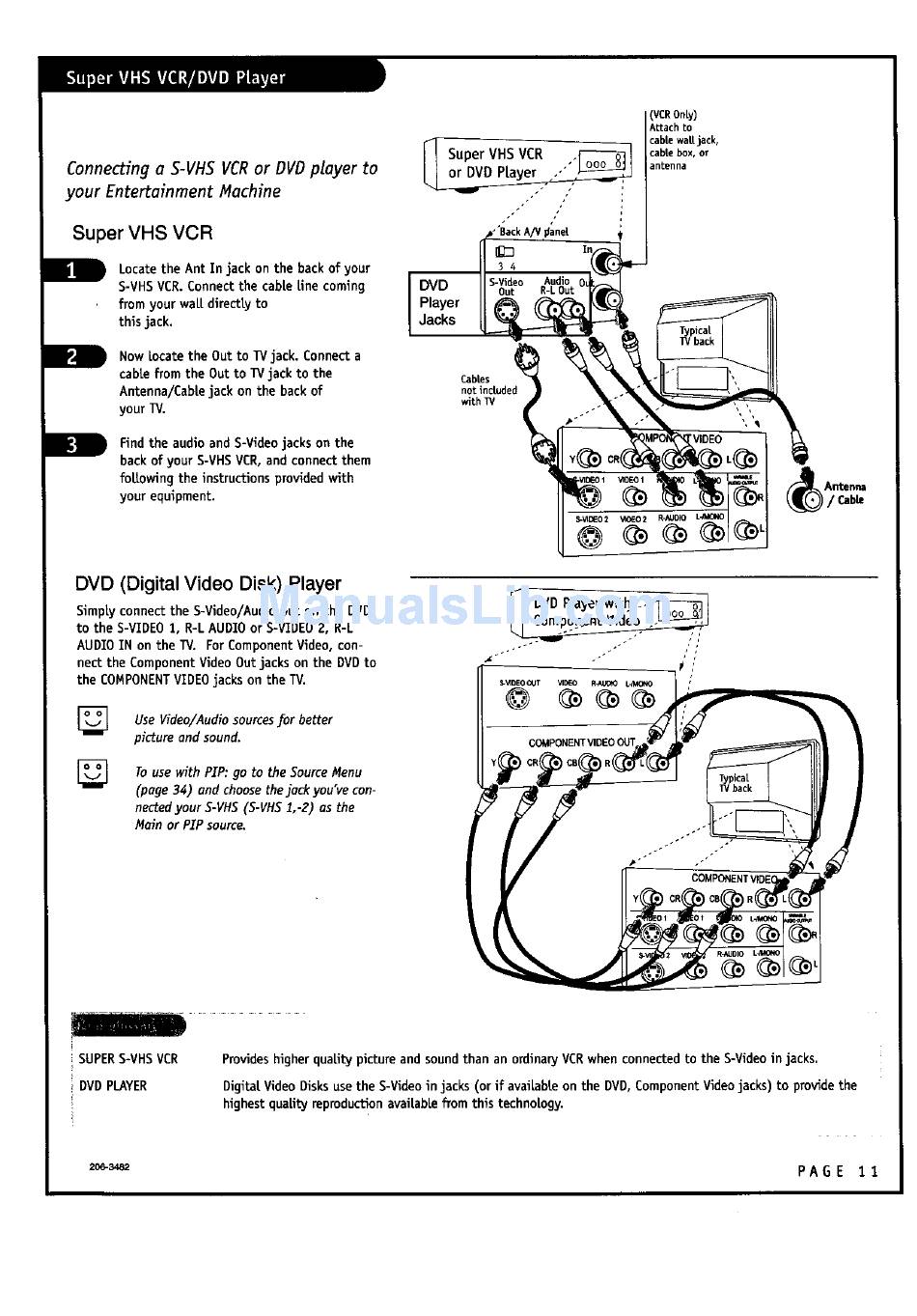

Connecting a S-VHS VCR or DVD player to
your Entertainment Machine
Super VHS VCR
mmm
Locatethe Ant In jack on the back of your
S-VHSVCR.Connectthe cable Une coming
from your waLL directty to
this jack.
D
Now locate t heOut toIV jack. Connect a
cabte from theOutto l_/jack to the
Antenna/Cable jackon thebackof
your_.
B
Findtheaudioand S-Video j acks on the
backofyourS-VHSVCR,and connect them
fo[towing theinstructions
provided w ith
yourequipment.
DVD (Digital Video Disk) Player
Simply connect theS-Video/Audio outon the DVD
totheS-VIDEO1,R-LAUDIO orS-VIDEO 2, R-L
AUDIO IN on theTV. ForComponentVideo, con-
necttheComponent VideoOutjacks on theDVD to
theCOMPONENT VIDEOjacks on theTV.
[]
©
Use Video/Audio sources forbetter
picture a ndsound.
Touse with PIP: go to the Source Menu
(page 34) and choosethe jack you've con-
nected your S-VHS(5-VHS1,-2) as the
Main or PIP source.
(VCROnLy)
Attach to
cable waUjack,
cable box, or
antenna
DVD
Player
Jacks
Cables
notinc_ded
wlth_
VIDEO
DVD PLayer width---_
1
SUPER S-VHSVCR
DVD PLAYER
Provides higherquality picture andsoundthan an ordinary VCRwhen connectedto the S-Videoin jacks.
Digital.Video Disks use the S-Videoin jacks (or if available on the DMD,ComponentVideojacks) to provide the
highest quaLityreproduction avaiLabLe from this techno[ogy.
2_
PAGE
11
