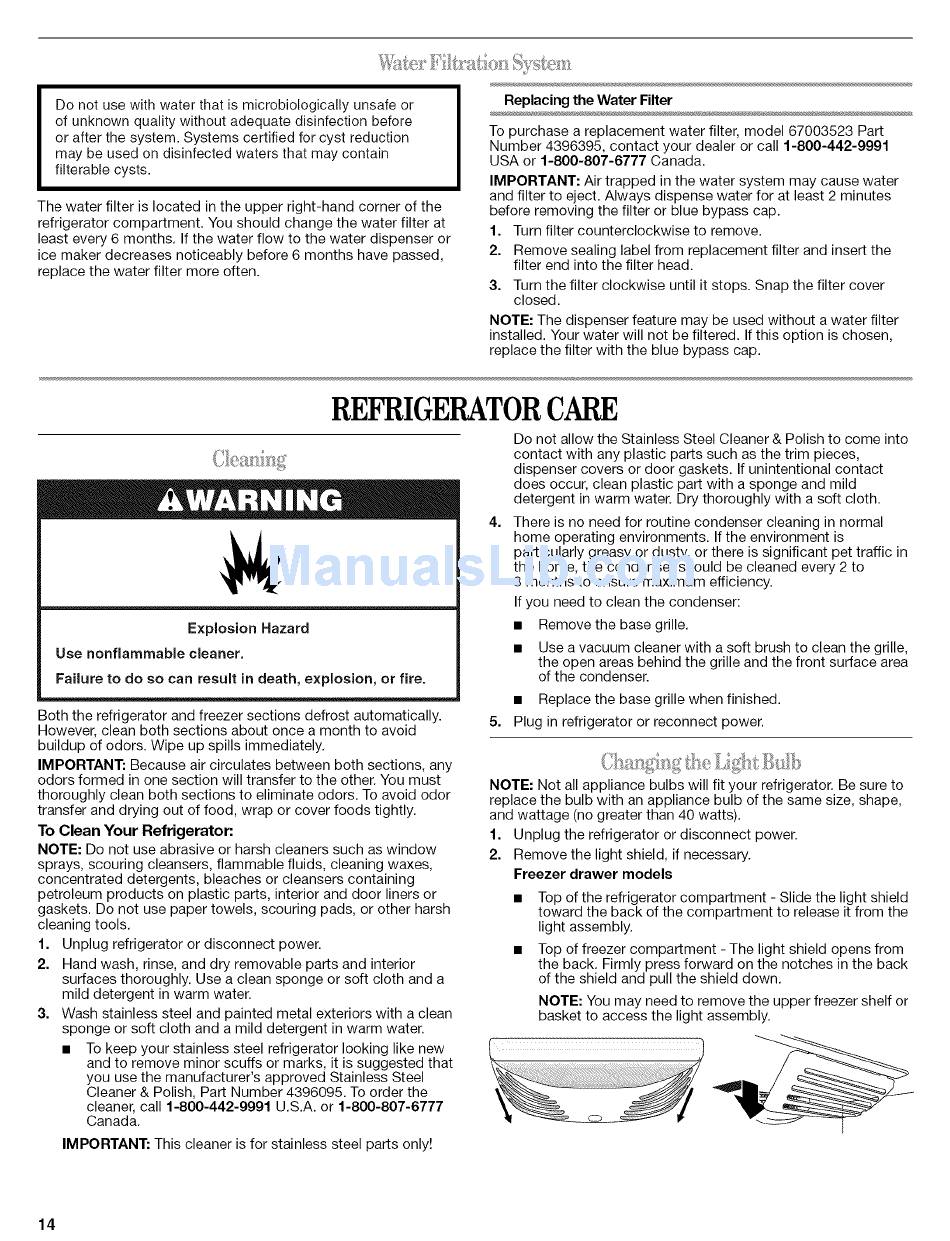

Water Filtration System; Refrigerator Care; Changing Light Bulb - Whirlpool GB9SHDXPQ02 User Instructions

Hide thumbs

Advertisement

Do not use with water that is microbiologically
unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
The water filter is located in the upper right-hand corner of the
refrigerator compartment.
You should change the water filter at
least every 6 months. If the water flow to the water dispenser or
ice maker decreases noticeably before 6 months have passed,
replace the water filter more often.
Replacing the Water Filter
To purchase a replacement water filter, model 67003523 Part
Number 4396395, contact your dealer or call 1-800-442-9991
USA or 1-800-807-6777
Canada.
IMPORTANT:
Air trapped in the water system may cause water
and filter to eject. Always dispense water for at least 2 minutes
before removing the filter or blue bypass cap.
1. Turn filter counterclockwise
to remove.
2. Remove sealing label from replacement filter and insert the
filter end into the filter head.
3. Turn the filter clockwise until it stops. Snap the filter cover
closed.
NOTE: The dispenser feature may be used without a water filter
installed. Your water will not be filtered. If this option is chosen,
replace the filter with the blue bypass cap.
REFRIGERATOR C ARE
Explosion Hazard
Use nonflammable
cleaner.
Failure to do so can result in death, explosion,
or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated
detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
3. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
To keep your stainless steel refrigerator looking like new
and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel
Cleaner & Polish, Part Number 4396095. To order the
cleaner, call 1-800-442-9991
U.S.A. or 1-800-807-6777
Canada.
4=
5=
Do not allow the Stainless Steel Cleaner & Polish to come into
contact with any plastic parts such as the trim pieces,
dispenser covers or door gaskets. If unintentional contact
does occur, clean plastic part with a sponge and mild
detergent in warm water. Dry thoroughly with a soft cloth.
There is no need for routine condenser cleaning in normal
home operating environments.
If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
Removethe
base grille.
Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
Replace the base grille when finished.
Plug in refrigerator or reconnect power.
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with an appliance bulb of the same size, shape,
and wattage (no greater than 40 watts).
1. Unplug the refrigerator or disconnect power.
2. Remove the light shield, if necessary.
Freezer drawer
models
Top of the refrigerator compartment
- Slide the light shield
toward the back of the compartment to release it from the
light assembly.
Top of freezer compartment
- The light shield opens from
the back. Firmly press forward on the notches in the back
of the shield and pull the shield down.
NOTE: You may need to remove the upper freezer shelf or
basket to access the light assembly.
IMPORTANT: This cleaner is for stainless steel parts only!
14
