- Page 1 CABINET PARTS REFRIGERATOR For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Part No. 8199126 8−04 Litho In U.S.A. (kdr)
-

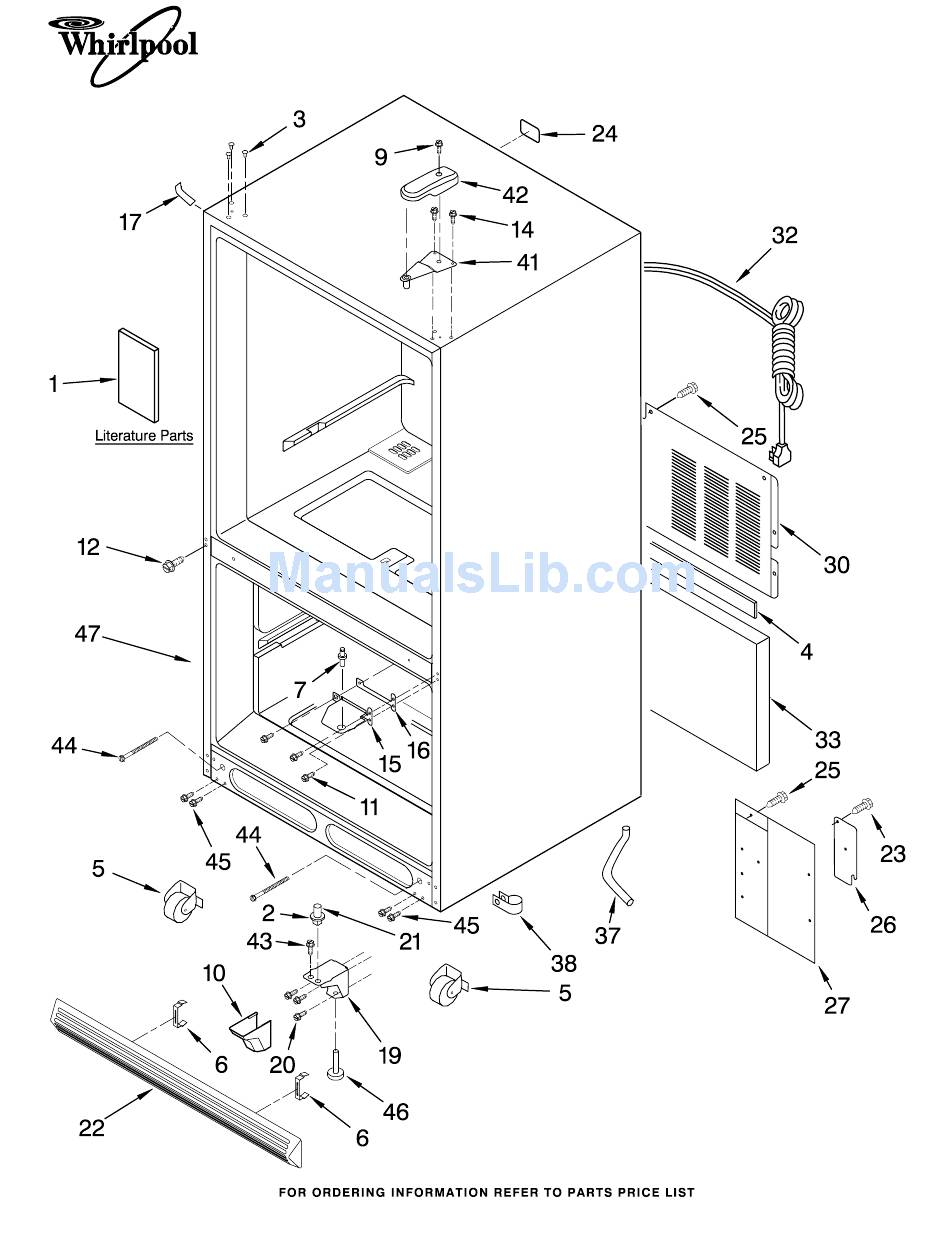

Page 2: Cabinet Parts
8170886 Roller Assembly 8170869 Clip, Grille 4344177 Pin, Center Hinge 8171215 Screw Hinge Cover, Bottom 8171004 White 8171002 Black 4344186 Screw CABINET PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION 8170373 Screw 4344198 Screw Hinge, Center 8170980 Black... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) 8199126... - Page 4 FREEZER LINER PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 8170897 Gasket, Foam 8170847 Cover, Control 8170839 Light Socket 4343660 Light Bulb 8170838 Housing, Frz. Light 8171006 Cover, Evaporator 4344167 Screw 8170848 Housing, Light 8171238 Clip, Evap.
-
Page 5: Freezer Door Parts
Insulation) 8170960 White 8171260 Stainless Steel Handle 8170990 White 8170963 Black 8170988 Basket, Freezer 8170829 Endcap (Left) 8199126 FREEZER DOOR PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION Door Gasket, Magnetic 8171262 White 8171261 Black 8170830 Endcap (Right) -
Page 6: Refrigerator Liner Parts
Part DESCRIPTION Liner (Not A Serviceable Part) 8171026 Housing, Ref. Light 8170833 Overlay 4344571 Light Switch 8170832 Cover, Ref. Light For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION 8170834 Housing, Timer 8170835 Knob, Damper 8170836 Knob, Gear 8170837 Gear, Belt... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) 8199126... - Page 8 REFRIGERATOR DOOR PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) Illus. Part DESCRIPTION Refrigerator Door Panel (Includes Insulation) 8170959 White 8171258 Stainless Steel 8171204 Door, Compartment 8170793 Tray, Dairy 8171166 Shelf Bin (Medium) Plug, Handle Hole 4344535 White 4344533 Black Door Gasket,...
-
Page 9: Unit Parts
UNIT PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) 8199126... - Page 10 8170912 Grommet (7) 8170462 Capacitor 8171255 Condenser 8171005 Tray, Drip 8171161 Evaporator 8170891 Right Side 8170890 Left Side 8170704 Motor, Fan UNIT PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION 4343918 Clip, Heater 8171241 Harness, Unit 4344268 Drier...
-
Page 11: Shelf Parts
8199126 SHELF PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION 4344093 Roller 8170799 Rack, Wine 8170926 Pan, Ice 8171000 Shelf, Frz. Wire 8171259 Basket, Freezer 8170874 Handle, Basket 8170555 Seal, Front Crisper 8170880 Rack, Ice Tray 8170754 Meat Pan... -
Page 12: Optional Parts
72032 Brush Touch−up kit (Black) Important: The spray paint is not to be used where the paint may make contact with the door gaskets. OPTIONAL PARTS For Models: GB9SHKXMQ00, GB9SHKRMS00 (White) (Stainless Steel) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum...
