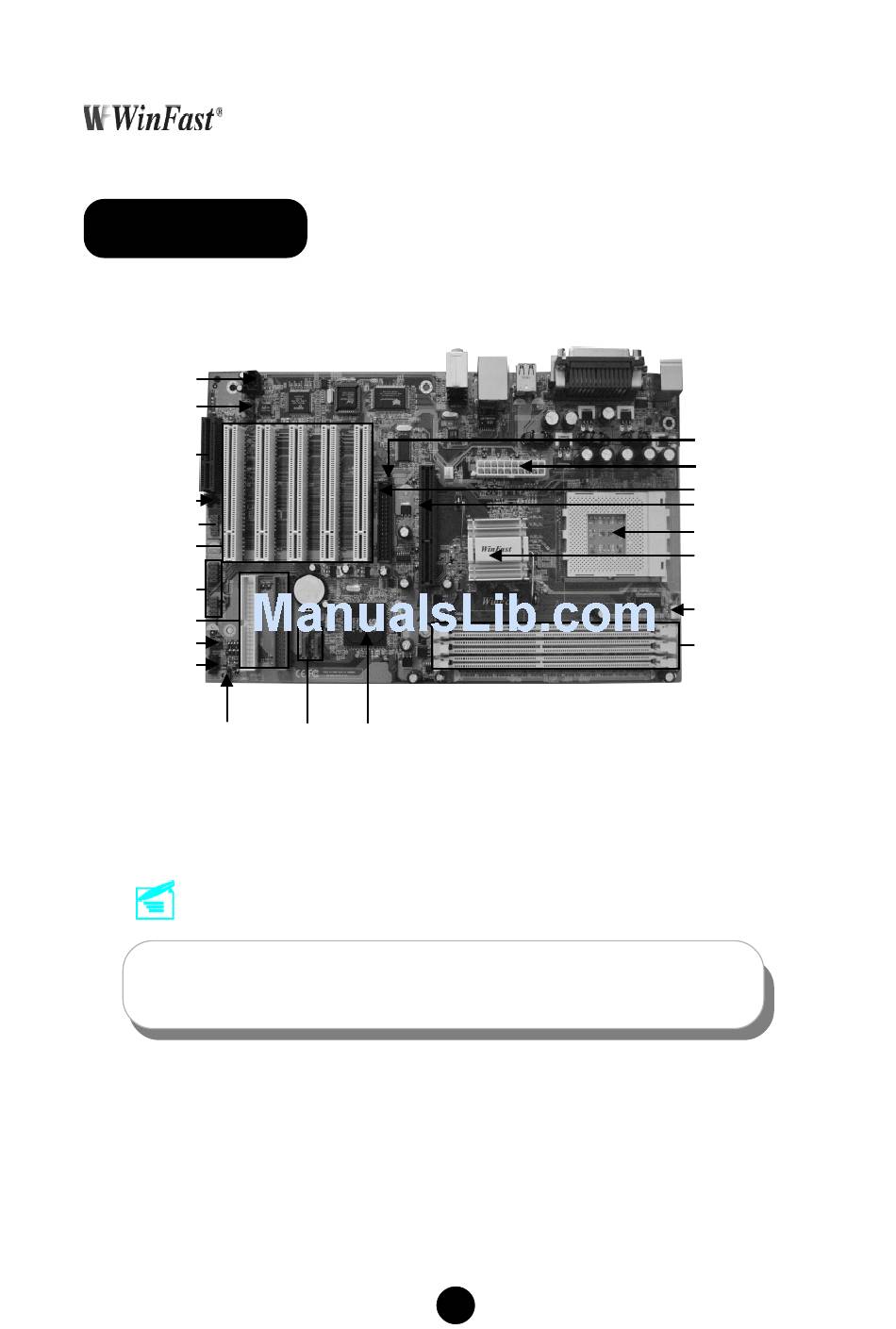

748K7AA Layout
CD_IN Connector
Front Audio
Connector
CNR Slot (optional)
CNR AudioSelection
Jumper (optional)
1394 Connector
(optional)
PCI Expansion Slots
USB2.0 Connector
ATA 66/100/133
IDE Connectors
Speaker Connector
Front Panel
Connector
Clear CMOS Jumper
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
Easy Installation Guide
SATA
SiS 964/964L
Connector
Chipset
(optional)
P/N: 91-185-U48-A0-0E
1
FSB100MHz CPU
Selection Jumper
ATX Power Connector
FDD Connector
8X AGP Slot
462-pin CPU Socket
SiS 748 Chipset
CPU FAN Connector
184-pin DIMM Slots

Advertisement

loading
Need help?

Need help?

Do you have a question about the WinFast 748K7AA and is the answer not in the manual?

Questions and answers

Summary of Contents for Foxconn WinFast 748K7AA

  • Page 1 Easy Installation Guide 748K7AA Layout CD_IN Connector Front Audio Connector FSB100MHz CPU Selection Jumper CNR Slot (optional) ATX Power Connector CNR AudioSelection FDD Connector Jumper (optional) 8X AGP Slot 1394 Connector (optional) 462-pin CPU Socket PCI Expansion Slots SiS 748 Chipset USB2.0 Connector CPU FAN Connector ATA 66/100/133...
  • Page 2: Rear Panel

    Rear Panel 748K7AA Parallel Port LAN Connector (Printer Port) Line-in jack PS/2 Mouse Connector Line-out jack PS/2 Keyboard Microphone Connector jack Serial Port S/PDIF 1394 USB 2.0 (COM1) Coaxial Out Port Ports Port PS/2 Mouse Connector This green 6-pin connector is for a PS/2 mouse. PS/2 Keyboard Connector This purple 6-pin connector is for a PS/2 keyboard.
  • Page 3: Accessory Checklist

    Accessory Checklist 748K7AA Motherboard (x1) WinFast Utility CD (x1) Easy Installation Guide (x1) IDE Ribbon Cable (x1) FDD Ribbon Cable (x1) I/O Shield (x1) S-ATA Signal Cable (x2) (optional) S-ATA Power Cable (x1) (optional) SiS 964 RAID Floppy Disk (x1) (optional) 1.
  • Page 4 2. Clear CMOS Jumper: CLS_CMOS You can clear CMOS to restore default system setting. To clear the CMOS, follow the procedures described below. 1. Turn off the AC power supply and connect pin 1 and 2 together using the jumper cap .
  • Page 5 4. CNR Audio Selection Jumper (optional): J9 This jumper is used to set enable or disable CNR audio function. The default state for J9 is set to disable (Pin1 & Pin2 together), then you cannot use the CNR audio and onboard audio is avaliable. If you want to use CNR audio function, set J9 to enable (Pin2 &...
  • Page 6 6. CPU_FAN & FAN1 Plug the CPU cooling fan cable into the 3-pin CPU_FAN power supply on the mainboard. Connect the case cooling fan connector to FAN1. FAN1 CPU_FAN 7. 1394 Header (optional): F_1394 The 1394 expansion cable can be connected to either the front (provided that the front panel of your chassis is equipped with the appropriate interface) or rear panel of the chassis.
  • Page 7 8. USB Header: F_USB1, F_USB2 The USB header is available for additional USB port if the USB ports on the rear panel are inadequate. Compared to traditional USB 1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps, which allows faster Internet connection, interactive gaming, and simutaneous running of high-speed peripherals.
  • Page 8: Speaker Connector: Speaker

    10. Front Audio Connector: F_AUDIO The audio interface provides two kinds of audio output choices: the Front Audio, the Rear Audio. Their priority is sequenced from high to low (Front Audio to Rear Audio). If headphones are plugged into the front panel of the chassis (using the Front Audio), then the Line-out (Rear Audio) on the rear panel will not work.
  • Page 9 12. 5.1 Channel Audio Effects The motherboard is equipped with the Realtek ALC655 chip, which provides sup- port for 6-Channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer channel. ALC655 allows the board to attach 4 or 6 speakers for a better surround sound effect.
  • Page 10 14. WinFast Utility CD This motherboard comes with one Utility CD. To begin using the CD, simply insert the CD disc into the CD-ROM drive. The CD will automatically bring up the main menu screen. Click “Install Driver”, then click the relevant button to install IDE Driver, AGP Driver, DirectX 9.0b, USB2.0 Driver, Audio Driver and LAN Driver from this CD.
