Page 1: Users Manual
VT02 Visual IR Thermometer Users Manual October 2012 © 2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. - Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ................1 How to Contact Fluke ..............2 Safety Information ..............2 Before You Start ................ 4 Power On and Off ..............5 Features and Controls ..............6 Focus ..................7 ... - Page 4 VT02 Users Manual...
- Page 5 List of Tables Table Title Page Symbols ..................3 Packing List ................4 Features ..................6 Menu Icons ................10 ...
- Page 6 VT02 Users Manual...
- Page 7 List of Figures Figure Title Page Start-Up Screen and Power Indicator ........5 Blend Options ................7 SD Card Warning Icons ............. 8 Menu Navigation and Battery Icon ..........9 Parameter Adjustment ............... 10 Battery Replacement ..............17 ...
- Page 8 VT02 Users Manual...
-
Page 9: Introduction

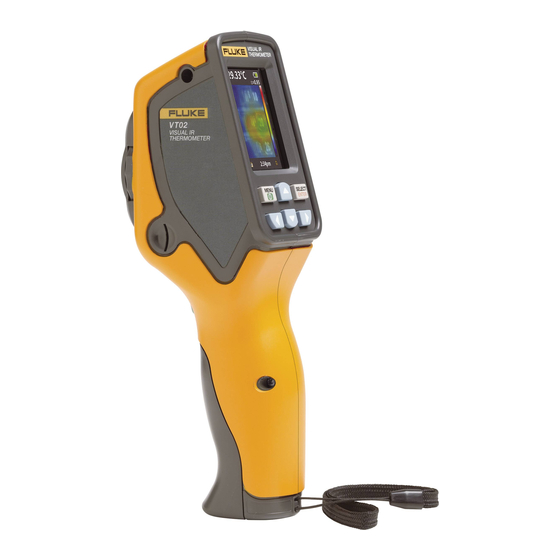

Introduction The VT02 (the Product) is a Visual IR Thermometer that combines surface temperature measurement together with a real-time thermal image. The thermal image removes the time necessary for component-by-component measurement associated with traditional spot radiometers. Potential issues are clearly shown on the color LCD display to help the user quickly and accurately position the center-point measurement cursor and measure the temperature. -
Page 10: How To Contact Fluke
Visual IR Thermometer How to Contact Fluke How to Contact Fluke To contact Fluke, use one of these telephone numbers: USA: 1-800-760-4523 Canada: 1-800-36-FLUKE (1-800-363-5853) Europe: +31 402-675-200 Japan: +81-3-6714-3114 Singapore: +65-6799-5566 Anywhere in the world: +1-425-446-5500 Or, visit Fluke's website at www.fluke.com. - Page 11 Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 “Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke's website for recycling information.
-
Page 12: Before You Start
SmartView Software on CD-ROM 2814474 [1] Fluke recommends the SD memory card that is supplied with the Product. Fluke does not warrant the use or reliability of aftermarket SD memory cards of different brands or capacities. [2] See the CD-ROM for additional languages. To request a printed Quick Reference Card in a language not supplied with your product, email Fluke at TPubs@fluke.com. -
Page 13: Power On And Off
VT02 Users Manual Power On and Off To turn on the Product, push and hold E for 2 seconds. A start-up screen shows on the display and an indicator bar shows the status, see Figure 1. The indication bar increases on power up and decreases on power down. After the start-up screen, the Product is ready to use. -
Page 14: Features And Controls
Visual IR Thermometer Features and Controls Features and Controls Table 3 is a list of the Product features with the location of each control. Table 3. Features hak04.eps Item Description LCD Display Power On/Off and Menu SD Memory Card Slot Lanyard Tripod Mount Menu Selection/Parameter Adjustment... -
Page 15: Focus
VT02 Users Manual Focus The Product is a fixed focus visual IR thermometer that operates from 50 cm (20 in). Button Operations Two functions are accessed directly from the buttons: Blending/Capture and Save. The arrow buttons are used for menu navigation. Image Blending Image blending makes it easier to understand infrared images through the use of an aligned visible image and infrared image. - Page 16 Visual IR Thermometer Features and Controls The image remains frozen for about 4 seconds. It then shows the dialog box to let you either save or discard the image. 4. Push F to save or E to discard the image. The display has an icon that shows the current status of the SD card, see Figure 3.
-
Page 17: Menu Functions
VT02 Users Manual Menu Functions To open the display menu, push E. The menu has options for memory, emissivity, background temperature, spot temperature markers, date, and time. Basic Navigation The basic functions of the Product are accessible with the six buttons and color display. - Page 18 Visual IR Thermometer Menu Functions D/C to highlight to select (color inverts) D/C change values accept new value hak08.eps Figure 5. Parameter Adjustment Table 4 is a list of the menu icons and their descriptions. Table 4. Menu Icons Icon Description Play Stored images, see Review Memory...
-
Page 19: Review Memory
VT02 Users Manual Review Memory The Memory mode lets you view the stored images. You can also delete images in this menu. 1. Push F to open the Memory mode. 2. Push D/C to scroll through and review the stored images. 3. -
Page 20: Color Palette
To prevent personal injury, see emissivity information for actual temperatures. Reflective objects result in lower than actual temperature measurements. These objects pose a burn hazard. Go to http://www.fluke.com/Fluke-Thermal-Imaging-and-Thermal-Imagers more information on emissivity and how to get the most accurate temperature measurements. Color Palette The Palette menu changes the false-color presentation of the infrared images that are on the display or captured. -
Page 21: Reflected Background Temperature
VT02 Users Manual Reflected Background Temperature The background temperature can be set between 0 °C and +36 °C. Compensation for reflected background temperature is set in the Background tab. Very hot objects or very cold objects can affect the apparent temperature and measurement accuracy of the target or object of interest, especially when surface emissivity is low. - Page 22 Visual IR Thermometer Menu Functions 1. Push F again to select the date type. Move through the menu selections with the D/C buttons. Selections are: DD/MM/YYYY MM/DD/YYYY 2. Move down to the date. 3. Use A/B buttons to select each date item. Use D/C to change the value.
-
Page 23: Measurements
VT02 Users Manual Measurements The temperature measurement of the center pixel is shown at the top of the display. The emissivity setting also shows at the top of the display. When the hot/cold temperature markers are turned on, move the Product until the hot or cold spot coincides with the middle measurement pixel. -
Page 24: Maintenance
Do not put battery cells and battery packs near heat or fire. Do not put in sunlight. ~ W Caution Do not incinerate the Product and/or battery. Go to Fluke’s website for recycling information. To replace the batteries: 1. Remove the battery cover from the handle. - Page 25 VT02 Users Manual hak06.eps Figure 6. Battery Replacement 4. Slide battery cover into place on the handle.
-
Page 26: Specifications
Visual IR Thermometer Specifications Specifications Temperature Temperature Measurement Range ..... -10 °C to +250 °C Temperature Measurement Accuracy ....±2 °C or ±2 % of reading in °C, whichever is the greater (at 23° nominal) On-Screen Emissivity Correction ......Yes On-Screen Reflected Background Temperature Compensation ........ - Page 27 VT02 Users Manual Display ..............2.2 in diagonal Controls and Adjustments Select Color Palette User-Selectable Temperature Scale (°F/°C) Time/Date Set Emissivity Selection Reflected Background Temperature Compensation ® Software ..............Smartview Note ® Smartview software is available for reports. Batteries ..............4 AA Battery Life ............
- Page 28 Visual IR Thermometer Specifications...
