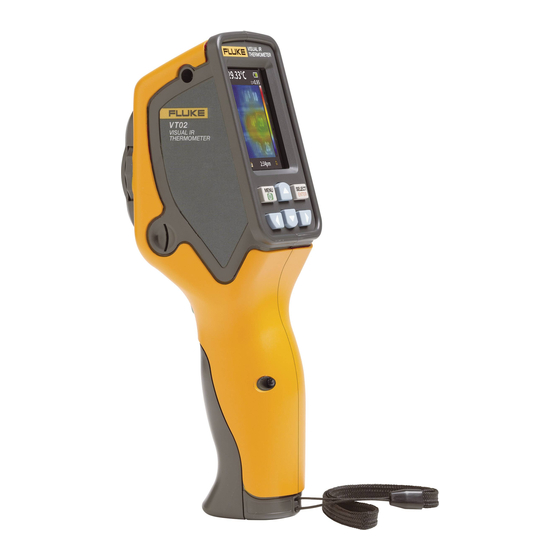

Fluke VT02 Quick Start

Micro SD
Memory card
slot on side
Micro USB
Connector
(VT04 only)
Power On/Off
and Menu

1. MEMORY:

Insert the SD memory card in the slot provided on the side of the camera body.

2. POWER:

TheVT02 uses AA Alkaline Batteries (QTY. 4). The VT04 visual thermometer uses a Li-ion battery. Prior to use ensure
the battery is fully charged. Plug the AC power adapter into a wall outlet Connect the micro-USB connector to the
batter charge port located under the rubber cover. The battery charge state is displayed in the upper right-hand corner
of the display.

3. START:

To turn on the power, push and hold the menu / power button for 2 seconds. A start-up screen shows on the display
and indicator bar shows the status. After the startup screen is complete the unit is ready to use.

4. FOCUS:

This unit does not have a focus adjustment. It uses a digital visual image with a thermal overlay. When the two images
are aligned focus has been achieved. The Up and Down Arrows are used to achieve the alignment of both the visual
and thermal overlay.
5. AUTO ADJUST (Level and Span):
NA
6. MANUAL ADJUST (Level & Span):
NA
7. PAUSE IMAGE:
NA
© 2019 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820 / www.thesnellgroup.com
Select/Enter
Directional Arrow Keys
Tripod
Mount
QuickStart
LCD Display
Battery
VT02/VT04
Infrared
Lens
Visual Lens
Trigger for
Image Capture
