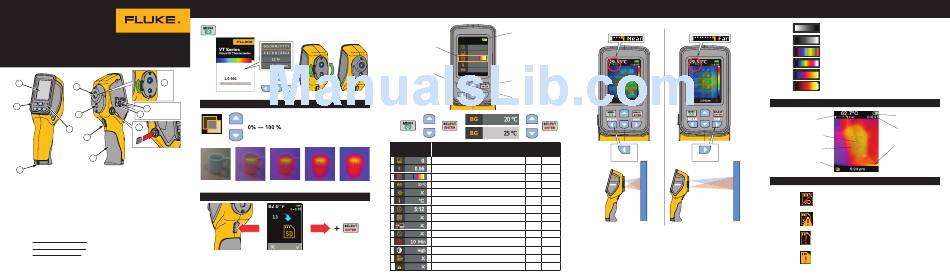

Fluke VT04A Quick Reference Manual

Quick Reference Guide
Visual IR Thermometer
VT02, VT04A, VT04
VT04A/VT04 VT02
1 7
6
2
VT04
11
only
12
8
3
5
9
10
4
 
LCD Display Rotating Lens Cover
 Power On/Off and Menu  Visual Camera
 
Micro SD Memory card slot Trigger for Image Capture
 
Tripod Mount Battery Cover
 Select/Enter  Micro USB Connector
 Infrared Lens  Battery Charge Status LED
To view, print, or download the latest VT-series documents and software, visit:
www.fluke.com/vtsmartview
www.fluke.com/vtquickstart
www.fluke.com/vtmanual
PN 4477229 April 2014
© 2014 Fluke Corporation. All rights reserved.
Power On and Off
First time use:
enter date and time
2 sec.
VT02 VT04A, VT04
Image Blending
0 % 25 % 50 % 75 % 100 %
Capture and Save
Note
Use the micro SD memory card to download images from the Product to a PC. The micro-
USB cable is for battery charging only.
Menu Functions and Basic Navigation
Battery Charge Level
Yellow Highlight
5:12
0
˚ C
20 ˚ C
Open Display
Menu
Select/Enter
Up/Down to
Change Values
VT04A
Icon Description VT02
VT04
• •
View Stored images
• •
Emissivity
• •
Color Palette
• •
Background Temperature
• •
Hot and Cold Markers
• •
Temperature Units
• •
Clock (Time and Date)
•
High/Low Temperature Alarm
•
Auto-Monitor Alarm
•
Time-Lapse Image Capture
•
Auto Off
•
LCD Brightness (low, medium, high)
•
Save in BMP Format
•
Factory Reset
Visual Image Alignment Control
Near Mode Far Mode
≤ 9 in / 23 cm > 9 in / 23 cm
VT02 VT02
IMAGING IR IMAGING IR
THERMOMETER THERMOMETER
www.patentlabel.com/fluke US PAT: www.patentlabel.com/fluke US PAT:
FLUKE CORPORATION EVERETT, WA USA EVERETT, WA USA FLUKE CORPORATION
Color Palette
Grayscale (Black hot)
Grayscale (White hot)
High Contrast
Rainbow
Ironbow
Hot Metal (VT04A, VT04 only)
Measurement Display
Battery Status
Center-point
Measurement
Emissivity
Center-point Cursor
Color Palette
Center-point
Measurement Area
Blend Icon
SD Card
No SD card in slot
SD card error
SD card empty
SD card full
