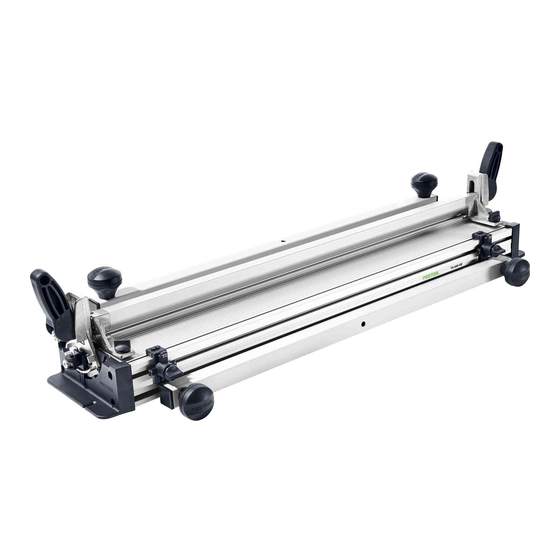

VS600 Jointing System — Procedure for Half Blind Dovetails

A Step by Step Procedure for these templates: SZ14 and SZ20

Template SZ14 - Half Blind Dovetail

for wood thickness .63 - .79" (26-20mm)*

Cutters: 490 991 (HSS); 490 990 (carbide)

for wood thickness .63 - .79" (26-20mm)*

Cutters: 490 991 (HSS);

490 990 (carbide)

* wood thickness measurements refer to front/back

piece only - sides can be thinner.

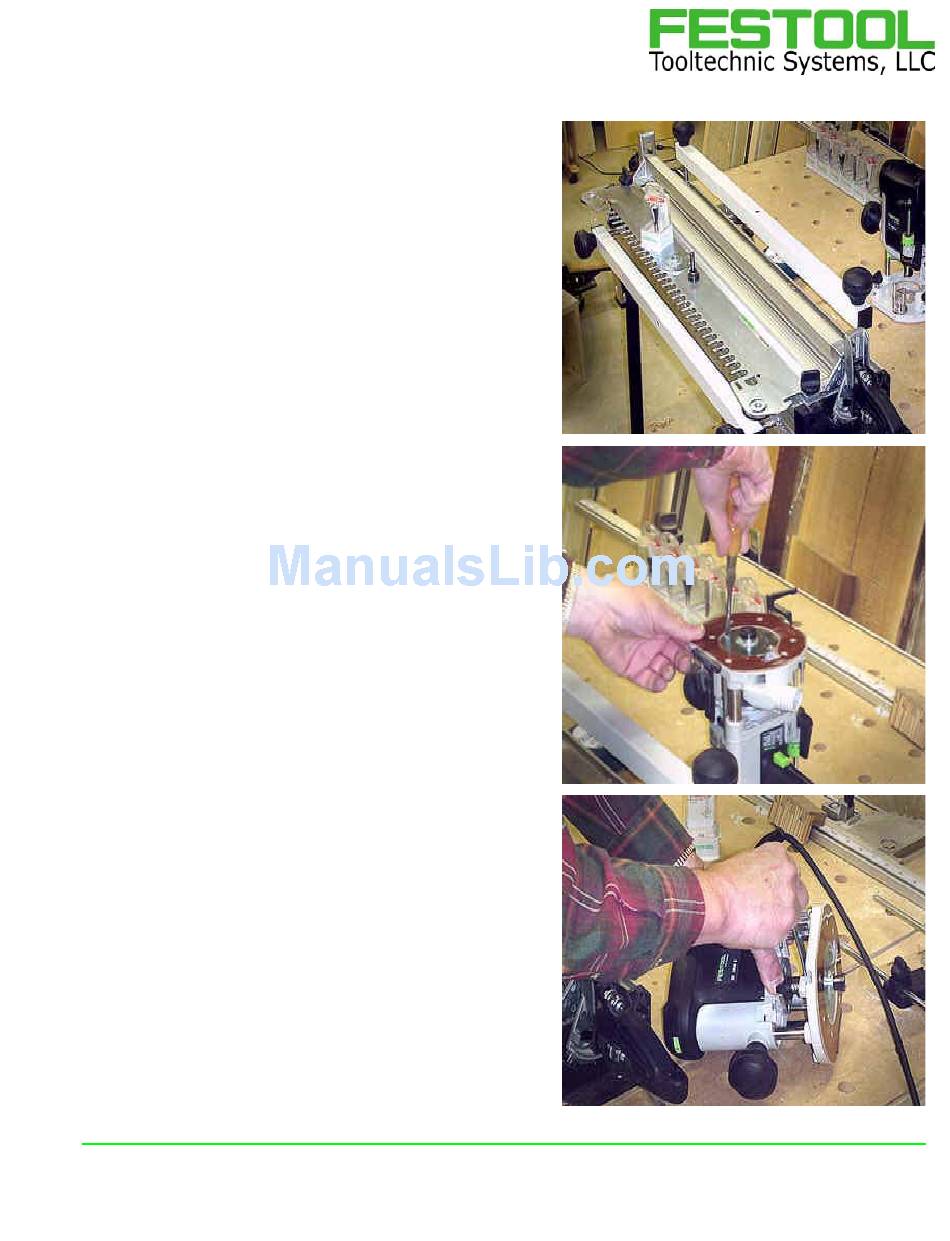

Install the copying ring. The ring should be the

one that came with the SZ14 or SZ20

template or one that fits in the template

grooves exactly.

Install the appropriate bit in the router.

Cutters: 490 991 (HSS)

490 990 (carbide)
