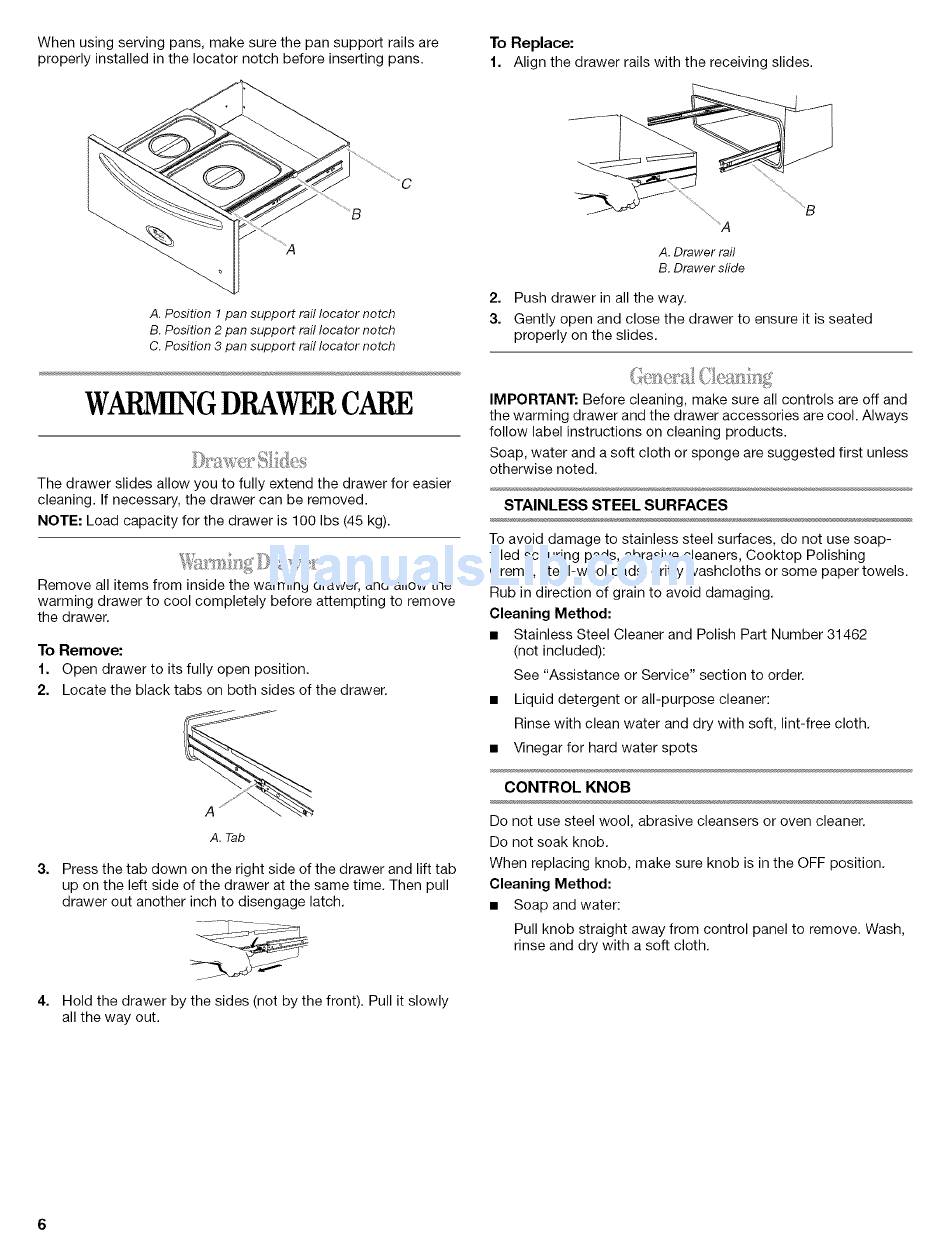

When using serving p ans, m ake sure thepansupport rails are
ToReplace:
properly installed inthelocater notch before i nserting pans.
1. Align thedrawer rails withthereceiving slides.
A. Position 1 pan support raft Iocator notch
B. Position 2 pan support rail Iocator notch
C. Position 3 pan support rail Iocator notch
WARMING DRAWER CARE
The drawer slides allow you to fully extend the drawer for easier
cleaning. If necessary, the drawer can be removed.
NOTE: Load capacity for the drawer is 100 Ibs (45 kg).
Remove all items from inside the warming drawer, and allow the
warming drawer to cool completely
before attempting to remove
the drawer.
To Remove:
1. Open drawer to its fully open position.
2. Locate the black tabs on both sides of the drawer.
3=
A. Tab
Press the tab down on the right side of the drawer and lift tab
up on the left side of the drawer at the same time. Then pull
drawer out another inch to disengage latch.
2=
3.
_'A
A. Drawer rail
B. Drawer slide
Push drawer in all the way.
Gently open and close the drawer to ensure it is seated
properly on the slides.
IMPORTANT:
Before cleaning, make sure all controls are off and
the warming drawer and the drawer accessories are cool. Always
follow label instructions
on cleaning products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
STAINLESS
STEEL SURFACES
To avoid damage to stainless steel surfaces, do not use soap-
filled scouring pads, abrasive cleaners, Cooktop Polishing
Creme, steel-wool pads, gritty washcloths
or some paper towels.
Rub in direction of grain to avoid damaging.
Cleaning Method:
Stainless Steel Cleaner and Polish Part Number 31462
(not included):
See "Assistance
or Service" section to order.
Liquid detergent or all-purpose
cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
Vinegar for hard water spots
CONTROL
KNOB
Do not use steel wool, abrasive cleansers or oven cleaner.
Do not soak knob.
When replacing knob, make sure knob is in the OFF position.
Cleaning Method:
Soap and water:
Pull knob straight away from control panel to remove. Wash,
rinse and dry with a soft cloth.
4. Hold the drawer by the sides (not by the front). Pull it slowly
all the way out.
