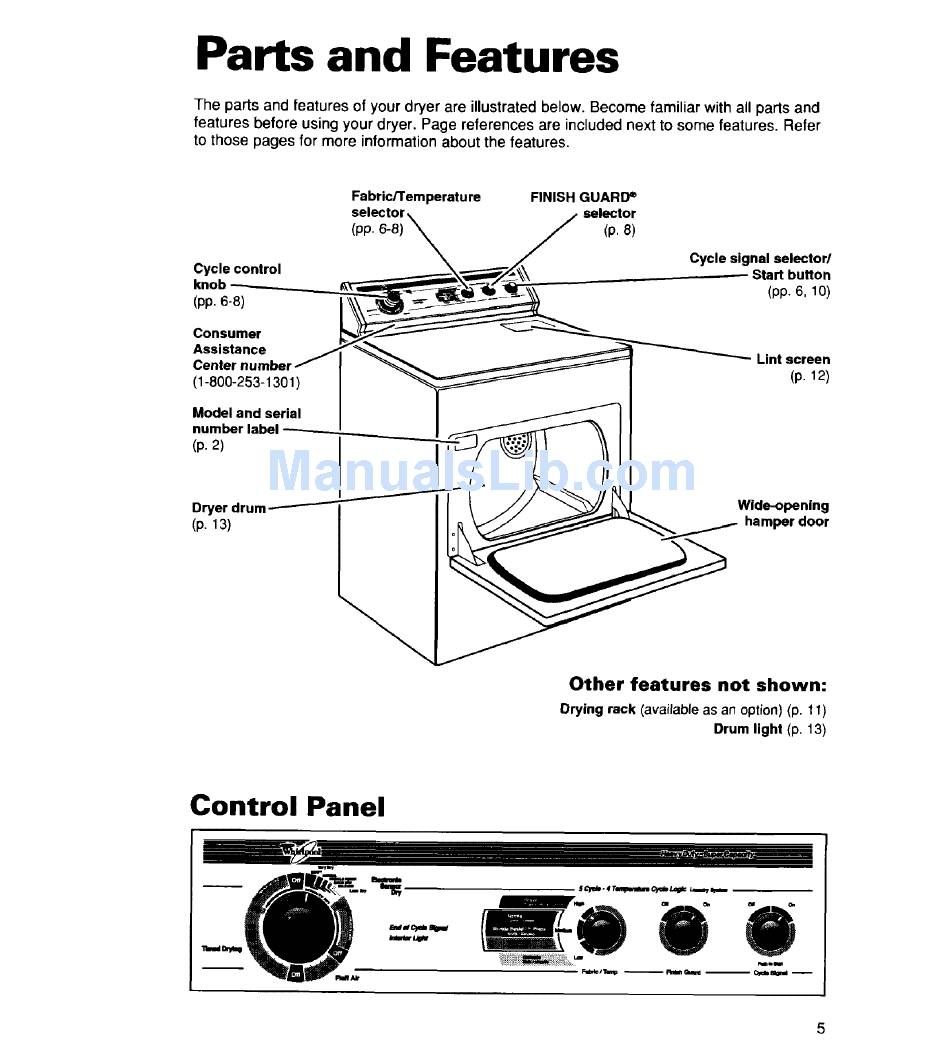

Parts and Features
The parts and features of your dryer are illustrated below. Become familiar with all parts and
features before using your dryer. Page references are included next to some features. Refer
to those pages for more information about the features.
Cycle control
(pp. 6-8)
Consumer
As., ice
(1-800-253-1301 )
Model and serial
number
(p. 2)
Dryer drum
(p. 13)
Fabric/Temperature FINISH GUARD =
sel_ selector
{pp. 6-8) (p, 8)
I
Cycle signal selector/
Start button
(pp. 6, 10)
Lint screen
(p. 12)
Wide-opening
hamper door
Other features not shown:
Drying rack (available as an option) (p. 11)
Drum light (p. 13)
Control Panel
