Page 1: Table Of Contents

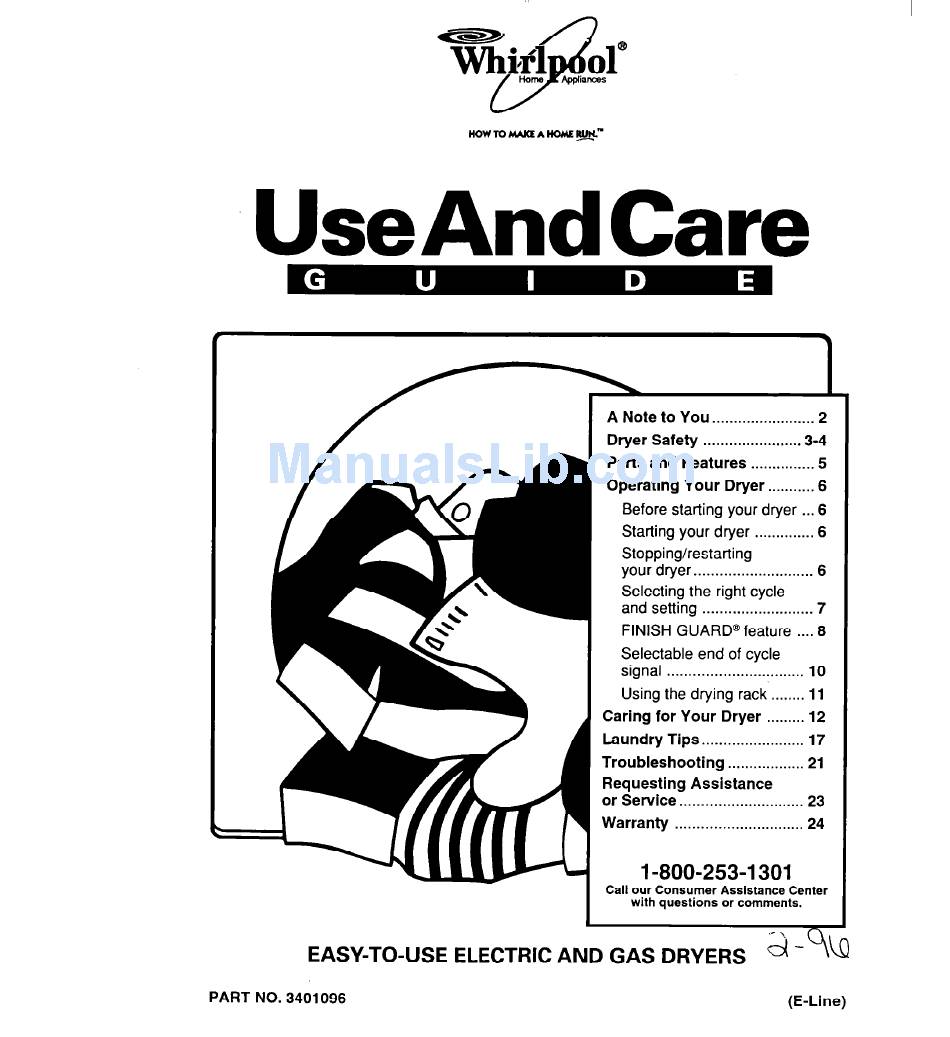

Tkfl UseAndCare EASY-TO-USE ELECTRIC AND GAS DRYERS PART NO. 3401096 01” Home Appriance HOWToAumEAHoh&~m A Note to You..Dryer Safety ... Parts and Features Operating Your Dryer ... 6 Before starting your dryer .. .6 Starting your dryer ... 6 Stopping/restarting your dryer..
Page 2: A Note To You
Keep this book and the sales slip together Our Consumer Assistance number is toll-free 24 hours appliance. WHIRLPOOL dryers are easy Registration Card provided with information. Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone...
Page 3: Dryer Safety
Dryer Safety Your safety is important to us. This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explana- tion of the use of the symbol. IMPORTANT SAFETY - Do not store or use gasoline...
Page 4 ImDortant Safetv Read all instructions before using your dryer. @ Dryer must be electrically grounded. See the Installation Instructions. Do not machine wash or machine dry items cleaned, washed, soaked in, or spotted with wax, paint, gasoline, oil, dry cleaning solvents, or other flammable fluids.
Page 5: Parts And Features
Parts and Features The parts and features of your dryer are illustrated below. Become familiar with all parts and features before using your dryer. Page references are included next to some features. Refer to those pages for more information about the features. Fabric/Temperature Assistance Center number...
Page 6: Operating Your Dryer
Operating Your Dryer section helps you learn The information in this to “Laundry Tips” on page 17 for additional types of washables. Before starting your Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping. Starting your dryer...
Page 7: Selecting The Right Cycle And Setting
Selecting the right The following pages describe the cycles on your dryer. Refer to the charts on pages 9-l 0 for help in selecting drying cycles. Drying guidelines Always follow care label directions when they are available. Use the Fluff Air cycle, or line dry rubber, plastic, delicate, and heat-sensitive (see page 10).
Page 8: Finish Guard@ Feature
Timed Drying Cycle Use the Timed Drying cycle (high, medium, or low heat) to complete drying if some items are damp after Automatic drying. Timed Drying is also useful for: Delicate items and small loads that need a short drying time. Bulky items and large loads that require a long drying time.
Page 9 Timed Drying For most loads, use an Automatic cycle (see page 7). If you choose not to use an Automatic cycle, then use the Timed Drying chart below as a guideline. Remember to always follow care label directions when they are available. Timed Drying Chart...
Page 10: Selectable End Of Cycle Signal
Fluff Air cycle or line drying The chart below includes examples of items that require drying without heat. Use the Fluff Air cycle, or place the items on a line or rack to air dry. NOTES: Heat-sensitive fabrics should not be dried in the dryer.
Page 11: Using The Drying Rack
Using the drying rack (available as an option) To order the drying rack (Part #/692990), write: Whirlpool Corporation Parts Distribution Center 123 Koomler Drive LaPorte, IN 46350 The drying rack lets you dry items that you may not want to tumble. The rack does not move, but the drum turns.
Page 12: Caring For Your Dryer
Caring for Your Dryer Proper care of your dryer can extend its life. This section explains how to care for your dryer properly and safely. Cleaning the lint screen Every load cleaning The lint screen is located under a lid on top of the dryer.
Page 13 Cleaning the dryer Garments which contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. To clean dryer drum: 1. Make a paste with detergent and very warm water. 2. Apply paste to a soft cloth and scrub area until all excess dye is removed.
Page 14 Removing accumulated Lint can gather inside the dryer and be a fuel for fire. Lint should be removed every two to three years, or more often, depending on dryer usage. Cleaning should be done by a qualified person. If you have any questions or comments, please call our Consumer Assistance Center at l-800-253-1 301.
Page 15 Electrlcal Shock Hazard Unplug dryer before removing dryer panels. Wear gloves when handling dryer parts. Make sure door switch wires are not touching the dryer drum before closing the top. Failure to do so can result in death, electrlcal shock, or serious cuts.
Page 16 Unplug dryer before removing Wear gloves when handling Make sure door switch wires are not touching before closing Failure to do so can result in death, electrical serious cuts. 4. Remove two internal screws from front panel flanges (near top front corners). Lift front panel slightly, lifting off lower clips (see lower clip inset of View B).
Page 17: Laundry Tips
Laundry Tips This section provides information on preparing clothes for drying, drying guidelines, instructions for drying special-care items. NOTES: Refer to your Washer Use and Care Guide for proper washing techniques laundry tips. See pages 3 and 4 of this book for Important Safety Information. Sorting clothes Separate dark from light colors;...
Page 18 Using dryer fabric Dryer fabric softeners are recommended for reducing static cling and for softening fabrics. Always follow package instructions carefully. Put one fabric softener sheet on top of the load before starting dryer. Do not add a fabric softener sheet after the drying cycle has started.
Page 19 Drying special-care Most garments and household textiles have manufacturer’s instructions. Always follow care label dlrections include drying instructions for most types of washables. instructions for special-care washables. ITEMS DRYING INSTRUCTIONS Blankets Machine drying knitted woolens is not recommended. woolens when wet and allow to air dry. Line dry blankets in the shade on a breezy day over two lines.
Page 20 ITEMS DRYING INSTRUCTIONS Knits, washable Do not overdry knits. Overdrying 1. Select cycle according to fabric and construction. 2. Turn synthetics and blends inside out when drying to avoid pilling. 3. Remove cotton and rayon knits while still slightly damp. Stretch into shape and lay flat to finish drying.
Page 21: Troubleshooting
Troubleshooting Most laundering problems are easily solved if you understand the cause. Check the following list for laundry problems you may have and their possible causes. Also refer to the next page for a dryer checklist which can help you solve some simple problems without calling for service.
Page 22 Common dryer problems Before calling for service, check these: Is the dryer door firmly closed? Are the controls set in an ON position? Did you firmly push the Start Button? Is lint screen clogged with lint? Is the power cord plugged in? Have you blown a fuse or tripped a circuit breaker? Is exhaust duct or outside exhaust hood clogged with lint? For gas dryers, are the valves open on the dryer and the supply line?
Page 23: Requesting Assistance
WHIRLPOOL To locate FSP replacement parts in your area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1. 4. If you are not satisfied...
Page 24: Or Service
FSP@ replacement parts and repair labor to correct FULL ONE-YEAR WARRANTY From Date of Purchase defects in materials or workmanship. provided by an authorized Whirlpool service company. WHIRLPOOL WILL NOTmFOd A. Service calls to: 1. Correct the installation of your dryer.
