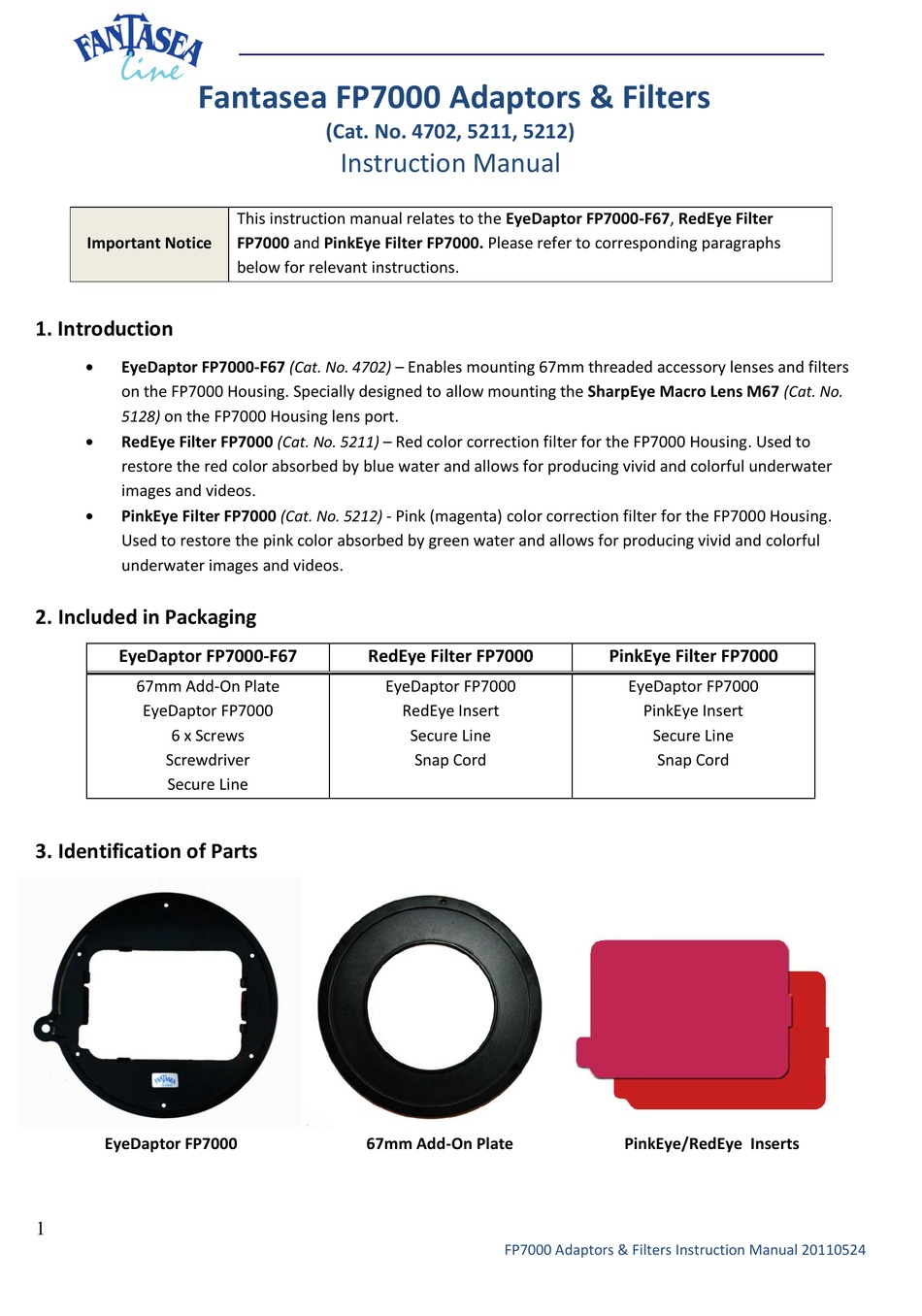

Fantasea FP7000 Adaptors & Filters
Important Notice

1. Introduction

EyeDaptor FP7000-F67 (Cat. No. 4702) – Enables mounting 67mm threaded accessory lenses and filters
on the FP7000 Housing. Specially designed to allow mounting the SharpEye Macro Lens M67 (Cat. No.
5128) on the FP7000 Housing lens port.
RedEye Filter FP7000 (Cat. No. 5211) – Red color correction filter for the FP7000 Housing. Used to
restore the red color absorbed by blue water and allows for producing vivid and colorful underwater
images and videos.
PinkEye Filter FP7000 (Cat. No. 5212) - Pink (magenta) color correction filter for the FP7000 Housing.
Used to restore the pink color absorbed by green water and allows for producing vivid and colorful
underwater images and videos.

2. Included in Packaging

EyeDaptor FP7000-F67
67mm Add-On Plate
EyeDaptor FP7000
6 x Screws
Screwdriver
Secure Line

3. Identification of Parts

EyeDaptor FP7000
1
(Cat. No. 4702, 5211, 5212)
Instruction Manual
This instruction manual relates to the EyeDaptor FP7000-F67, RedEye Filter
FP7000 and PinkEye Filter FP7000. Please refer to corresponding paragraphs
below for relevant instructions.
RedEye Filter FP7000
EyeDaptor FP7000
RedEye Insert
67mm Add-On Plate
Secure Line
Snap Cord
FP7000 Adaptors & Filters Instruction Manual 20110524
PinkEye Filter FP7000
EyeDaptor FP7000
PinkEye Insert
Secure Line
Snap Cord
PinkEye/RedEye Inserts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fantasea FP7000

Summary of Contents for Fantasea FP7000

  • Page 1: Identification Of Parts

    Fantasea FP7000 Adaptors & Filters (Cat. No. 4702, 5211, 5212) Instruction Manual This instruction manual relates to the EyeDaptor FP7000-F67, RedEye Filter Important Notice FP7000 and PinkEye Filter FP7000. Please refer to corresponding paragraphs below for relevant instructions. 1. Introduction ...
  • Page 2 4. Instructions for Use Please use the utmost care and do not use excessive force when assembling and Important Notice disassembling the different accessories, in order to not cause any damage to the product. Assembling the EyeDaptor FP7000-F67 a. Place the 67mm Add-On Plate on a flat and protected surface, so that the thread is facing down and the concaved side of the plate is facing up (image #1).
  • Page 3 Note that when mounting the SharpEye Macro Lens M67 on the FP7000 Housing using the EyeDaptor FP7000-F67, a vignette is encountered. This vignette can be eliminated by simply zooming in with the camera lens. Since the macro lens was designed to enable a shorter focus distance when using the camera lens zoom, zooming in with the macro lens installed on the housing will only enhance the macro effect and composition.
  • Page 4 For further information, please visit our website at www.fantasea.com/FantaseaEyes Installing Color Correction Inserts inside the EyeDaptor FP7000-F67 or BigEye Lens FP7000 a. Color correction inserts included with the RedEye/PinkEye Filter FP7000 can be installed inside the EyeDaptor FP7000-F67 or BigEye Lens FP7000 for the purpose of producing vivid and colorful images or videos while making use of macro and wide angle accessory lenses.
  • Page 5 b. In order to install a color correction insert inside the EyeDaptor FP7000-F67 or BigEye Lens FP7000, first remove the EyeDaptor or BigEye Lens from the housing lens port (see section #3, paragraph “f”). c. Remove the color insert from the RedEye/PinkEye Filter by gently pulling the secure string of the color insert till the insert pops out of the adaptor.

  • Page 6: Fantasea Product Consumer Limited Warranty

    ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer). This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty Period”). This warranty does not cover any commercial use of the product.
