Summary of Contents for Wood’s K05WNAA

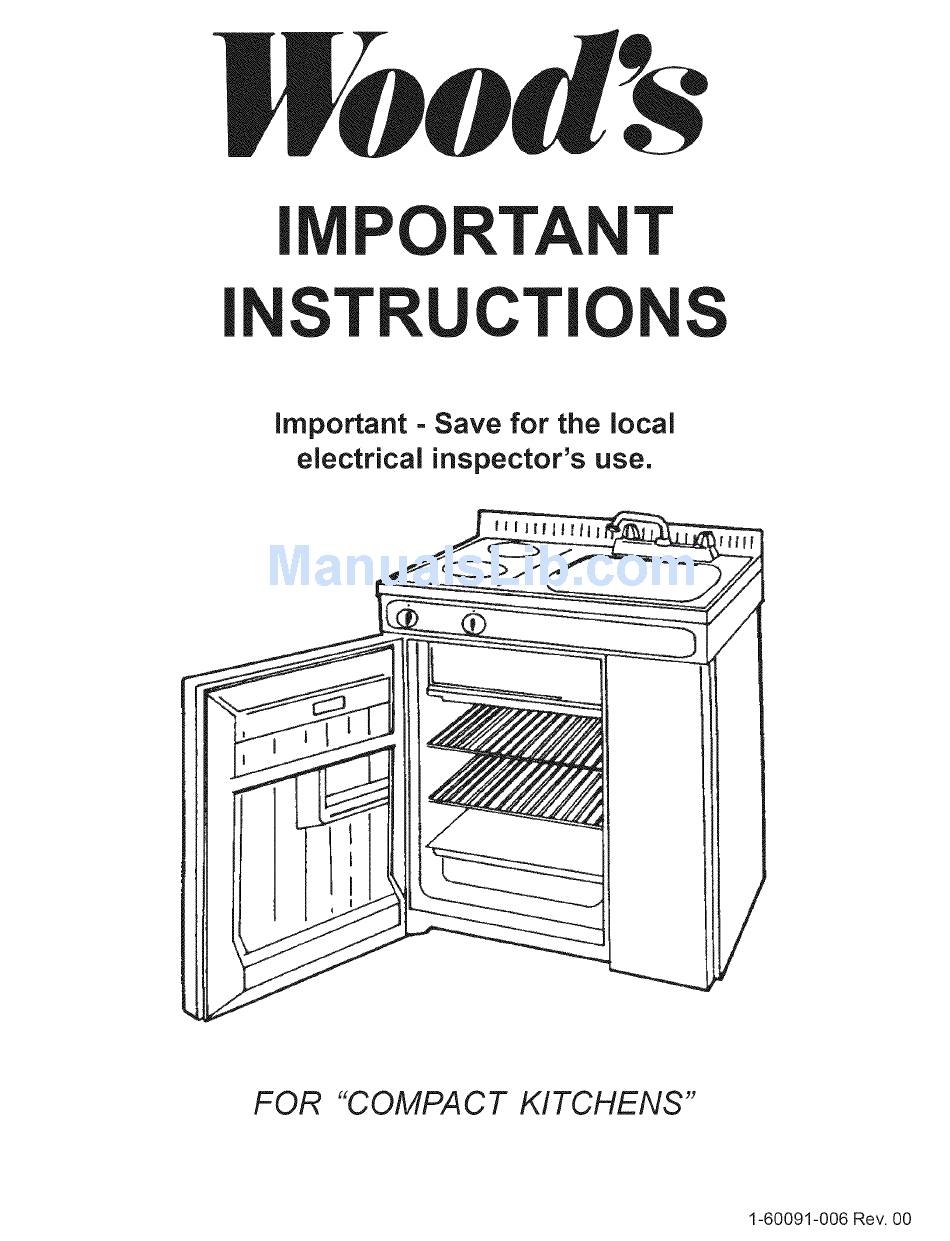

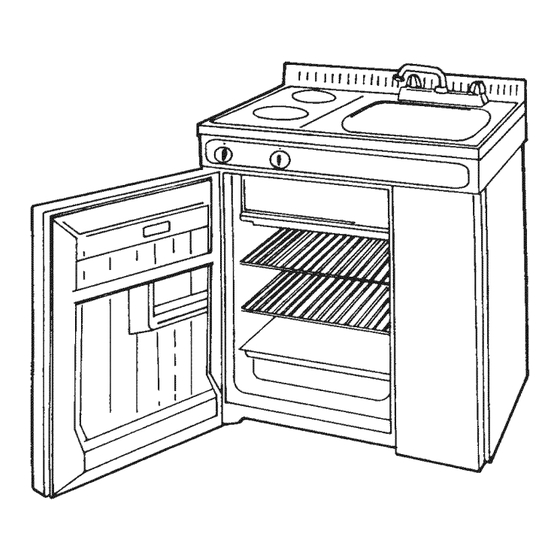

- Page 1 TA T CTiO important - Save for the local electrical inspector's use. FOR "COMPA CT KITCHENS" 1-60091-006 Rev. 00...
-
Page 2: Installation
IMPORTANT INSTRUCTIONS 1. Proper installation: The appliance shall be installed 11. Make sure reflector pans or drip bowls are in place: and grounded by qualified technicians. The minimum Absence of these pans or bowls during cooking spacing requirements given on the installation drawing must subject wiring or components underneath to damage. - Page 3 ELECTRICAL CONNECTIONS: 1. Combinations having the stove incorporated are designed to be permanently connected to the power supply• 2. For the Combination Models that have been designed for operation on 120V - AC current, 60 cycle, the power supply to the connection box could be either 120V - 2 wire supply, 230 - 3 wire supply or 1201208 - 4 wire supply.
- Page 4 INSTALLATION REQUIREMENTS In orderto remove crisperand/or shelves, a clearanceof 20 inches 11" is requiredfrom left wall. When "built-in",no clearanceis required on eitherside. "A" = 30" minimumclearancebetweenthe top of the cooking surfaceand the bottom of an unprotectedwoodor metal cabinet;or "A" = 24" minimum when bottomof wood or metalcabinet is protectedby not less than 1/4"...
-
Page 5: Important Safety Instructions
ImportantSafetyInstructions Warning: Risk of Child £ntrepmQnt Never allow children to operate, play with, or crawl inside a freezer or refrigerator. If you are storing a refrigerator or freezer: 1. Block the door open: Glue thick wooden blocks to the door so it can't close. Be sure to use strong glue and place the blocks high, out of children's reach.
