Safety Instructions
& Operator's
Manual for
MID MOUNT Z-RIDER
ZERO TURNING
HYDRO DRIVE
SERIES 0
MODELS
NZM19480KWV
NZM21520KWV
MODEL
NUMBER
EXPLANATION
INI
;
MODEL DESIGNATION "_
DRIVE SYSTEM TYPE
MOWER ORIENTATION
ENGINE HP
'- III 11_1481 _ I KWVI
I
I
POWER UNIT
ENGINE TYPE
SERIES DESIGNATION
MOWER DECK SIZE
N - Model Designation
Z - Zero Turning - Hydro Drive
M - Mid Mount Mower
19.0 - Engine Horse Power
21.0 -- Engine Horse Power
48 - 48" Mower Width
52 - 52" Mower Width
0 - Series Designation
KW - Kawasaki Engine
V - Over Head Valve

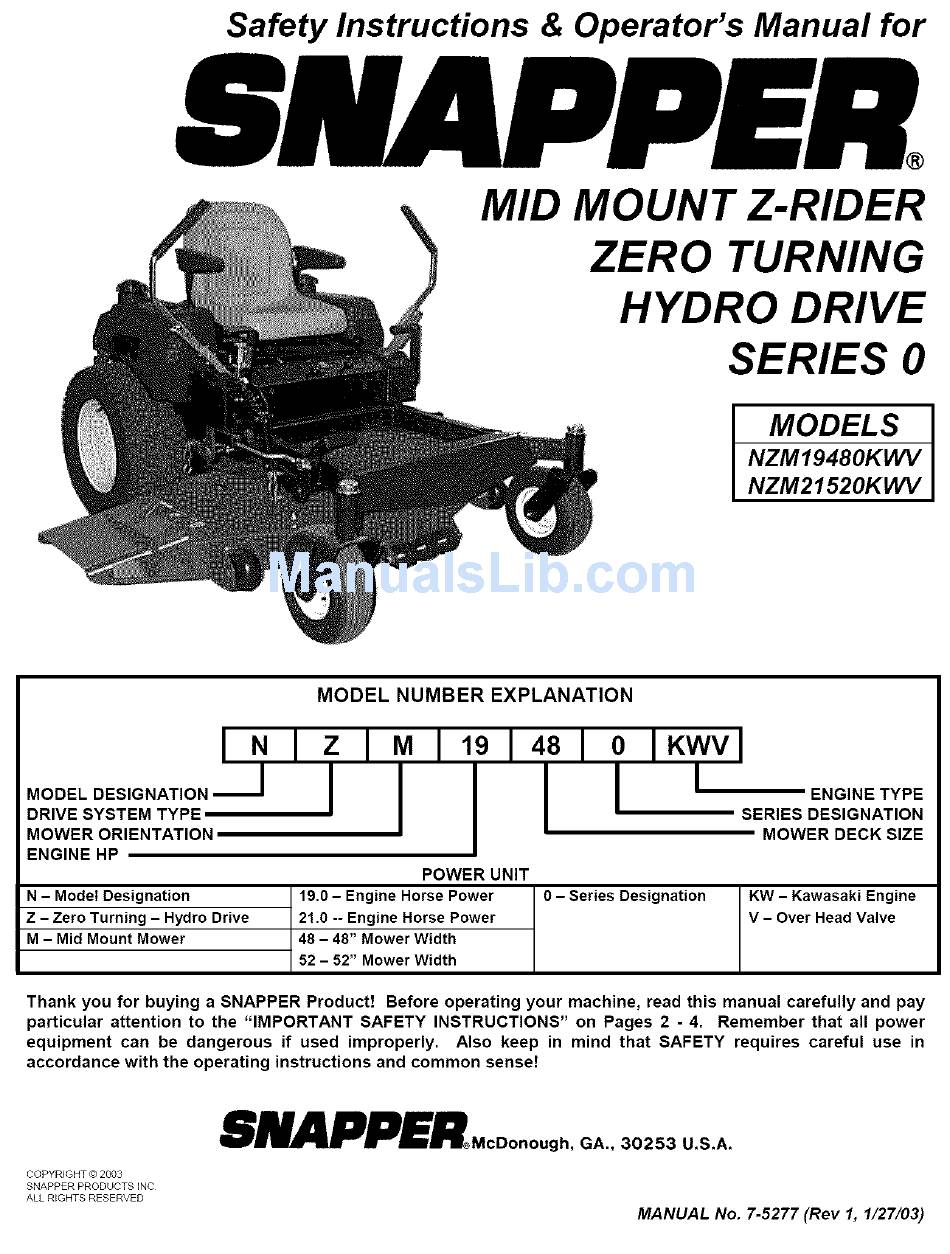

Thank you for buying a SNAPPER Product!
Before operating your machine, read this manual carefully and pay
particular attention to the "IMPORTANT
SAFETY INSTRUCTIONS"
on Pages 2 - 4.
Remember that all power
equipment
can be dangerous
if used improperly.
Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!
SNAPPERMcDonough,
GA., 30253
U.S.A.
COPYRIGHT
@ 2003
SNAPPER
PRODUCTS
INC
ALL RIGHTS
RESERVED
MANUAL No. 7-5277 (Rev I, 1/27/03)
