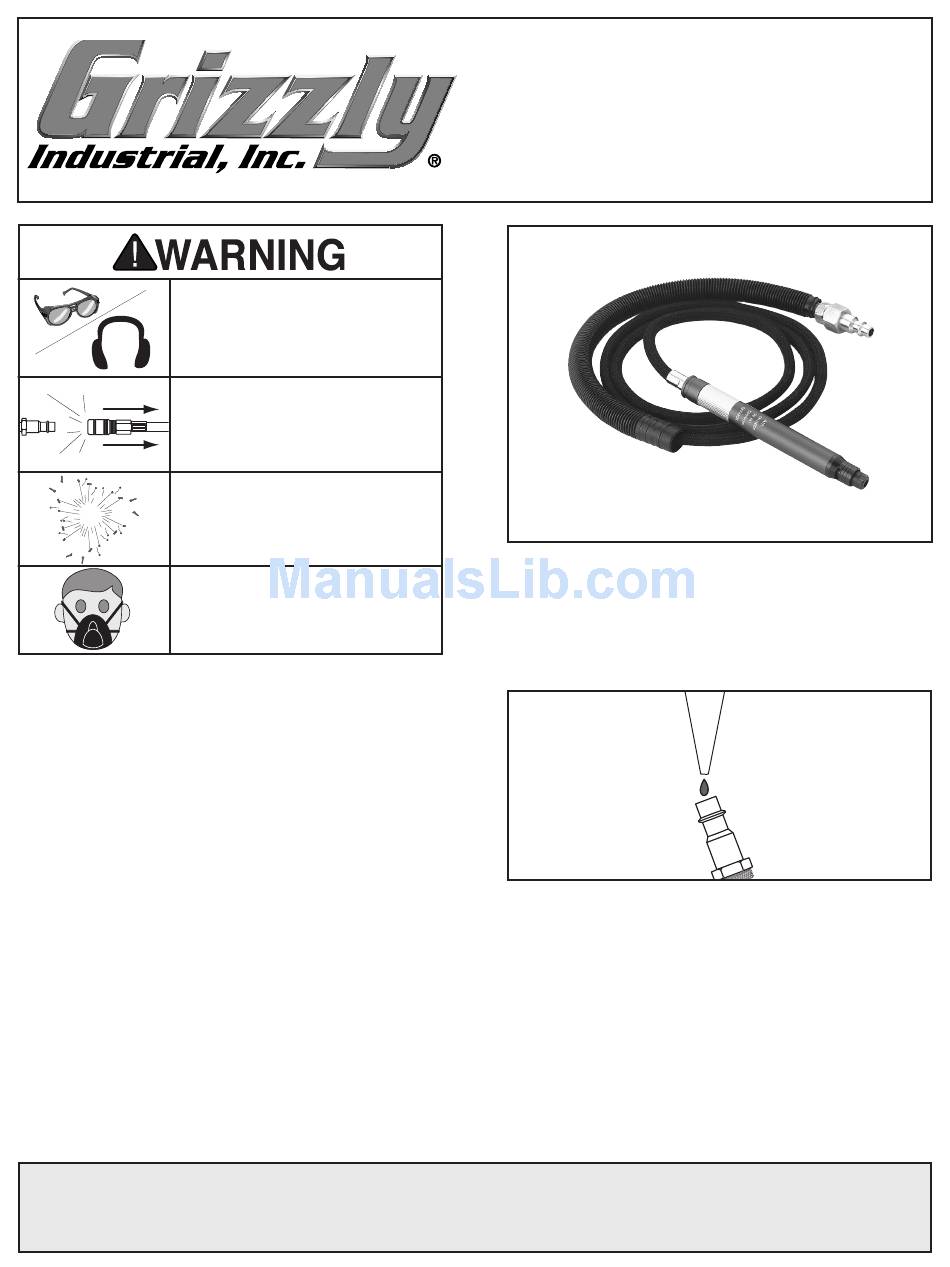

Grizzly H0591 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
Only use cutters rated for
RESPIRATORY HAZARD!
Grinding
dust. Wear the appropriate
protection during use!
Introduction
This Micro Die Grinder allows extreme flexibility
in all kinds of environments. No-load speed is
56,000 RPM and requires 90 PSI of air pressure
with 7 CFM of compressor capacity. Collet size
is ⁄ ".
1
8
Inventory
A. Micro Die Grinder ....................................... 1
B. ⁄ " NPT Air Fitting ....................................... 1
1
4
C. Collet Wrenches ......................................... 2
D. Oil Bottle ..................................................... 1
Operation
Insert your ⁄ " tool bit into the collet and tighten
1
8
with the collet wrenches provided. Make sure
the tool you use is rated for 56,000 RPM or less.
Connect air fitting to your regulated air source.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
EXPLOSION HAZARD!
Never exceed 90 PSI!
56,000 RPM or less!
produces
COPYRIGHT © MARCH, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8127 PRINTED IN TAIWAN
MICRO DIE GRINDER
INSTRUCTION SHEET
fine
Micro die grinder MUST have 3-4 drops of oil
directly dropped into the air fitting before each use
as shown in Figure 2.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
MODEL H0591
Figure 1. Model H0591.
