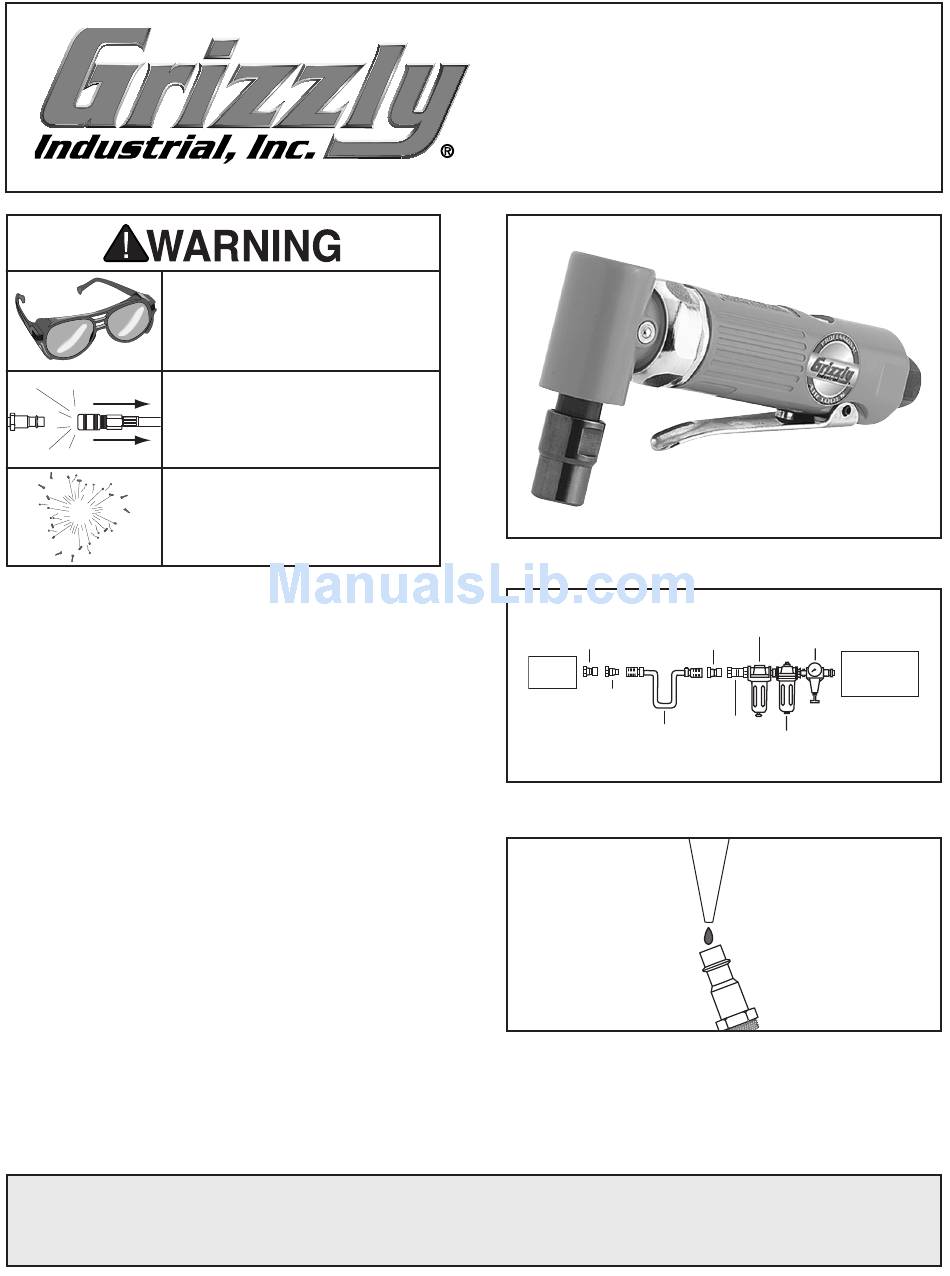

Grizzly H0588 Instruction Sheet

Always wear safety glasses
when using this tool to
prevent serious personal
Always disconnect tool from
air to prevent unexpected
operation during service.
Never exceed 120 PSI.

Introduction

Angle Die Grinders are excellent for reaching
sideways into areas that are relatively confined.
No-load speed is 18,000 RPM and collet size is
⁄ ". Requires 90 PSI with 4 CFM of compressor
1
4
capacity. Air inlet is
rear. Weighs just over 1 lb.

Inventory

A. Die Grinder ................................................. 1
B. Flat Wrench 17mm ..................................... 1
C. Flat Wrench 12mm ..................................... 1

Operation

Tool requires 90 PSI to operate correctly.
To improve tool lifespan, use a filter/lubricator/
regulator as shown in Figure 2. Otherwise, lubri-
cate daily with a couple drops of pneumatic tool oil
directly into the air fitting as shown in Figure 3.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
EYE INJURY HAZARD!
INJURY HAZARD!
EXPLOSION HAZARD!
⁄ " and air exhaust is in the
1
4
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#KM7957 PRINTED IN TAIWAN
MODEL H0588
⁄ " ANGLE DIE GRINDER
1
4
INSTRUCTION SHEET
Figure 1.
Quick
Connector
Your
Tool
Quick
Coupler
Air Hose
Figure 2.
Lubricating directly into air fitting.
Figure 3.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
Model H0588.
Quick
Lubricator
Regulator
Connector
Compressor
Quick
Filter
Coupler
Installing your tool.
Air
