8" BUFFER
MODEL H4380
INSTRUCTION MANUAL
COPYRIGHT © APRIL, 2002 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN CHINA.
ONLINE MANUAL DISCLAIMER
THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE
MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE
MACHINE, THIS MANUAL MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS
ABOUT DIFFERENCES. PREVIOUS VERSIONS ARE NOT AVAILABLE ONLINE.
Advertisement
Table of Contents
Related Manuals for Grizzly H4380
Summary of Contents for Grizzly H4380
- Page 1 INSTRUCTION MANUAL COPYRIGHT © APRIL, 2002 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. PRINTED IN CHINA. ONLINE MANUAL DISCLAIMER THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED.
- Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
-
Page 3: Table Of Contents
1. SAFETY SAFETY RULES FOR POWER TOOLS ...2-3 ADDITIONAL SAFETY INSTRUCTIONS FOR BUFFERS ...4 2. CIRCUIT REQUIREMENTS 110V OPERATION ...5 EXTENSION CORDS ...5 GROUNDING ...5 3. INTRODUCTION COMMENTARY...6 UNPACKING ...7 MOUNTING ...7 4. OPERATIONS TEST RUN...8 GENERAL ...8 BUFFING & POLISHING...9 WHEEL REMOVAL ...9 BUFFING WHEEL SELECTION ...10 BUFFING COMPOUND SELECTION ...10... -
Page 4: Safety Instructions For Power Tools
VISITORS H4380 Buffer... - Page 5 15. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recom- mended accessories. The use of improper accessories may cause risk of injury. H4380 Buffer 16. REDUCE THE RISK OF UNINTENTION- 17. MANY WOODWORKING TOOLS CAN LENGTH 50ft 100ft 18.
-
Page 6: Additional Safety Instructions For Buffers
The time you invest before you begin to use your Model H4380 will be time well spent. DO NOT operate this machine until you are completely familiar with the contents of this manual or serious personal injury may occur. -
Page 7: Circuit Requirements
Extension Cords If you find it necessary to use an extension cord with the Model H4380, make sure the cord is rated Hard Service (grade S) or better. Refer to the chart in the standard safety instructions to determine the minimum gauge for the extension cord. -
Page 8: Introduction

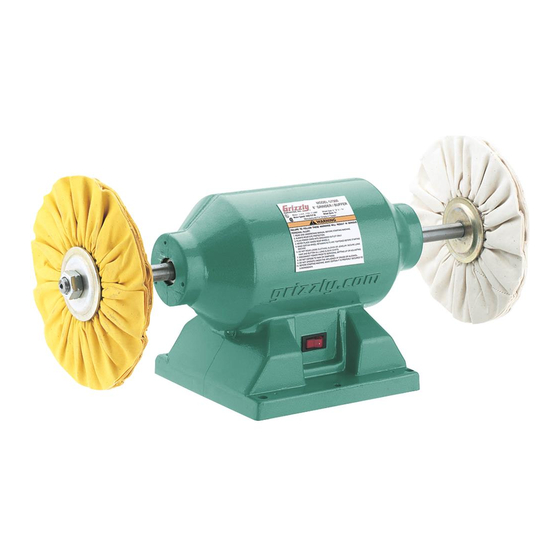

SECTION 3: INTRODUCTION Commentary We are proud to offer the Grizzly Model H4380 8" Buffer. The Model H4380 is part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s com-... -
Page 9: Unpacking
Unpacking The Model H4380 is shipped from the manufac- turer in a carefully packed carton. If you discover the machine is damaged after you have signed for delivery, immediately call Customer Service for advice. When you are completely satisfied with the con- dition of your shipment, you should inventory its parts. -
Page 10: Operations
If you cannot easily locate the source of an unusual noise or vibration, feel free to contact our service department for help. The Model H4380 8" Buffer is strictly designed for buffing operations. IT IS NOT A GRINDER. The absence of grinding wheel guards prohibit the use of this machine as a grinder. -
Page 11: Buffing & Polishing
Buffing & Polishing For buffing and polishing, Grizzly offers a broad line of buffing wheels and polishing compounds. Please refer to our current catalog for more infor- mation on these. To buff or polish with the buffer: Make sure the power cord is unplugged and remove the ⁄... -
Page 12: Buffing Wheel Selection
Check with your current Grizzly catalog for avail- ability on any of these wheel types. Buffing Compound Selection Most colors of abrasives have similar applica- tions, but always check with the manufacturer of your particular compound. -
Page 13: Buffing Tips
• Hold the workpiece tightly at all times while buffing. One hand near the contact point will give you better control. H4380 Buffer • Keep buffing wheels raked out before each use and when buildup gets heavy during use. “Raking” means to clean the buffing wheels with a wheel rake to remove buildup com- pounds and metal particles. -
Page 14: Maintenance
Always be aware of the condition of your buffer. adjust- Routinely check the condition of the following items and repair or replace as necessary: • Loose mounting bolts • Worn switch • Worn or damaged cord • Worn or damaged shaft bearings H4380 Buffer... -
Page 15: Closure
H4380 Buffer We recommend you keep a copy of our current catalog for complete information regarding Grizzly's warranty and return policy. If you need additional technical information relating to this machine, or if you need general assistance or replacement parts, please contact the Service Department listed in Section 3: Introduction. -
Page 16: Machine Data
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 MODEL H4380 BUFFER Design Type... Bench Model Overall Dimensions: Height ...8" Width ...21" Depth ...7 Shipping Weight ...20 lbs. Net Weight...17 lbs. Box Size ...18" L x 11" W x 11 Footprint...8"... -
Page 17: Parts Breakdown And Parts List
PH4378022 WIRE NUT PH4380023 MOTOR SHAFT PN27 LEFT HAND HEX NUT PH4378029 WIRE PH4378030 STRAIN RELIEF PH4378031 BACK B0DY PH4378032 CAPACITOR CBB60 H4380 Buffer MODEL H4380 PARTS Ref# Part# ⁄ " ⁄ " Description PS01 PHLP HD SCR 10-24 X... -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 19 Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Industrial to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________...
- Page 20 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
