Settings And Advanced Features - Friendly Robotics Robomow RL850 Operating & Safety Manual

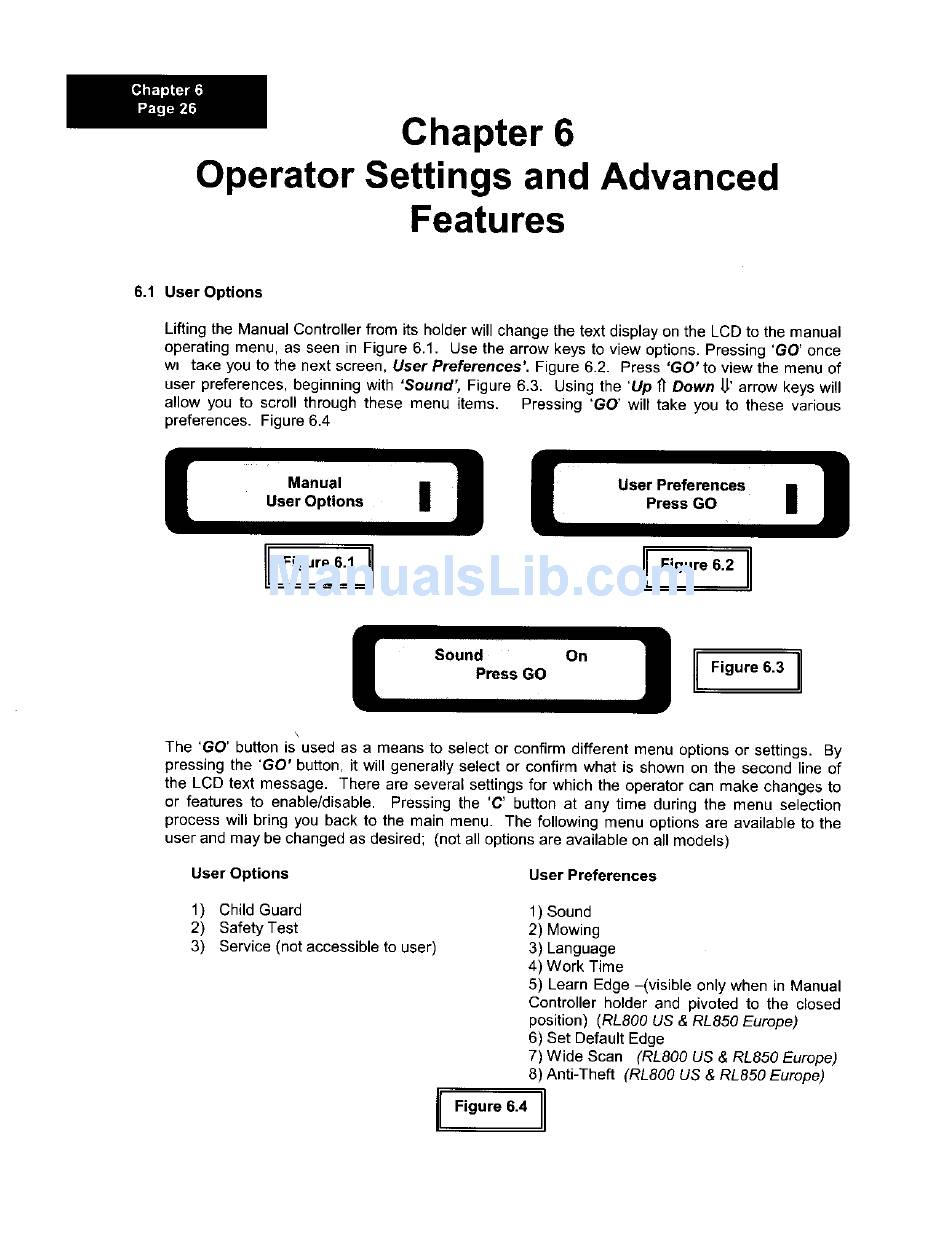

Chapter 6
Operator Settings and Advanced
Features
6.1 User Options
Lifting the Manual Controller from its holder will change the text display on the LCD to the manual
operating menu, as seen in Figure 6.1. Use the arrow keys to view options. Pressing 'GO' once
w= take you to the next screen, User Preferences'. Figure 6.2. Press 'GO' to view the menu of
user preferences, beginning with 'Sound" Figure 6.3. Using the 'Up 1_Down _: arrow keys will
allow you to scroll through these menu items. Pressing 'GO' will take you to these various
preferences. Figure 6.4
I
I '0ure°. 1
II Figure6.3 I
The 'GO' button is used as a means to select or confirm different menu options or settings. By
pressing the 'GO" button, it will generally select or confirm what is shown on the second line of
the LCD text message. There are several settings for which the operator can make changes to
or features to enable/disable. Pressing the 'C' button at any time during the menu selection
process will bring you back to the main menu. The following menu options are available to the
user and may be changed as desired; (not all options are available on all models)
User Options User Preferences
1) Child Guard
2) Safety Test
3) Service (not accessible to user)
1) Sound
2) Mowing
3) Language
4) Work Time
5) Learn Edge -(visible only when in Manual
Controller holder and pivoted to the closed
position) (RL800 US & RL850 Europe)
6) Set Default Edge
7) Wide Scan (RL800 US & RL850 Europe)
8) Anti-Theft (RL800 US & RL850 Europe)
J Figure6.4 J
