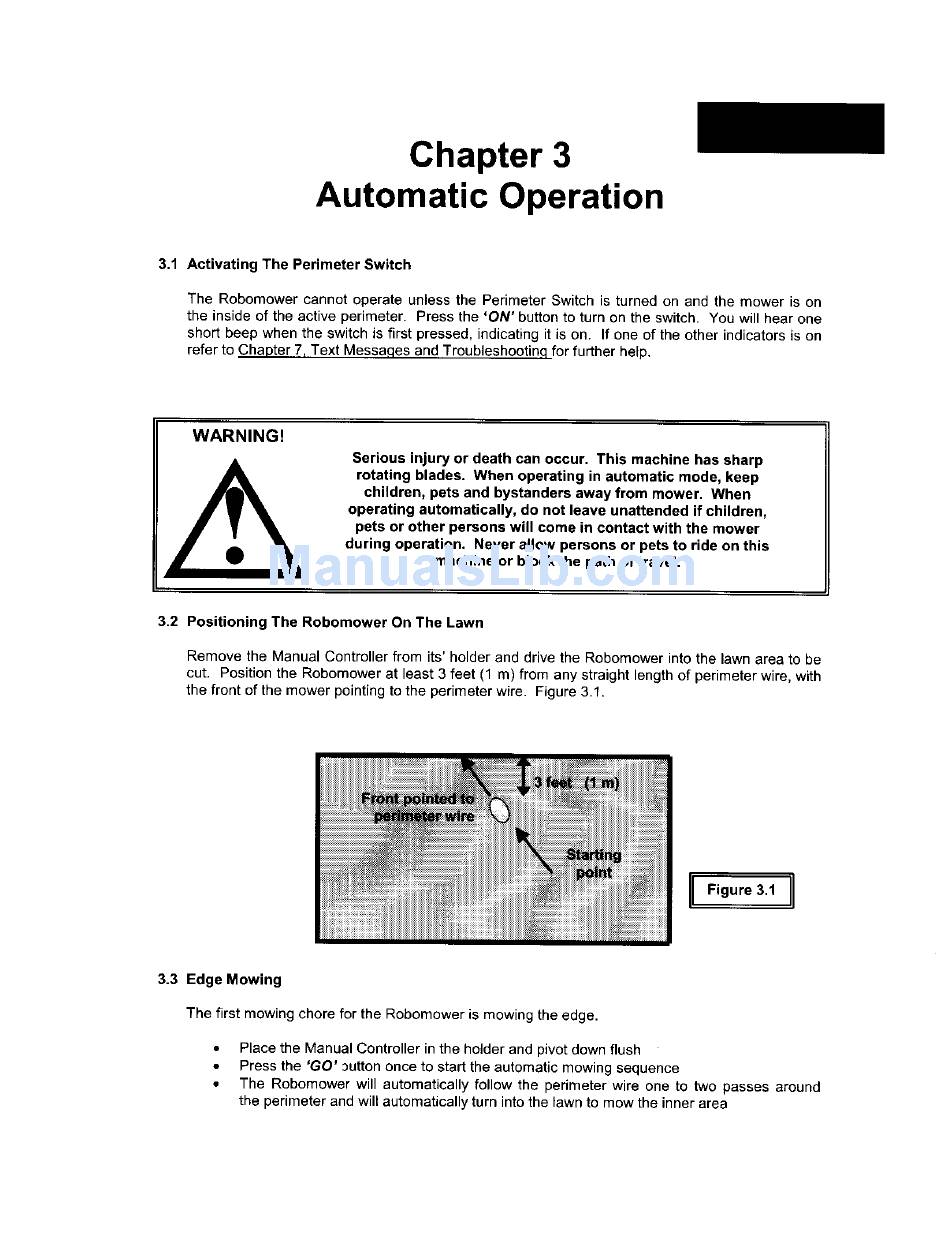

Automatic Operation - Friendly Robotics Robomow RL850 Operating & Safety Manual

Chapter 3
Automatic Operation
3.1 Activating The Perimeter Switch
The Robomower cannot operate unless the Perimeter Switch is turned on and the mower is on
the inside of the active perimeter. Press the 'ON" button to turn on the switch. You will hear one
short beep when the switch is first pressed, indicating it is on. If one of the other indicators is on
refer to Chapter 7, Text Messaqes and Troubleshootinq for further help.
WARNING!
Serious injury or death can occur. This machine has sharp
rotating blades. When operating in automatic mode, keep
children, pets and bystanders away from mower. When
operating automatically, do not leave unattended if children,
pets or other persons will come in contact with the mower
during operation. Never allow persons or pets to ride on this
machine or block the path of travel.
3.2 Positioning The Robomower On The Lawn
Remove the Manual Controller from its' holder and drive the Robomower into the lawn area to be
cut. Position the Robomower at least 3 feet (1 m) from any straight length of perimeter wire, with
the front of the mower pointing to the perimeter wire. Figure 3.1.
IIFigure31 II
3.3 Edge Mowing
The first mowing chore for the Robomower is mowing the edge.
• Place the Manual Controller in the holder and pivot down flush
• Press the "GO' 3utton once to start the automatic mowing sequence
• The Robomower will automatically follow the perimeter wire one to two passes around
the perimeter and will automatically turn into the lawn to mow the inner area
