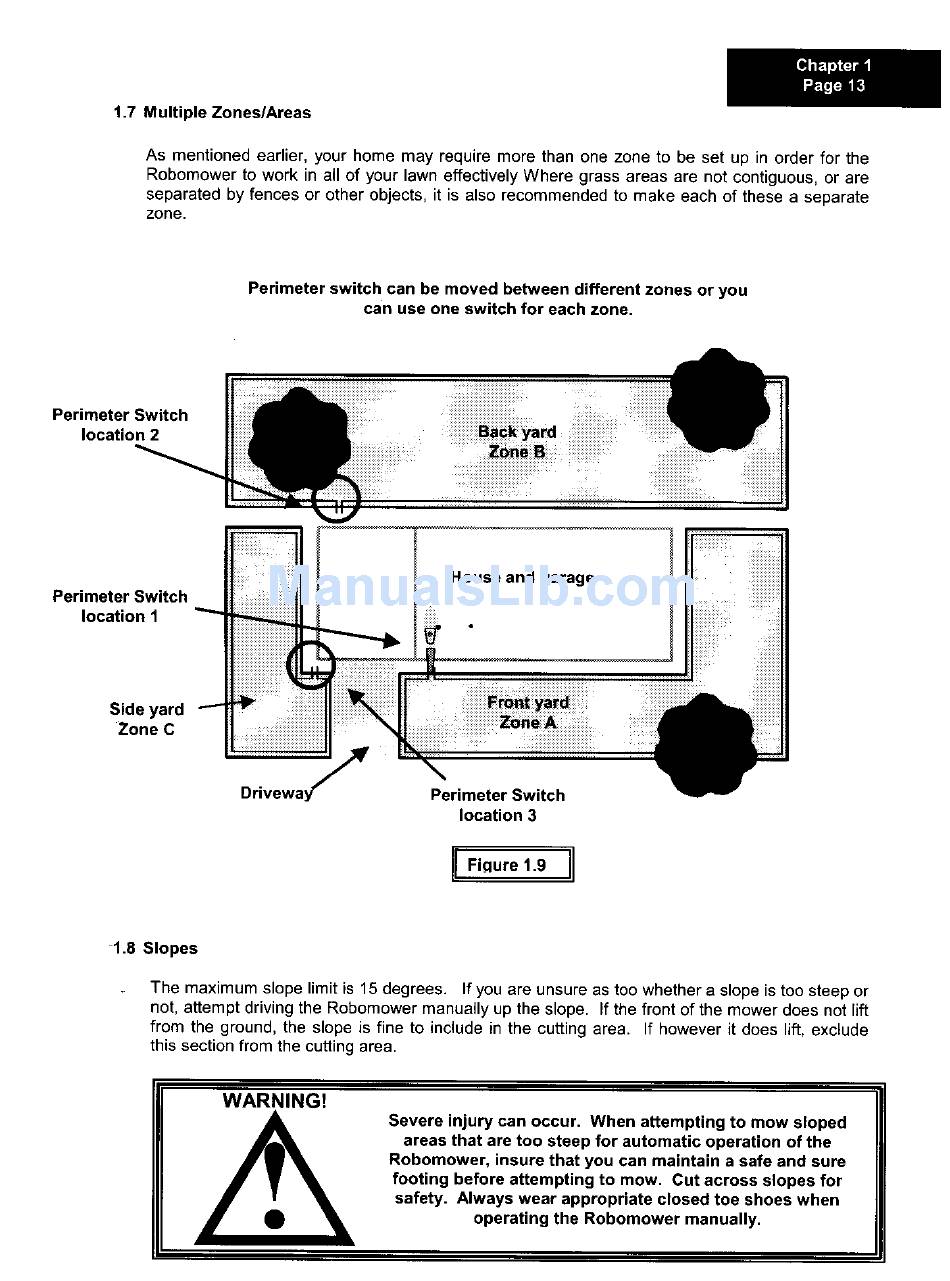

1.7Multiple Zones/Areas
As mentioned earlier, your home may require more than one zone to be set up in order for the
Robomower to work in all of your lawn effectively Where grass areas are not contiguous, or are
separated by fences or other objects, it is also recommended to make each of these a separate
zone.
Perimeter switch can be moved between different zones or you
can use one switch for each zone.
Perimeter Switch
location 2
Perimeter Switch
location 1
Side yard
Zone C
House and garage
Perimeter Switch
location 3
1.8 Slopes
The maximum slope limit is 15 degrees. If you are unsure as too whether a slope is too steep or
not, attempt driving the Robomower manually up the slope, if the front of the mower does not lift
from the ground, the slope is fine to include in the cutting area. If however it does lift, exclude
this section from the cutting area.
Severe injury can occur. When attempting to mow sloped
areas that are too steep for automatic operation of the
Robomower, insure that you can maintain a safe and sure
footing before attempting to mow. Cut across slopes for
safety. Always wear appropriate closed toe shoes when
operating the Robomower manually.
