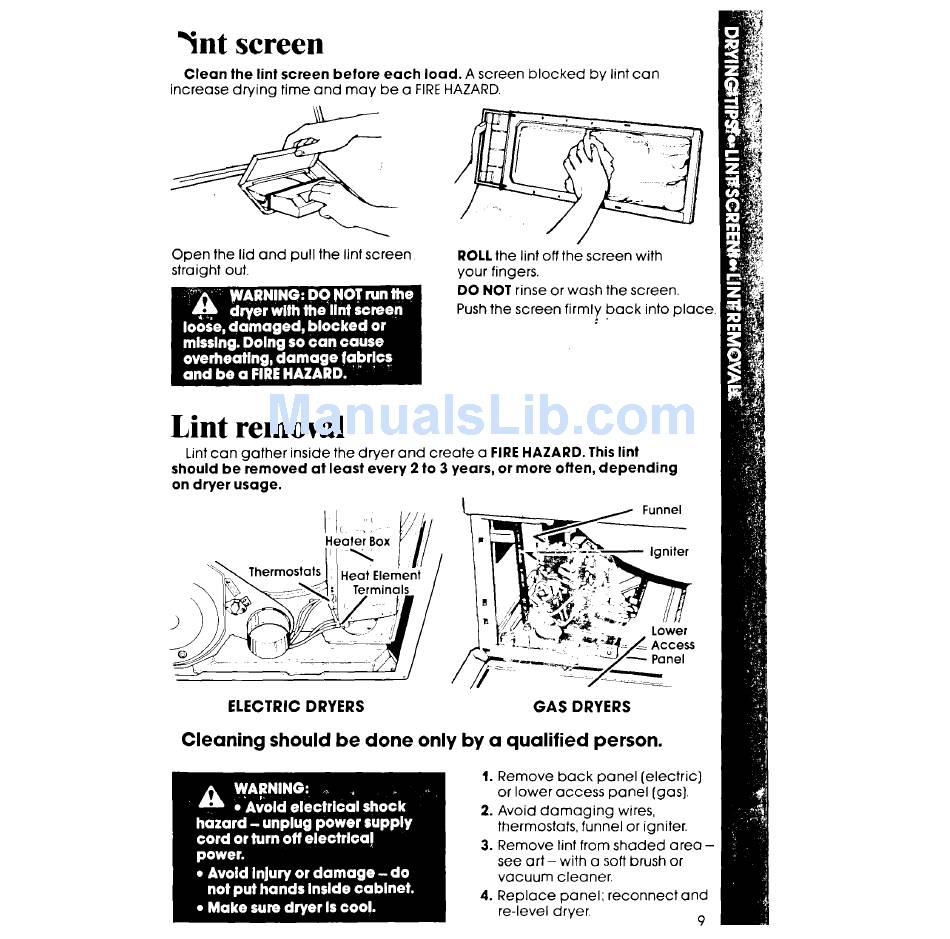

Lint Screen; Lint Removal - Whirlpool LE5200XT Use & Care Manual

"int screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIREHAZARD.
Open the lid and pull the lint screen
straight out.
ROLL the lint off the screen with
your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly back into place.
w ,
Lint removal
Lint can gather inside the dryer and create a FIRE HAZARD. This lint
should be removed at least every 2 to 3 years, or more often, depending
on dryer usage.
Thermostats
Heat Element
/
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
1. Remove back panel [electric]
or lower access panel [gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art- with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer. 9
