Connecting to External Equipment

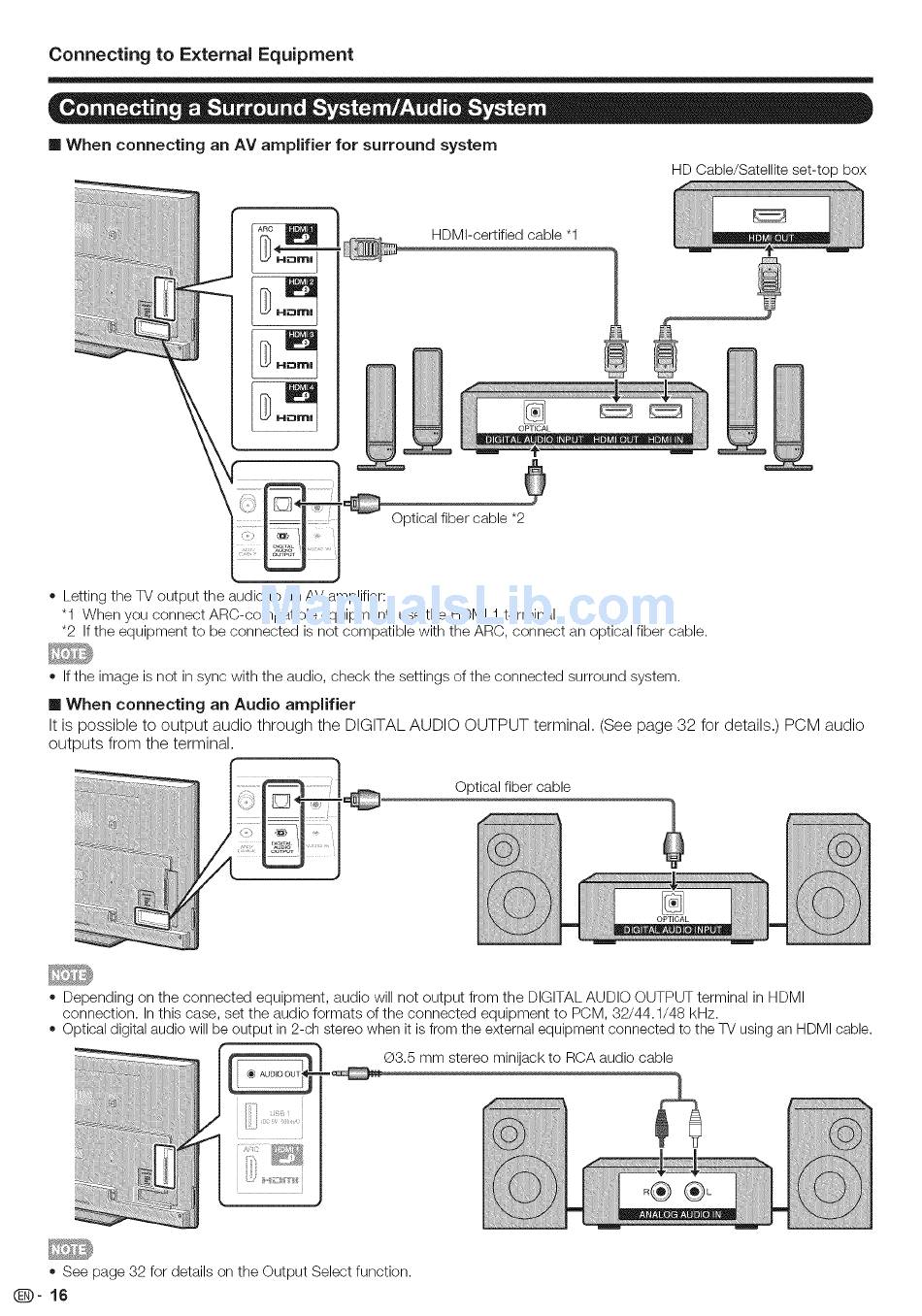

m When connecting an AV amplifier for surround system
HD Cable/Satelliteset-top box
HDMI-certified cable "1
Optical fiber cable *2
Letting the TV output the audio to an AV amplifier:
"1 When you connect ARC-compatible equipment, use the HDMI 1 terminal.
*2 If the equipment to be connected is not compatible with the ARC, connect an optical fiber cable.
Ifthe image is not in sync with the audio, check the settings of the connected surround system.
m When connecting an Audio amplifier
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 32 for details.) PCM audio
outputs from the terminal.
Optical fiber cable
_,==
/ii-i ........
Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI
connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.
Optical digital audio will be output in 2-ch stereo when it is from the external equipment connected to the W using an HDMI cable.
®3.5 mm stereo minijack to RCA audio cable
=_
See page 32 for details on the Output Select function.
