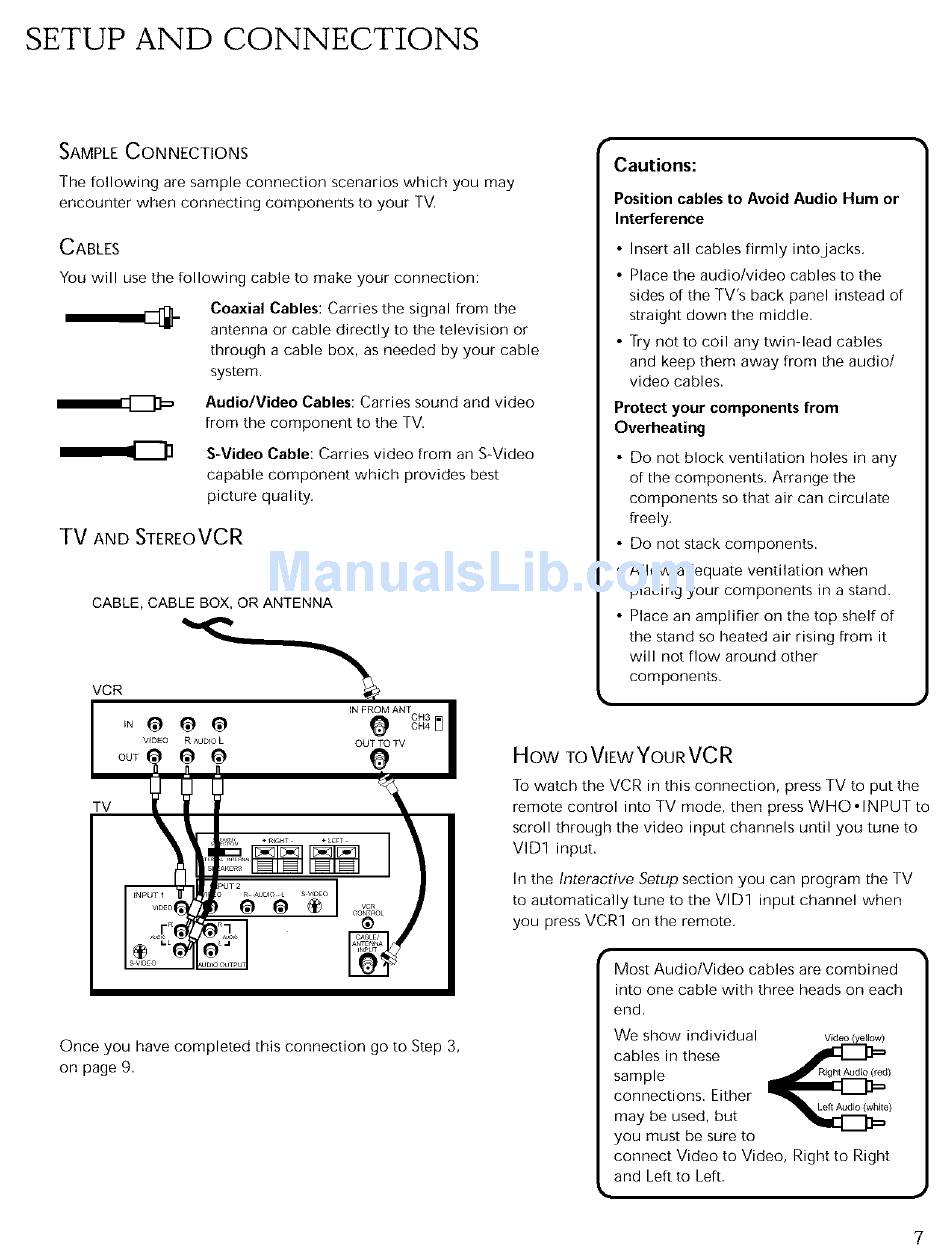

SETUP AND CONNECTIONS
SAMPLE CONNECTIONS
The following are sample connection scenarios which you may
encounter when connecting components to your TV.
CABLES
You will use the following cable to make your connection:
Coaxial Cables: Carries the signal from the
antenna or cable directly to the television or
through a cable box, as needed by your cable
system.
Audio/Video Cables: Carries sound and video
from the component to the TV.
S-Video Cable: Carries video from an S-Video
capable component which provides best
picture quality.
TV
AND STEREoVCR
CABLE, CABLE BOX, OR ANTENNA
Once you have completed this connection go to Step 3,
on page 9.
Cautions:
Position cables to Avoid Audio Hum or
Interference
• Insert all cables firmly into jacks.
• Place the audio/video cables to the
sides of the TV's back panel instead of
straight down the middle.
• ]ry not to coil any twin-lead cables
and keep them away from the audio/
video cables.
Protect your components from
Overheating
• Do not block ventilation holes in any
of the components. Arrange the
components so that air can circulate
freely.
• Do not stack components.
• Allow adequate ventilation when
placing your components in a stand.
• Place an amplifier on the top shelf of
the stand so heated air rising from it
will not flow around other
components.
How TOVIEwYouRVCR
]o watch the VCR in this connection, press TV to put the
remote control into TV mode, then press WHO,INPUT to
scroll through the video input channels until you tune to
VlD1 input.
In the Interactive Setup section you can program the TV
to automatically tune to the VlD1 input channel when
you press VCR1 on the remote.
Most Audio/Video cables are combined
into one cable with three heads on each
end.
We show individual Video(eHow)
cables in these
sample _iRight Audlo (red)
connections. Either
may be used, but )
you must be sure to
connect Video to Video, Right to Right
and Left to Left,
7
