Setup and Operation, cont'd

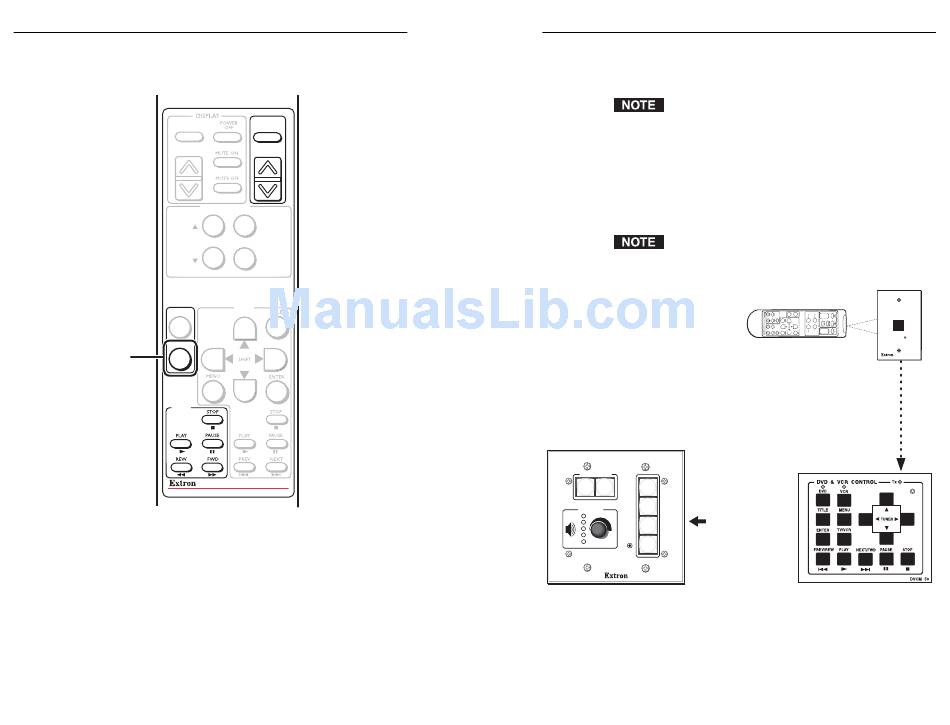

The following fi gure shows the buttons that become
available when VCR mode is selected:
POWER
ON
VOL
VOL
DVD
VCR
Press this
button first.
VCR
VCR control buttons on the IR 452
2-14 IR 452 • Setup and Operation
TV/VCR
CHANNEL
FRONT PANEL
PC
VIDEO
DVD
IR 452
SYSTEM REMOTE

Controlling the MLC 104

The IR 452 can control an MLC 104 through a DVCM 50 that is
connected to the MLC rear panel host port.
Refer to the DVCM 50 User's Manual for wiring
instructions.

IR 452 to MLC 104 communication process

The following occurs when you press a button on the IR 452:
1. An IR signal goes from the button to the IR Link or IRL 20,
then to the DVCM.
2. The DVCM interprets the IR signal and responds to it by
sending the appropriate SIS command to the MLC 104.
You do not need to program any buttons on the
DVCM 50 for it to interpret the signals it receives from
the IR 452.
PROJECTOR
ON OFF VIDEO
1
AUX
2
VOLUME VIDEO
SIS commands
PC
from DVCM 50
3
CONFIG
4
MUTE
MLC 104
Remote control of the MLC 104
3. The MLC 104 activates the button on its front panel that
is associated with the SIS command it receives. When the
button is activated, the command programmed to it is sent
to the projector or display device.
IR 452 • Setup and Operation
SIGNAL
SIGNAL
IR 452
IR LINK IR LINK
IR Link
CONFIG
DVCM 50
2-15
