Example 2: Add a video tie to a set of video and audio ties

The following steps show an example in which a new video tie is added to the
current configuration. The example shows the front panel indications that result
from your actions.
This example assumes that you have performed example 1.

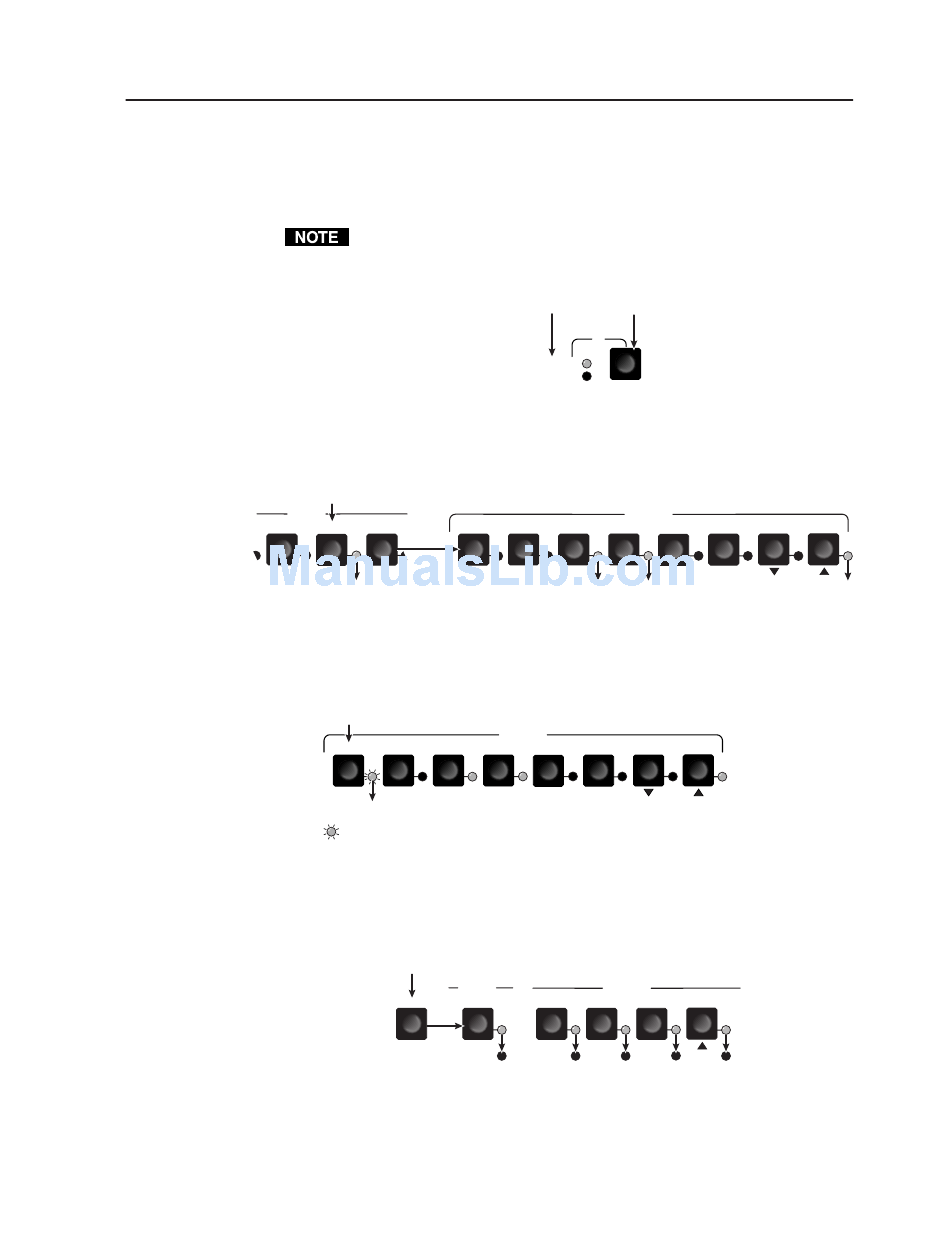

1. Select video only for the tie (figure 3-8).
The video LED lights when video is selected.
The audio LED is off when audio is deselected.
Figure 3-8 — Select video only
2. Press and release the Input 5 button (figure 3-9).
Press and release the Input 5 button.
INPUTS
4 5 6
The Input 5 LED lights to
indicate that input 5 is selected.
Figure 3-9 — Select an input
3. Press and release the Output 1 button (figure 3-10).
Press and release the Output 1 button.
1 2
The Output 1 LED blinks to indicate that the selected input will be tied to this output.
= Blinking LED
Figure 3-10 — Select the output
4. Press and release the Enter button (figure 3-11).
Press the Enter button to
confirm the configuration
change.
ENTER
Figure 3-11 — Press the Enter button
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation
Press the button to cycle
through the selections.
I/O
VID
AUD
1 2 3 4
The Output 3, Output 4, and Output 8 LEDs light to indicate the ties created in
example 1.
OUTPUTS
3 4 5 6
The LEDs for the selected input, the selected outputs,
and the tied outputs light steadily for approximately 1
second to indicate the tie and then go out.
INPUTS OUTPUTS
5 1 3
OUTPUTS
6
5 7
7 8
4 8
1 second
8
3-9
