Remote Control, cont'd

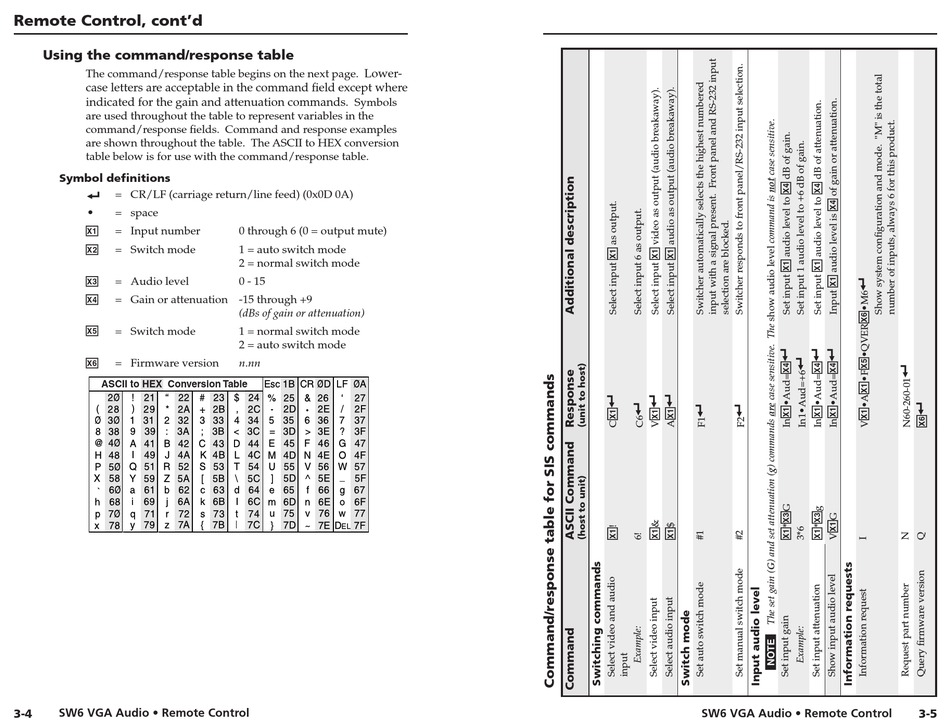

Using the command/response table

The command/response table begins on the next page.
case letters are acceptable in the command field except where
indicated for the gain and attenuation commands.
are used throughout the table to represent variables in the
command/response fields. Command and response examples
are shown throughout the table. The ASCII to HEX conversion
table below is for use with the command/response table.

Symbol definitions

= CR/LF (carriage return/line feed) (0x0D 0A)
]
• = space
X!
= Input number
X@
= Switch mode
X#
= Audio level
X$
= Gain or attenuation -15 through +9
X%
= Switch mode
X^
= Firmware version
ASCII to HEX Conversion Table
SW6 VGA Audio • Remote Control
3-4
Lower-
Symbols
0 through 6 (0 = output mute)
1 = auto switch mode
2 = normal switch mode
0 - 15
(dBs of gain or attenuation)
1 = normal switch mode
2 = auto switch mode
n.nn
•
SW6 VGA Audio • Remote Control 3-5
