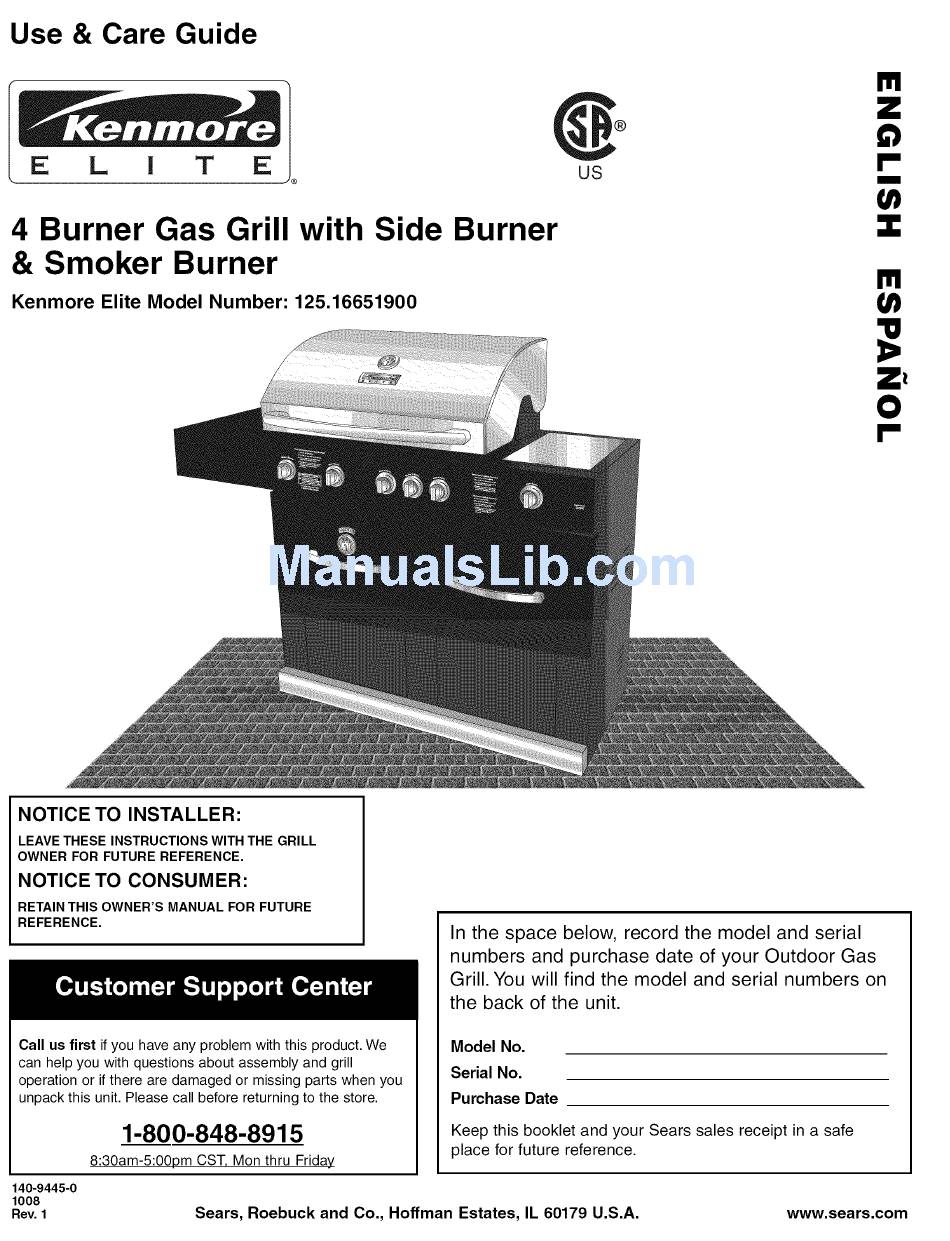

Use & Care Guide
4 Burner Gas Grill with Side
& Smoker Burner
Kenmore
Elite Model Number:
125.16651900
Burner
US
ffl
U}
O
NOTICE TO INSTALLER"
LEAVE THESE INSTRUCTIONS WITH THE GRILL
OWNER FOR FUTURE REFERENCE.
NOTICE TO CONSUMER"
RETAINTHIS OWNER'S MANUAL FOR FUTURE
REFERENCE.
Call us first if you have any problem with this product. We
can help you with questions about assembly and grill
operation or if there are damaged or missing parts when you
unpack this unit. Please call before returning to the store.
1-800-848-8915
8:30am-5:00pm
CST, Mon thru Friday
140-9445-0
1008
Rev. 1
In the space below, record the model and serial
numbers
and purchase
date of your Outdoor
Gas
Grill. You will find the model and serial numbers
on
the back of the unit.
Model No.
Serial No.
Purchase Date
Keep this booklet and your Sears sales receipt in a safe
place for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE 125.16651900 and is the answer not in the manual?

Questions and answers

Related Manuals for Kenmore ELITE 125.16651900

Summary of Contents for Kenmore ELITE 125.16651900

  • Page 1 Use & Care Guide 4 Burner Gas Grill with Side Burner & Smoker Burner Kenmore Elite Model Number: 125.16651900 NOTICE TO INSTALLER" LEAVE THESE INSTRUCTIONS WITH THE GRILL OWNER FOR FUTURE REFERENCE. NOTICE TO CONSUMER" RETAINTHIS OWNER'S MANUAL FOR FUTURE REFERENCE.
  • Page 2 Kenmore Elite Two-Year Full Warranty If this Kenmore Elite grill fails due to a defect in material or workmanship within two years from the date of DO NOT store or use gasoline or other purchase, call 1-800-4-MY-HOME®...
  • Page 3 • Never use natural gas in a unit designed for Visually check burner flames for proper liquid propane gas. operation (see pictorial in "Lighting Procedures"). Spiders or other insects can • Never use charcoal or wood briquets in a gas nest in the burner causing gas blockage.

  • Page 4: Installation Information

    FOR OUTDOOR USE ONLY.DO NOT • LP GAS CYLINDER (NOT SUPPLIED WITH operate indoors or in an enclosed area THIS GRILL). such as a garage, shed or breezeway. • The LP cylinder is available for purchase at the Useyour grill OUTDOORSin a well same location the grill was purchased ventilated space awayfrom dwellings or The LP (Liquid Propane) gas cylinder...
  • Page 5 Side Table Grease Tray Make sure you have all items listed under CARTON CONTENTS Grease Cup Bracket and HARDWARE BAG CONTENTS before you begin the assembly process. Grease Cup Smoker Cooking Grills Qty. Support Racks Grill Body Assembly Wood Chip/Water Pan Heat Diffusers Wood Chip/Water Pan Support Warming Rack...
  • Page 6 Choose a good, cleared assembly area -_'-"Warming Rack and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. g Grills ,_, CAUTION: Some parts may contain sharp edges. Wear protective gloves if Diffusers necessary.
  • Page 7 Step 6 Slide grease cup into grease cup bracket located under grease tray on backside of grill. Step 7 Attach the left side table to the left side of grill body. Place left side table over bolts and slide down, then tighten bolts securely.
  • Page 8 Completed Assembly...

  • Page 9: Filling The Lp Gas Cylinder

    When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, FILLING THE LP GAS CYLINDER: Spheres and Tubes for Transportation of Dangerous...

  • Page 10: Hose And Regulator

    HOSE AND REGULATOR: Your grill is equipped with a Type 1 connection device with the following features: CONNECTING HOSE AND REGULATOR The system will not allow gas flow from the cylinder until a TO AN LP GAS CYLINDER positive connection to the valve has been made.

  • Page 11: Checking For Leaks

    Ensure that the grill is properly assembled. Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. If it is evident there is excessive WHEN TO PERFORM A LEAK TEST: abrasion or wear, or the hose is cut, it must be replaced prior the grill being used.
  • Page 12 MATCH LIGHTING THE SIDE BURNER: Note: If burner does not light or flame is too low, you may have spider or other insect blockage in burner, or the flow limiting device has been activated. See "Burner Open the lid to the burner before lighting. Assembly/Maintenance"...
  • Page 13 THE INTERIOR LIGHT: • The interior light provides outdoor lighting when operating grill at night. • The light can be operated from the push button light switch located on the front control panel. Note: When replacing bulb, Never use Charcoal or Lighter Fluid inside your Gas Grill. unscrew lens and pull Read and follow all warnings and instructions contained in old bulb straight out of...

  • Page 14: Using The Smoker

    Cooking Tips - Flavoring wood: USING THE SMOKER • Small wood chips work best inside the wood chip box. In manufacturing and preserving the components of your smoker, • Use dry hardwoods such as hickory, pecan, apple, cherry, oil residue may be present on the burner and cooking surfaces or mesquite.

  • Page 15: Helpful Hints

    HELPFUL HINTS BURNER ASSEMBLY/MAINTENANCE • If you pre cook meat or poultry, do so immediately before Although your burners are constructed of stainless steel, they grilling may corrode as a result of the extreme heat and acids from cooking foods Regularly inspect the burners for cracks, •...
  • Page 16 COOKING GRILLS Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the PROBLEM CAUSE cooking grills.
  • Page 17 Electrical Wiring Diagram 12V 20W LAMP on-off transformer electric plug...
  • Page 18 Manual de uso y cuidado ® Parrilla de 4 Quemadores con Quemador Lateral y Ahumador Numero de Modelo Kenmore Elite: 125.16651900 AVISO PARA EL INSTALADOR: ENTREGUE ESTAS INSTRUCCIONES AL PROPIETARIO DE LA PARRILLA PARA REFERENCIA FUTURA. AVISO PARA EL PROPIETARIO: GUARDE ESTAS INSTRUCCIONES DE LA PARRILLA PARA REFERENCIA FUTURA.
  • Page 19 Garantfa Kenmore Elite de Dos Afios Completo No guarde ni use gasolina ni otros Ifquidos Si este producto falla debido a un defecto en material o a la...
  • Page 20 • Nunca use gas natural en una unidad disehada para NO use la parrilla bajo la influencia de alcohol o gas de propano liquido. drogas. Nunca use briquetas de carb6n en una parrilla de gas. La parrilla est_ caliente cuando est_ en uso. Para evitar Los pedacitos de madera para dar sabor se deben las quemaduras: colocar en una cajita de fumar de metal para contener...
  • Page 21 • PARA USOEXTERIOR U NICAMENTE. CILINDRO DE GAS DE PROPANO NO opere la parrilla en areas interiores o en un area cerrada LIQUIDO (NO SE INCLUYE CON ESTA PARILLA)" como un garaje, cobertizo o pasadizo. • El cilindro de propano liquido puede comprarse en el Use la parrilla AL AIRE LIBRE en un espacio bien mismo lugar donde compr6 la parrilla.
  • Page 22 Mesa Lateral Bandeja para la Grasa Soporte para el Recipiente para la Grasa AsegtTrese de tener todas las piezas enumeradas bajo "CONTENIDO DE LA CAJA DE CARTON" y CONTENIDO Recipiente para la Grasa LA BOLSA de ferreterfa antes de comenzar con el ensamblaje. Rejillas para Cocinar del Ahumador Cantidad Estantes de Soporte...
  • Page 23 Elija un lugar adecuado y despejado para armar la parrilla y p[dale a un amigo que le ayude. Tienda cart6n sobre el suelo para proteger el acabado de la Rejillas para Cocinar parrilla y el Area de armado. PRECAUClON: Algunas partes pueden tener bordes afilados.
  • Page 24 Paso 6 Deslice el recipiente para la grasa dentro del soporte para el recipiente para la grasa ubicado debajo de la bandeja para la grasa en la parte posterior de la parrilla. Paso 7 Anexe la mesa lateral izquierda al lateral izquierdo del cuerpo de la parrilla.
  • Page 25 Armada...
  • Page 26 Cuando compre o cambie un cilindro para la parrilla de gas, debe estar construido y marcado de acuerdo con las especificaciones para cilindros de gas de propano Ifquido del Departamento Transporte (DOT) de EE.UU. o la Norma Nacional de CanadA, CAN/CSA-B339: Cilindros, esferas y tubos para el transporte...

  • Page 27: Manguera Y Regulador

    MANGUERA Y REGULADOR: Su parrilla esta equipa de un dispositivo con conexi6n de Tipo 1 con las caracterfsticas siguientes: CONEXION DE LA MANGUERA Y REGULADOR El sistema no permitir__ que fluya gas desde el cilindro hasta que A UN CILINDRO DE GAS DE PROPANO haya una conexi6n positiva a la v__lvula.
  • Page 28 AsegtJrese de que la parrilla est,_ armada correctamente. Inspeccione la manguera de suministro de gas para detectar quemaduras, rozaduras, dobleces y verificar la trayectoria correcta antes de cada uso. Si hay evidencia de abrasi6n CUANDO REALIZAR UNA PRUEBA DE desgaste excesivo, o si la manguera est,_ cortada,...
  • Page 29 ENCENDIDO DE LA HORNILLA LATERAL Nota: Si la hornilla no se enciende o la llama es muy baja, quiz__s est_ bloqueada con un insecto o se haya activado el CON UN CERILLO: dispositivo limitador de flujo. Consulte Abra la tapa de la hornilla lateral antes de encenderla.
  • Page 30 PARA REDUCIR AL M[NIMO LAS LLAMARADAS: • Recorte el exceso de grasa de la carne antes de cocinarla. • Cocine la carne con alto contenido de grasa (polio o puerco) con llama suave o indirecta. • Verifique que la parrilla est,_ sobre suelo nivelado y que la grasa puede salir de la parrilla...
  • Page 31 Recomendaciones de cocimiento - LeSa para dar sabor: USANDO EL AHUMADOR Los pedacitos de leSa imparten mejor sabor si se dejan dentro de la caja. En la fabricaci6n y preservaci6n de los componentes de su ahumador, el residue del aceite puede estar presente en la hornilla Use leSa seca de madera fina de nogal americano, pacana,...

  • Page 32: Limpieza Y Mantenimiento

    RECOMENDACIONES OTILES INSTALACI(SN/M ANTENIMIENTO DE LAS HORNILLAS • Si bien las hornillas est__n fabricadas de acero Inoxidable, • Si precocina carneo polio, h__galo inmediatamente antes de pueden oxidarse debido al calor extremo y a los __cidos de los cocinarlo en la parrilla. alimentos.

  • Page 33: Transporte Y Almacenaje

    REJILLAS PARA COClNAR • Lfmpielas con agua y detergente de jab6n suave. Se puede usar un cepillo con cerdas de lat6n o una esponja de limpieza de nil6n para quitar los residuos de las superficies de acero inoxidable. use cerdas de acero para limpiar las parrillas.
  • Page 34 Esquema El_ctrico 12V 20W L: A,j encendido-apagado transformador enchufe el_ctrico...
  • Page 35 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
