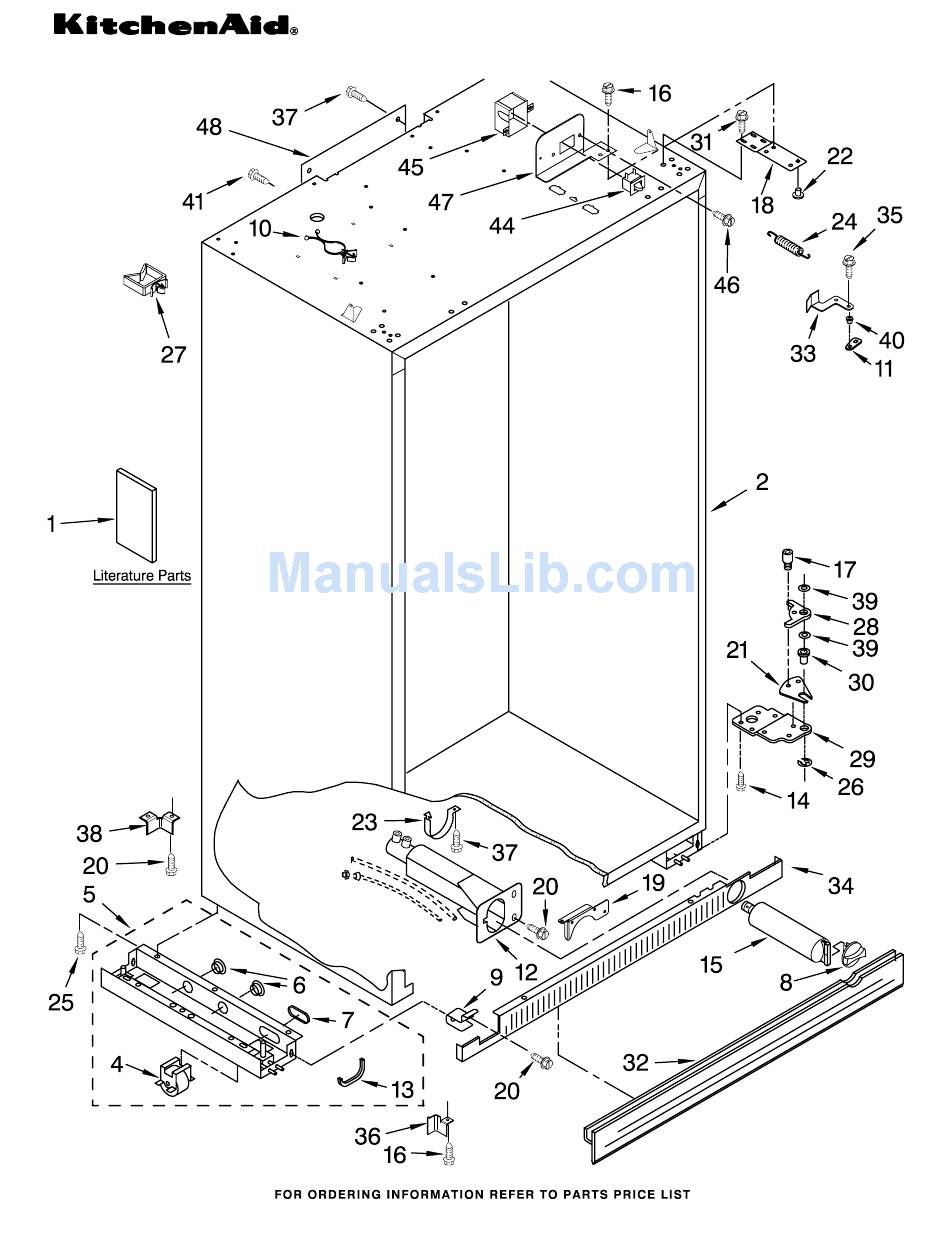

- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSO36FMX03 (Etched Aluminum) Part No. W10115574 09−06 Litho In U.S.A. (dmm)
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Skirt−Grille, 2005004 Grommet, Crossover 2320531 Use & Care Guide Bottom Tube 2209024B Black 2307362 Energy Label 3400525 Screw Extension Arm, 2320619 Service & Wiring 2255709 Filter, Water Door Closer Sheet... - Page 3 CABINET TRIM PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2316686 Cabinet, Trim (Bottom) 486194 Screw 2313991 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side 489464 Screw W10115574...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2266955 Spacer, Ice Door 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice 8533929 Screw 2266930 Bucket, Ice 2302870 Cover, Shelf... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle, Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2302771 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center 2302727 Shield, Light 2162085 Socket, Light 2255743 Light Bulb 486194 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2259422X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2320678 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2215910 Grommet, Flexible 489348 Clamp 2259434X Grille−Trim,...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side Trim, Glass Front...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2220904 Gasket (2) Block, Fan Scroll 2266801 Deflector, Air Evaporator Cover 2209481 Right 2169142 Fan Blade 2302849 Support, Air Duct 2209066 Left 2223733 Retainer, 2317088 Harness, Evap Fan...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Trim, Door (Handle Side) 2259040X Etched Aluminum Cover, Screw...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574... - Page 16 FREEZER DOOR PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Item #14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Cover, Screw (Handle Side) 2259365X Etched Aluminum Trim, Door (Handle Side) 2259041X Etched Aluminum Cover, Screw...
- Page 17 UPPER UNIT PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574...
- Page 18 UPPER UNIT PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2304175 Inverter Box 2206036 Motor, Fan Following Parts Not Illustrated 489373 Screw, Compressor 2190685 Blade, Fan Mounting (4) and Optional Parts Not Included 2003169 Orifice, Fan 2302967 Compressor 2300190 Tube, Drier...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259352 Tube, Discharge 9791833 Clip, Thermistor 2306092 Evaporator 2306387 Heater, Defrost 1113048 Clamp, Heater (2)
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSO36FMX03 (Etched Aluminum) W10115574... - Page 22 ICEMAKER PARTS For Model: KSSO36FMX03 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488500 Screw 628228 Mold & Heater 486194 Screw 2320597 Shield, Valve (Also Order 2259064 Cover, Fill Tube 542638 Silicone Electrical 487539 Screw Grease) 2310136 Wire Assembly, 2320638 Complete Icemaker 626676 Motor Icemaker...
