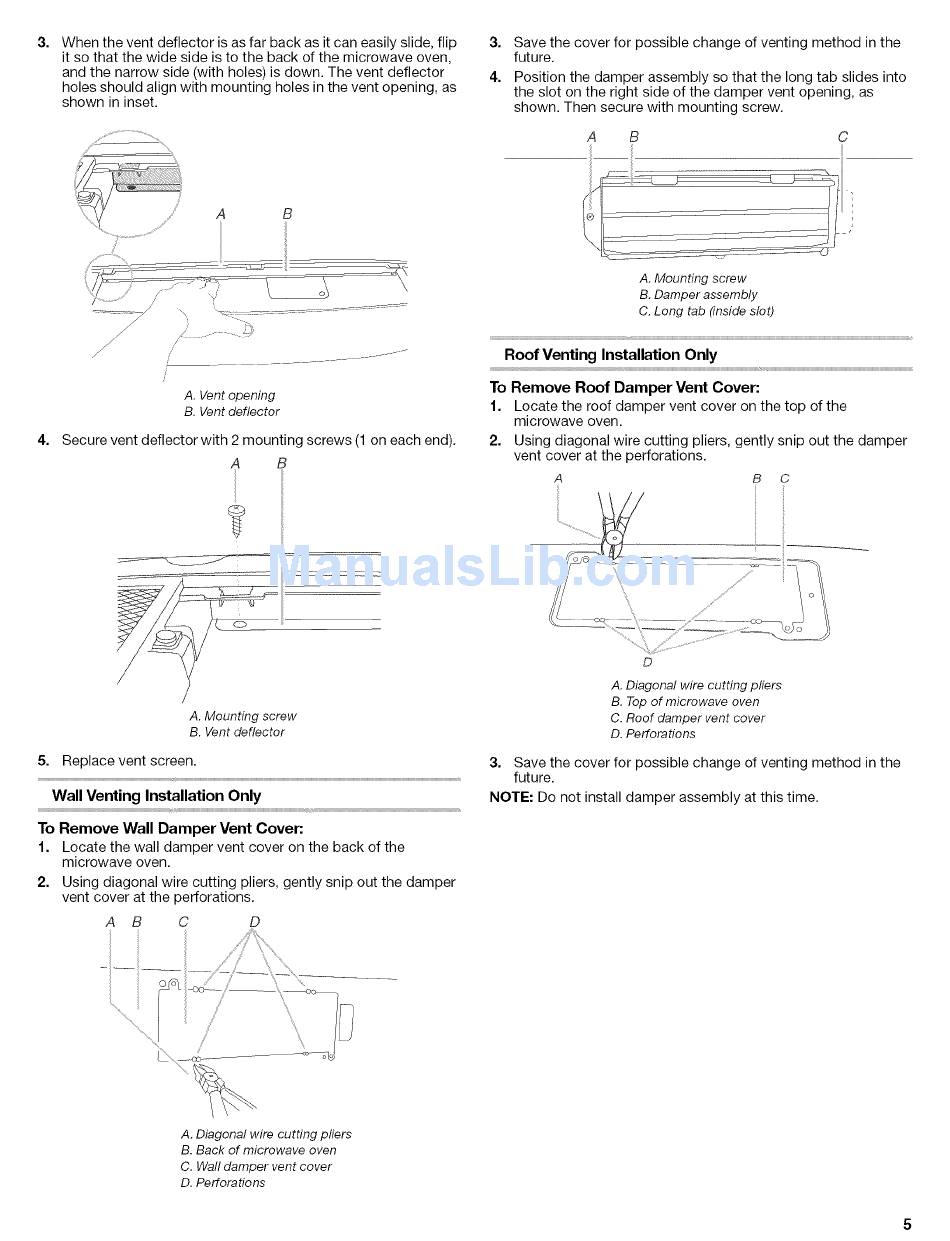

When the vent deflector is as far back as it can easily slide, flip
it so that the wide side is to the back of the microwave oven,
and the narrow side (with holes) is down. The vent deflector
holes should align with mounting holes in the vent opening, as
shown in inset.
3. Save the cover for possible change of venting method in the
future.
4. Position the damper assembly so that the long tab slides into
the slot on the right side of the damper vent opening, as
shown. Then secure with mounting screw.
A
c
ii
4.
.J
/
i
A. Vent opening
B. Vent deflector
Secure vent deflector with 2 mounting screws (1 on each end).
A
B
iiiii
A. Mounting screw
B. Vent deflector
5. Replace vent screen.
Wall Venting Installation
Only
To Remove Wall Damper Vent Cover:
1. Locate the wall damper vent cover on the back of the
microwave oven.
2. Using diagonal wire cutting pliers, gently snip out the damper
vent cover at the perforations.
A
B
C
D
A. Mounting screw
B. Damper assembly
C. Long tab (inside slot)
Roof Venting Installation
Only
To Remove
Roof Damper Vent Cover:
1. Locate the roof damper vent cover on the top of the
microwave oven.
2. Using diagonal wire cutting pliers, gently snip out the damper
vent cover at the 3erforations.
B
C
i
i
D
A. Diagonal wire cutting pliers
B. Top of microwave
oven
C. Roof damper vent cover
D. Perforations
3. Save the cover for possible change of venting method in the
future.
NOTE: Do not install damper assembly at this time.
A. Diagonal wire cutting pliers
B. Back of microwave oven
C. Wall damper vent cover
D. Perforations
