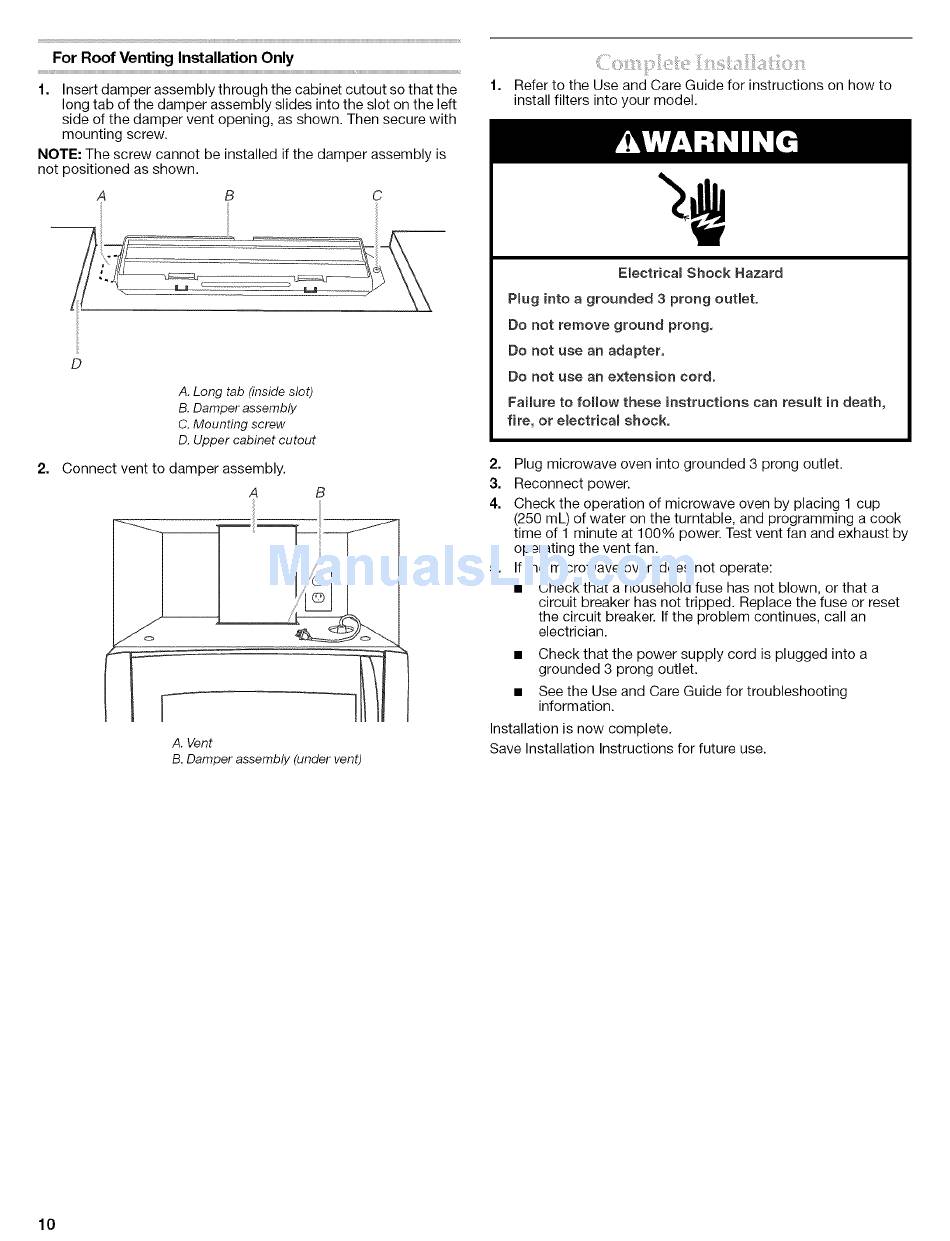

For Roof Venting Installation
Only
1. Insert damper assembly through the cabinet cutout so that the
long tab of the damper assembly slides into the slot on the left
side of the damper vent opening, as shown. Then secure with
mounting screw.
NOTE: The screw cannot be installed if the damper assembly is
not positioned as shown.
B
D
A. Long tab (inside slot)
B. Damper assembly
C. Mounting screw
D. Upper cabinet cutout
2. Connect vent to damper assembly.
A
B
F
A. Vent
B. Damper assembly (under vent)
1. Refer to the Use and Care Guide for instructions
on how to
install filters into your model.
Electrical
Shock Hazard
Plug into a grounded
3 prong outlet,
Do not remove ground prong,
Do not use an adapter,
Do not use an extension
cord,
Failure to follow
these instructions
can result in death,
fire, or electrical
shock,
2. Plug microwave oven into grounded 3 prong outlet.
3. Reconnect power.
4. Check the operation of microwave oven by placing 1 cup
(250 mL) of water on the turntable, and programming
a cook
time of I minute at 100% power. Test vent fan and exhaust by
operating the vent fan.
5. If the microwave oven does not operate:
•
Check that a household fuse has not blown, or that a
circuit breaker has not tripped, Replace the fuse or reset
the circuit breaker. If the problem continues, call an
electrician.
•
Check that the power supply cord is plugged into a
grounded 3 prong outlet.
•
See the Use and Care Guide for troubleshooting
information.
Installation is now complete,
Save Installation Instructions for future use.
10
