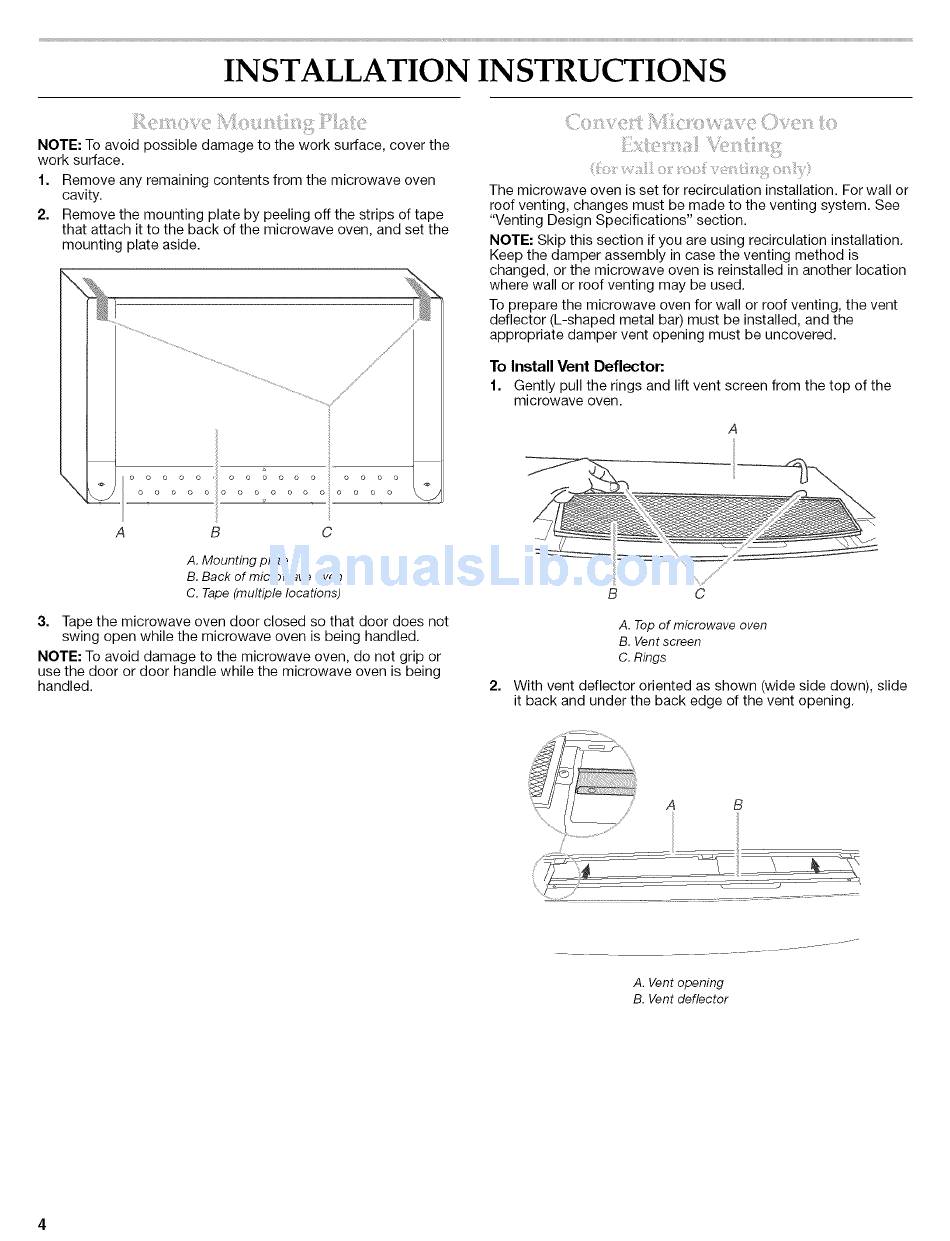

INSTALLATION
INSTRUCTIONS
iii:il ,_ii:!_
_i:_i_i_o_ii!!_
¸¸!i_i_ _ :_i_;!
_i _ iii_i _ii _!i!_i!!_
iiiiii:_'
i! ;_ii!_i_,
t_:i!!_
NOTE: To avoid possible damage to the work surface, cover the
work surface.
1. Remove any remaining contents from the microwave oven
cavity.
2. Remove the mounting plate by peeling off the strips of tape
that attach it to the back of the microwave oven, and set the
mounting plate aside.
_o_'_:
_,_
_i_
¸_ _o
>
} :
The microwave oven is set for recirculation installation. For wall or
roof venting, changes must be made to the venting system. See
"Venting Design Specifications"
section.
NOTE: Skip this section if you are using recirculation installation.
Keep the damper assembly in case the venting method is
changed, or the microwave oven is reinstalled in another location
where wall or roof venting may be used.
To prepare the microwave oven for wall or roof venting, the vent
deflector (L-shaped metal bar) must be installed, and the
appropriate damper vent opening must be uncovered.
To Install Vent Deflector:
1. Gently pull the rings and lift vent screen from the top of the
microwave oven.
A
A. Mounting plate
B. Back of microwave
oven
C. Tape (multiple locations)
3. Tape the microwave oven door closed so that door does not
swing open while the microwave oven is being handled.
NOTE: To avoid damage to the microwave oven, do not grip or
use the door or door handle while the microwave oven is being
handled.
2.
B
C
A. Top of microwave
oven
B. Vent screen
C. Rings
With vent deflector oriented as shown (wide side down), slide
it back and under the back edge of the vent opening.
¢
......................
s ¸f
B
A. Vent opening
B. Vent deflector
