Front Frame Group - Exmark FR524 Parts Manual

Item Part No. Description
1 1-513547 Spacer, Front Caster..............................2
2 1-513658 Bumper ..................................................6
3 1-513809 Bearing, Roller .......................................2
4 1-513810 Bushing, Flanged ...................................4
5 1-543509 Cone, Bearing Tapered Roller................4
6 1-543511 Seal, Grease..........................................2
7 1-633508 Washer, Spring Disc ..............................6
8 1-806005 Hairpin, Cotter........................................2
9 1-811010 Plug .......................................................2
10 63-8410 Washer ..................................................4
11 103-3898 Flat, Strut ...............................................2
12 103-3899 Flat, Strut Angle .....................................2
13 103-3900 Spacer, Strut..........................................4
14 3296-39 Nut, Nyloc 3/8-16 (52" & 60") .................5
3296-39 Nut, Nyloc 3/8-16 (72")...........................11
15 103-4882 Cap, Grease ..........................................2
16 103-9712-01 Wld, Caster Fork....................................2
17 109-2379 Asm, Front Cover W/Decal ....................1
18 3296-51 Nut, Nyloc 3/4-10 ...................................2
19 32120-47 Ring, Retaining ......................................2
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

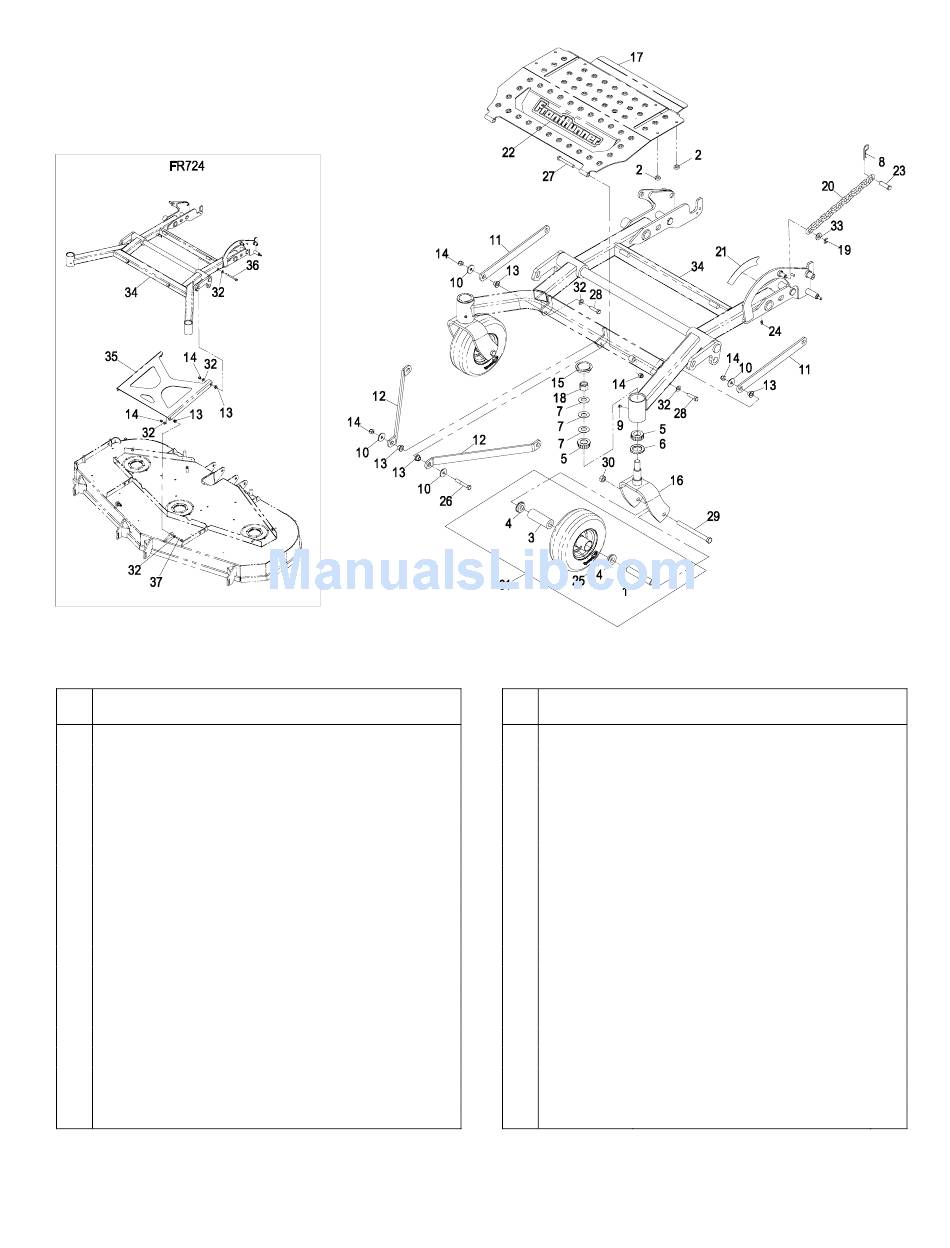

FRONT FRAME GROUP

Qty. Item Part No.
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
8
Description
109-0636 Chain, Weight Transfer.......................... 2
109-2993 Decal, Cutting Height............................. 1
109-2114 Decal, FrontRunner ............................... 1
283-40 Pin, Clevis 1/2 x 1 3/4............................ 2
302-19 Zerk, 1/4-28 Str ..................................... 4
302-61 Zerk, 45° 1/4-28..................................... 2
323-12 Screw, HH 3/8-16 x 2 1/2....................... 1
323-13 Screw, HH 3/8-16 x 2 3/4....................... 2
323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
325-20 Screw, HH 1/2-13 x 6............................. 2
3296-45 Nut, Hex 1/2-13 ..................................... 2
103-2171 Kit, Tire & Wheel Asm W/ Spacer ......... 2
3256-24 Washer, 3/8 SAE................................... 2
3256-26 Washer, 1/2 SAE................................... 2
109-4574 Asm, Front Frame W/Decal FR524 ....... 1
109-4575 Asm, Front Frame W/Decal FR604 ....... 1
109-5408 Asm, Front Frame W/Decal FR724 ....... 1
109-4455-01 Strut, Deck FR724 ................................. 1
323-16 Screw, HH 3/8-16 x 4............................. 2
323-9 Screw, HH 3/8-16 x 1 3/4....................... 2
Qty.
