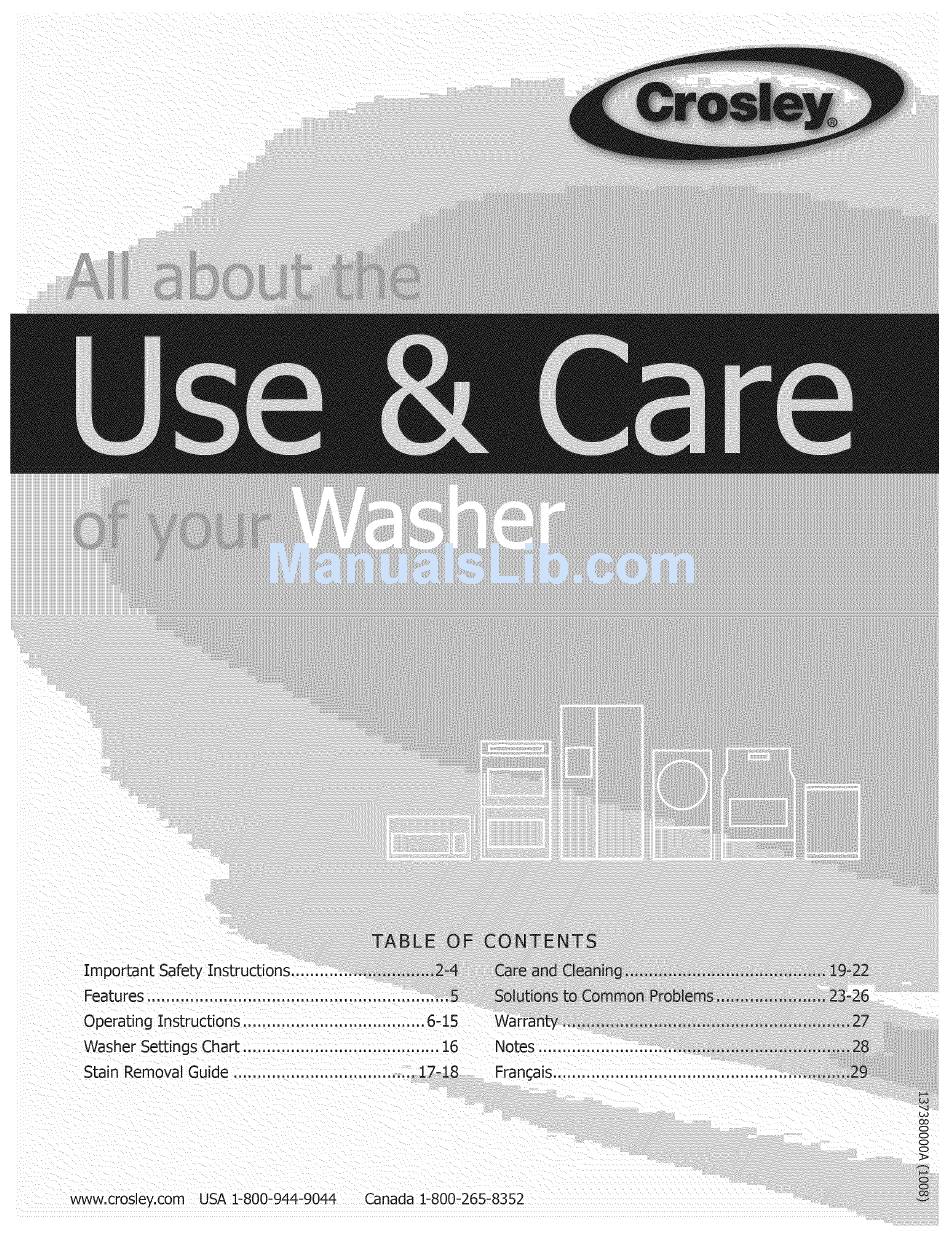

TABLE
OF CONTENTS
Important Safety Instructions ............................
2-_
_are _nd gleaning .........................
19-;
Operating Instructions ......................................
6-15
Warran_ ....................................
Washer Settings Chart .........................................
16
Notes .........................................
Stain Removal Guide ......................................
17-18
Franc_ais ............................................
:i
oo
g
o
www.crosley.com
USA 1-800-944-9044
Canada 1-800-265-8352
Advertisement
Table of Contents
Related Manuals for Crosley CFW7700LR0
Summary of Contents for Crosley CFW7700LR0
- Page 1 TABLE OF CONTENTS Important Safety Instructions ......_are _nd gleaning ......19-; Operating Instructions ........6-15 Warran_ ........Washer Settings Chart ......... Notes ......... Stain Removal Guide ........17-18 Franc_ais ..........www.crosley.com USA 1-800-944-9044 Canada 1-800-265-8352...
-
Page 2: What To Do If You Smell Gas
For your safety the following information in this manual Please read all instructions before using this washer. must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. Recognize safety symbols, words Do not store or use gasoline... -
Page 3: Prevent Fire
To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic warnings listed below, Failure to comply with these warnings could result in serious personal injuries, You can be killed or seriously injured if you don't follow these Important Safety Instructions: PREVENT FIRE PROTECT CHILDREN o Do not wash items that have been previously cleaned... - Page 4 PREVENT INJURY PREVENT INJURY AND DAHAGE TO THE WASHER - To prevent shock hazard and assure stability during To prevent serious personal injury and damage to the washer: operation, the washer must be installed and electrically grounded by a qualified service person in accordance - All repairs and servicing must be performed by an with local codes.
- Page 5 Vent Latch Stainless Steel Wash Drum Adjustable Cascading Wash Vanes Leveling Legs As an ENERGY STAR<_> Partner, the Crosley Corporation has determined that this prod- uct meets the ENERGY STAR<_ guidelines for energy efficiency.
-
Page 6: Normal Operating Sounds
Normal Operating Sounds You may or may not hear the following sounds from your new washer: A. DRAIN HOSE The washer has a flexible drain hose to carry water from the washer to the stand pipe of your home. You will hear water flowing into your stand pipe. - Page 7 Operating Your Washer, continued Prepare items for washing, Add laundry load to washer. - Empty pockets. Brush off lint and dirt. Shake out rugs and beach towels. o Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trims and ornaments. Mend rips and tears to prevent further damage during washing.
- Page 8 Operating Your Washer, continued Add laundry products to the dispenser. For best results Use a low-sudsing, high efficiency detergent to prevent oversudsing in front load washers. Look for this symbol on the detergent label: Detergent, liquid chlorine bleach and liquid fabric soft- ener will be dispensed at the proper times in the cycle.
- Page 9 Operating Your Washer, continued Other Wash Products Liquid Chlorine Bleach z_ - Color=safe bleach, water conditioner, detergent - If desired, add liquid chlorine bleach to the cham- booster and enzyme products may be added with the ber labeled "Liquid Bleach" and marked with this symbol: z_.
- Page 10 Operating Your Washer, continued when the buttons are pressed. To change the set- tings or options, press Pause, make the new selec- Select the appropriate cycle and settings for tions and press Start again. the load, To change the cycle once the cycle has begun, - Turn the cycle selector knob in either direction to press Cancel, select a new cycle, and press Start select the cycle desired.
-
Page 11: Cycle Selection
options normal casual whitest quick whLtes wash _ max sanitize _ hign _ heavy _ _h aLLergy warm _ men/urn _ normal _ de_y energy heavy/ sta_ saver butky :old _ low _ Liqht freshwate_ r_nse sanitize cola wa_er _ no s in _ extra clean... - Page 12 Cyde Selection1 continued Normal Allergy If you have asthma or allergy sufferers in your home, The Normal cycle provides 15 minutes of reversing use this cycle to combine hot water temperature tumble wash action for normally soiled loads. Fresh (boosted with internal heater), fast speed tumbling and Water Rinse, and Fnergy Saver are available options.
-
Page 13: Cycle Settings
Cycle Settings Follow the fabric care label instructions 1_/_ best results This setting has been certified by NSF International, on items to be dried. an independent third party testing and certification Appropriate wash temperature, spin speeds, soil level and organization dedicated to public health, safety and options will automatically be displayed for each cycle. -
Page 14: Cycle Options
Cycle Options • Ifsteam is selected, rinse temperatures will be elevated. If washer is paused during a steam wash cycle, the + add door will remain locked due to higher temperature steam in drum. DO NOT force open - it will unlock upon cooling. -
Page 15: Other Features
Other Features Status Display/Status Lights STATUS DISPLAY The estimated total cycle time will be displayed when the cycle is selected. The time may increase if water The following will also be displayed at the ap- pressure is low, oversudsing occurs or the load becomes propriate times during the cycle: unbalanced. - Page 16 _unur_ . nor _ nm n_aw _ Low _u_m • corn wa_e , no sp_n • extra _ ,i,,_e do_a UghL _L_a_, te_p speed [evet These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles: >. _>...
- Page 17 Safe Stain Removal Procedures To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: HARMFUL VAPOR HAZARD * Read and comply with all instructions on stain re- Do not use or mix liquid chlorine bleach with other moval products.
-
Page 18: Stain Removal
Stain Removal Suggestions STAIN TREATM ENT Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with pre- gum, rubber cement wash stain remover or nonflammable dry cleaning fluid. Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. products, egg Wash. - Page 19 Inside Routine Cleaning (Preventative) To help prevent odors, mold or mildew, leave the door open for a few hours after use or whenever the washer is options not in use. steam sanitize o max e max hiqh _ heavy _ _esh wa_m energy ENTRAPMENT...
- Page 20 Other Inside Routine Cleaning (Preventative) Cleaning Dispenser Drawer Area Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month. - Remove the drawer by pulling the drawer out until it stops.
- Page 21 Inside Cleaning (Aggressive) In cases where the Clean Washer cycle along with care and cleaning of rubber gasket folds isn't done, and severe options odor, mold, mildew, or residue buildup have developed, follow the below cleaning procedure to help alleviate the steam sanitize o max...
-
Page 22: Winterizing Instructions
Outside Routine Cleaning o When washing is completed, wipe top and sides of washer with a damp cloth. Turn water faucets off to prevent pres- sure build-up in the hoses. Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers If the cabinet becomes stained, clean with diluted chlo- rine bleach (1 part bleach to 8 parts water). -
Page 23: Common Washing Problems
Common Washing Problems Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES Blue stains Undiluted liquid detergent If caused by detergent, mix 1 cup... - Page 24 Common Washing Problems, continued PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES Yellow buildup • Agitation time too short. • Soak in detergent booster or product • Select correct wash cycle. of body soil on • Wash water temperature containing enzymes. • Use correct amount of detergent. too low.
- Page 25 Service Prevention Checklist Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this washer. OCCURRENCE POSSIBLE CAUSE SOLUTION High pitch "jet engine" A certain amount of motor whine is nor- noise, mal during the spin cycle.
- Page 26 Service Prevention Checklist, continued OCCURRENCE POSSIBLE CAUSE SOLUTION Water collects in folds of This is a result of the washing action and the bellows at the end of is part of the normal operation of the washer. the cycle. Water collects in bleach This is a result of the siphoning action Water may be removed by removing the dispenser and fabric softener corn-...
- Page 27 LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. CROSLEY CORPORATION SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.
