Summary of Contents for Frigidaire FGHD2455LW0

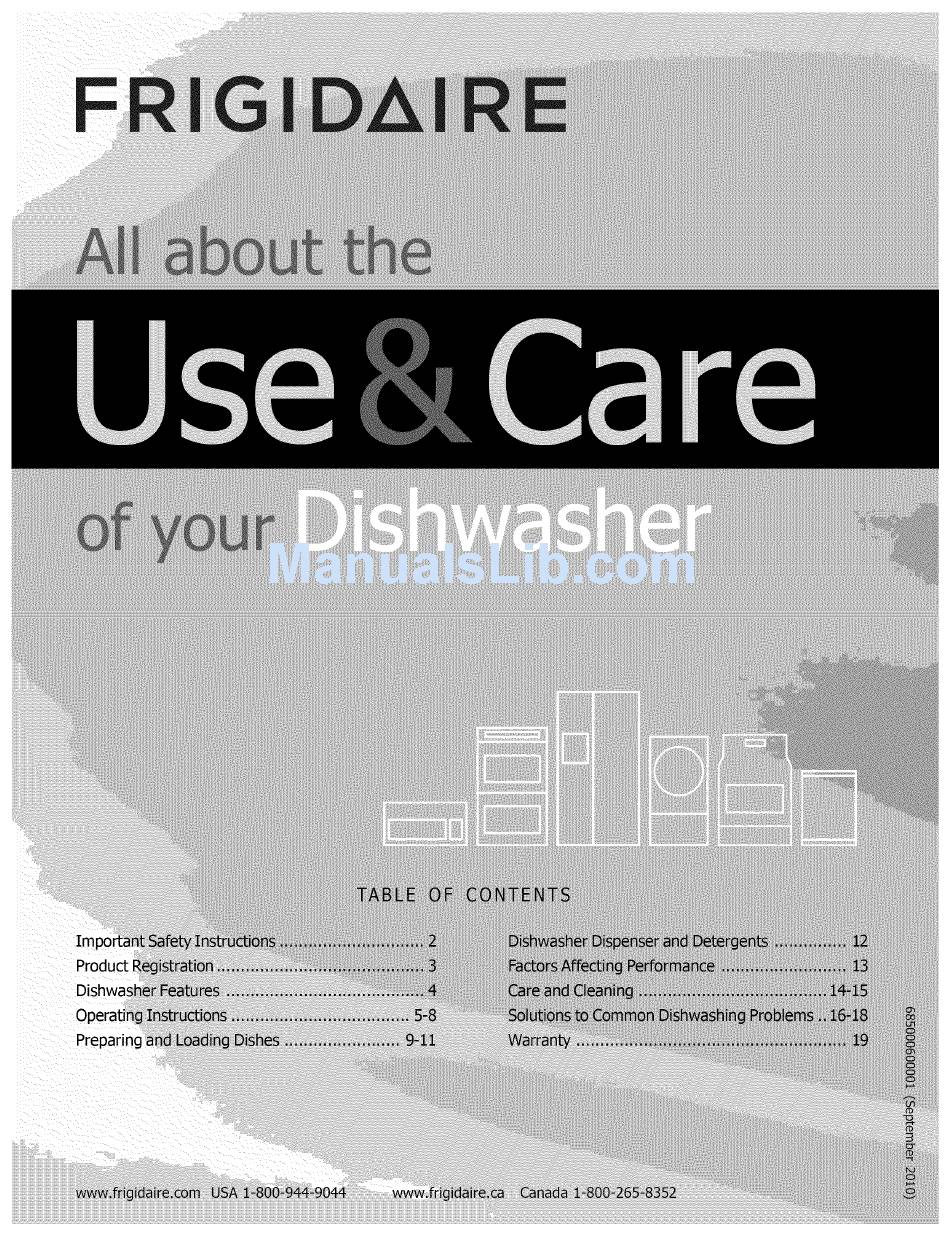

- Page 1 Important Sa Instru_i_s Dishwasher Fea_s ....Operating Instru_ions ..... Preparing and Loading Dishes ..
- Page 2 Read all instructions before using this appliance. Save these instructions for future reference, Do not wash plastic items unless marked "dishwasher safe" or the equivalent. Check with manufacturer for This symbol will help alert you to such dangers as recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire personal injury, burns, fire, and electrical shock.
- Page 3 The next sound you will hear is the splashing water as it enters the tub. Registering your product with Frigidaire enhances our ability to serve you. YOUcan regls[er online a[ PLEASE BE ADVISED: If you compare this www.frigidaire.com...
- Page 4 Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins by filling with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water.
- Page 5 Appearance may vary from your model. Getting Started Hi-Temp Wash Load dishwasher (See Preparing and Loading Dishes). When HI-TEMP WASH option is selected, the dishwasher Add detergent (See Dishwasher Dispenser & heats water in the main wash to approximately 140°F Detergents).
-
Page 6: Delay Start
TheSmart S oil S ensor c hecks t hesoillevel o nyourdishes intheHeavy Wash, a nd Normal Wash cycles. Depending on soillevel, t hesensor w illdetermine ifadditional waterfillsareneeded t o clean thedishes or if waterfillscanbedeleted. Cycle timeandwaterusage willvarybased ontheamount o f soilonthedishes. C ycle timewillalsovarybased onthe options selected a ndtheincoming w atertemperature. -
Page 7: Status Indicator
"Er", or indicate current cycle "CE". If one of these codes are displayed contact the status. 1-800-944- Frigidaire Customer Care Center at MINUTES..Number of minutes left in 9044 They will be able to provide assistance in cycle (1-99). -
Page 8: Dish Preparation
" '_!i Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. -
Page 9: Adjustable Upper Rack
Adjustable Upper Rack (available select models) The top rack height can be easily adjusted to accommodate loading taller dishes in either rack. Height should be adjusted without dishes in the racks..lJ_ l_:ljH II Upper Rack Position Lower Rack Position To adjust the upper rack in either the lower or upper position see illustration below:... -
Page 10: Bowl Tines
Bowl Tines Fold-down Tines The bowl tines offer the ultimate in flexibility. When The fold-down tines in the lower rack make easy loading for closed, load with saucers or small dishes. Open halfway those extra large and hard-to-fit items. The tines may be and it is perfect for small casseroles. -
Page 11: Loading The Silverware
Be sure nothing protrudes through bottom of basket or rack to block the spray arm. Do not mix silver and stainless to avoid damaging the silver finish. The silverware basket can be separated and placed in several locations in the bottom rack. Load silverware in all sections or just one, depending on your load. -
Page 12: Filling The Detergent Dispenser
Filling the Detergent Dispenser How much Detergent to use The detergent dispenser has one covered and one The amount of detergent to use depends on the water uncovered cup. Detergent in the uncovered cup falls into hardness. Water hardness is measured in grains per the dishwasher when the door is closed. -
Page 13: Water Pressure
Rinse Aid Water Pressure Rinse aid greatly improves drying and reduces The hot water line to dishwasher must provide water water spots and filming. Water "sheets" off dishes pressure between 20 and 120 psi. rather than forming water droplets that cling and leave Low water pressure may occur when laundry or showers spots. - Page 14 Burn Hazard Allow heating element to cool before cleaning the interior. Failure to do so can result in burns. Outside--Occasionally wipe with a mild nonabrasive detergent and water. Rinse and dry. Clean the Stainless Steel Inner Door and Tub The tub is made of Stainless Steel, it will not rust or corrode if the dishwasher should be scratched or dented.
-
Page 15: Clean The Fine Filter
Clean the Fine Filter Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To remove the Fine Filter you must first remove the bottom spray arm as shown below. Flush the Fine Filter by holding it under running water and replace. - Page 16 Dishes not Dry Before calling for service, review this list. It may save you both time and expense. • Select heat dry option. This list includes common experiences • Make sure the rinse aid dispenser is filled. that are not the result of defective •...
- Page 17 Dishwasher Leaks Water in Bottom of Tub • Use only fresh detergent designed for automatic • Water left in bottom of tub after cycle is complete is dishwashers. Measure detergent carefully. Try a not normal. If water remains in the bottom of the tub, different brand.
-
Page 18: Dishwasher Won't Fill
Dishwasher Does Not Drain Removing Spots and Film Properly Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also • If unit is hooked up to a food waste disposer, make get spots and film for a number of reasons. (See sure the disposer is empty. - Page 19 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance installed,...
