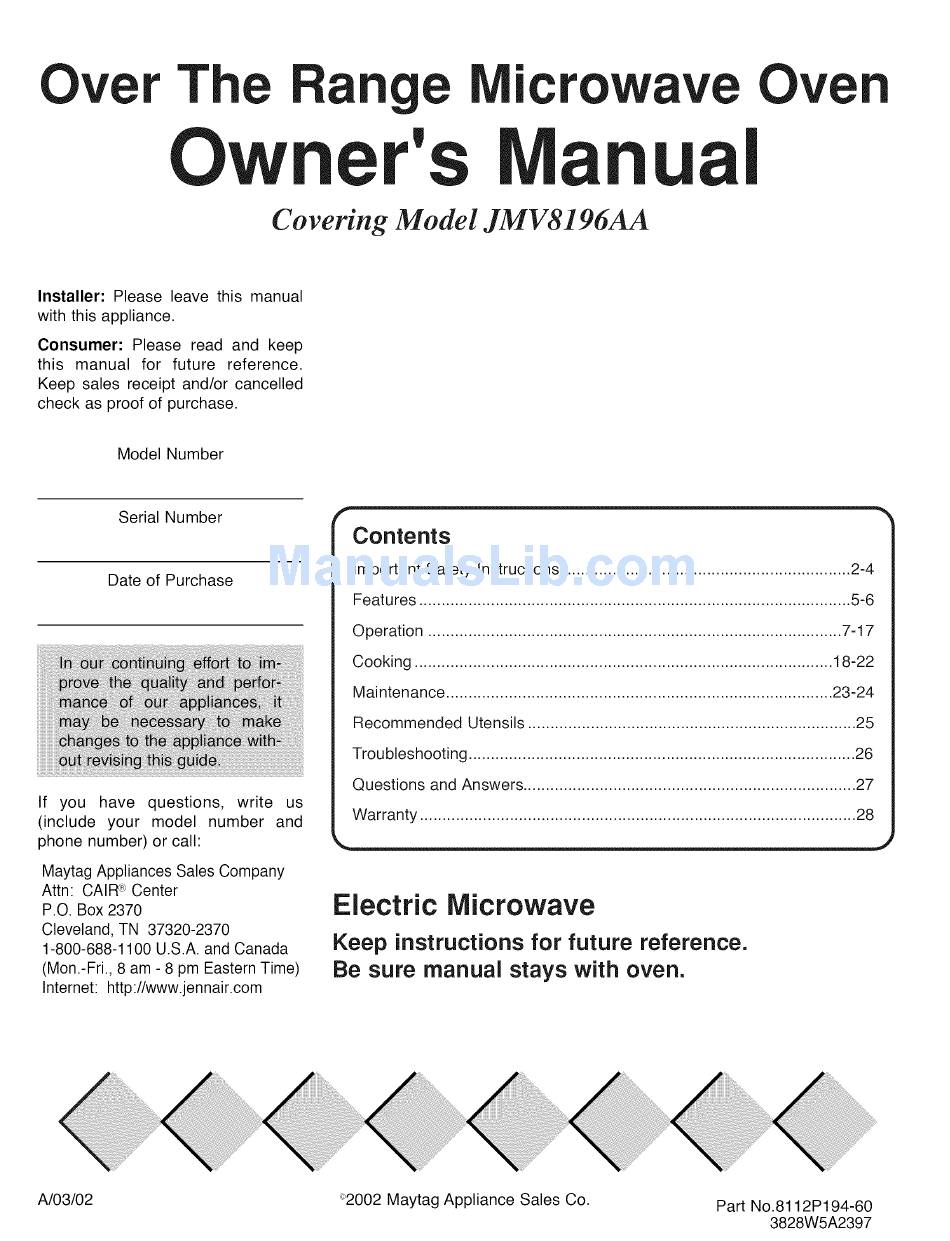

Over

T e

ge Microwave Oven

Owner's Manual

Co vering Model JMV8196AA

Installer:

Please leave this manual

with this appliance.

Consumer:

Please read and keep

this

manual

for future

reference.

Keep sales receipt and/or cancelled

check as proof of purchase.

Model Number

Serial Number

Date of Purchase

If you

have

questions,

write

(include

your

model

number

and

phone number) or call:

Maytag Appliances Sales Company

Attn: CAIR_ Center

P.O. Box 2370

Cleveland, TN 37320-2370

1-800-688-1100 U.S.A. and Canada

(Mon.-Fri., 8 am - 8 pm Eastern Time)

Internet: http://www.jennair.com

Contents

important Safety instructions ................................................................

2-4

Features ................................................................................................

5-6

Operation ............................................................................................

7-17

Cooking .............................................................................................

18-22

Maintenance ......................................................................................

23-24

Recommended

Utensils .........................................................................

Troubleshooting ......................................................................................

Questions and Answers ..........................................................................

Warranty .................................................................................................

Electric Microwave

Keep instructions

for future

reference.

Be sure manual

stays with oven.

A/03/02

_¢2002Maytag Appliance Sales Co.

Part No.8112P194-60

3828W5A2397

Table of Contents

Need help?

Do you have a question about the JMV8196AA and is the answer not in the manual?

Questions and answers

Summary of Contents for Jenn-Air JMV8196AA

Page 1 Over ge Microwave Oven Owner's Manual Co vering Model JMV8196AA Installer: Please leave this manual with this appliance. Consumer: Please read and keep this manual for future reference. Keep sales receipt and/or cancelled check as proof of purchase. Model Number Serial Number Contents important Safety instructions ..............
Page 2 IMPORTANT SAFETY INSTRUCTIONS What You Need Recognize Safety Symbols, Words, Labels to Know About DANGER Safety instructions DANGER-- Immediate hazards which WILL result in severe personal injury or Warning and Important Safety death. structions appearing in this manual are not meant to cover all possible a,wAR.I.a conditions and situations...
Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shock, fire, or injury to persons or exposure to excessive microwave energy. 1. READ all instructions before using oven. 11.
Page 4 IMPORTANT SAFETY INSTRUCTIONS Recognize this symbol as a SAFETY message WARNING CAUTION To avoid risk of fire in the oven cavity: To avoid personal injury or property damage, observe the following: DO NOT overcook food. Carefully attend oven when paper, plastic, or other combustible mate- 1.
Page 5 Features OVEN SPECIFICATIONS Model and Serial Number Plate Vent Grille Power Supply 120 VAC, Door Handle 60 Hz Metal Rack Window with Input Power 1,500 W Metal Shield Cooking Guide Cooking Power 1,000 W (lEO 60705 Standard) Frequency 2,450 MHz Rated Current 13 A Outer Dimensions...
Page 6 Features (cont'd) FEATURES NOTE: Styling and features vary by model. SENSOR VEGETABLE: Touch 1. DISPLAY: The Display includes LESS: Touch this pad to sub- this pad to reheat vegetables. a clock and indicators to tell you tract ten seconds of cooking The oven's sensor will tell time of day, cooking time set- time each time you press it.
Page 7 Operation FAN HI-LOW-OFF LEARN ABOUT YOUR KITCHEN TIMER MICROWAVE OVEN You can use your microwave oven as F:_n moves a timer. Use the Timer for timing up to _{ LowOff steam other This section discusses the concepts 99 minutes, 99 seconds. vapors from the cook- behind microwave cooking and intro- ing surface.
Page 8 Operation (cont'd) CHILD LOCK HOLD WARM Enter the time you want the LIGHT to You may lock the control panel to You can keep cooked food warm in turn on. prevent the microwave from being your microwave oven for up to 99 minutes 99 seconds.
Page 9 CUSTOM RECIPE COOKING AT HIGH COOKING WITH POWER LEVEL MORE THAN ONE CUSTOM RECIPE lets you recall one cooking instruction previously COOK CYCLE Example: To cook food for 8 min- placed in memory and begin cooking utes 30 seconds For best results, some recipes call for quickly.
Page 10 Operation (cont'd) COOKING GUIDE FOR LOWER POWER LEVELS The 10 power levels in addition to HIGH allow you to choose the best power level for the food you are cooking. Below are listed all the power levels, examples of foods best cooked at each level, and the amount of microwave power you are using.
Page 11 SENSOR OPERATING 3. Match the amount to the size of POPCORN the container. Fill containers INSTRUCTIONS POPCORN lets you pop 1.75, 3.0, least half full for best results. and 3.5 ounce bags of commercially Sensor Cook allows you to cook 4.
Page 12 Operation (cont'd) POTATO SENSOR VEGETABLE SENSOR COOK POTATO lets you bake one or SENSOR VEGETABLE has preset Using SENSOR COOK lets you cook powers for 3 food categories: several potatoes without selecting heat common microwave-prepared Fresh, Frozen and Canned. cooking times and power levels. foods without needing to program...
Page 13 SENSOR REHEAT AUTO DEFROST NOTE: When you touch the START pad. The display changes to defrost SENSOR REHEAT lets you heat Your microwave oven is preset with time count down. The oven will beep foods without needing to program three defrost sequences.
Page 14 Operation (cont'd) DEFROSTING TIPS WEIGHT CONVERSION CHART To enter food weight in AUTO DEFROST, you must specify pounds and tenths When using AUTO DEFROST, the of a pound. If the weight on the food package is in fractions of a pound, you weight to be entered is the net can use the following chart to convert the weight to decimals.
Page 15 AUTO DEFROST CHART Meat Setting FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS BEEF Meat of irregular shape and large, fatty cuts of meat should have the narrow or fatty areas shielded with foil at the beginning of a defrost sequence. MEAT Do not defrost less than 1/4 lb.
Page 16 Operation (cont'd) AUTO DEFROST CHART (cont.) Poultry Setting FOOD SETTING AT BEEP SPECIAL iNSTRUCTiONS CHICKEN Whole POULTRY Turn over (finish defrosting breast-side Place chicken breast-side up on a micro- (up to 6 Ibs) down). Cover warm areas with wavable roast rack. Finish defrosting by aluminum foil, immersing in cold water.
Page 17 TIME DEFROST USE OF THE TWO CAUTION POSITION METAL RACK This feature allows you to choose the time you want to defrost. To avoid risk of property dam- The two position metal rack gives age: you extra space when cooking Example: To defrost for 2 minutes more than one container at the same Do not use rack to pop pop-...
Page 18 Cooking GETTING THE BEST FISH AND SHELLFISH cooking time to expose all sides equally to microwave energy. COOKING RESULTS Cooking Fish and Shellfish: Place delicate areas of foods, such General Directions To get the best results from your as asparagus tips, toward the cen- microwave oven, read and follow the •...
Page 19 APPETIZE RS/SA U CES/ Not Recommended • Tend the meat as it cooks. SOUPS Appetizers with a crisp coating or Drain juices as they accumulate puff pastry are best done in a con- to reduce splattering and keep Cooking Appetizers: Tips and ventional oven with dry heat.
Page 20 Cooking (cont'd) MEAT COOKING TABLE POWER COOKING MEAT LEVEL TiME DiRECTiONS BEEF Form patties with depression in center of each. Hamburgers, Place on microwavable roasting rack. Brush with browning Fresh or defrosted agent, if desired. Cover with waxed paper. (4 oz. each) Turn over halfway through cooking.
Page 21 POULTRY Watch the poultry as it cooks. Drain and discard juices as they accumulate. Cooking Poultry: General Directions Shield thin or bony pieces with small strips of alu- • Prepare the poultry for cooking. minum foil to prevent overcooking. Keep foil at least Defrost completely.
Page 22 Cooking (cont'd) PASTA AND RiCE Cooking Pasta and Rice: Tips and Techniques • If you are planning to use rice or pasta in a casserole, Microwave cooking and conventional cooking of pasta, undercook it so it is still firm, rice, and cereal require about the same amount of time, but the microwave is a more convenient method because •...
Page 23 Maintenance CARE AND CLEANING CLEANING 3. To reinstall the filter, slide it into the side slot, then push up and GREASE FILTERS For best performance and safety, toward oven center to lock. keep the oven clean inside and out- The grease filter should be removed ......
Page 24 Maintenance (cont'd) OVEN LIGHT 5 . Slide a new charcoal filter into place. The filter should rest at REPLACEMENT CAUTION the angle shown. 1. Unplug oven or turn off power at To avoid risk of personal the main power supply. injury or property damage, do not operate oven hood 2.
Page 25 Reco mended Utensils MICROWAVE UTENSIL GUIDE DO NOT USE OVENPROOF GLASS METAL UTENSILS: (treated for high intensity heat): Metal shields the food from microwave energy and produces uneven Utility dishes, loaf dishes, pie cooking. Also avoid metal skewers, thermometers or foil trays. Metal plates, cake plates, liquid utensils can cause arcing, which can damage your microwave oven.
Page 26 Troubleshoot Before Calling for Service Check the following list to be sure a service call is necessary. Reviewing additional information on items to check may prevent an unneeded service call. Problem Possible Causes If nothing on the oven operates • check for a blown circuit fuse or a tripped main circuit breaker. •...
Page 27 Questions and Answers ,WARNING To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time, only an authorized servicer should remove outer case. QUESTIONS AND ANSWERS Question Answer Can I use a rack in my microwave Only use the rack that is supplied with your microwave oven.
Page 28 War r an ty Full Two Year Warranty For two (2) years from the date of original retail purchase, any part which fails in normal home use will be repaired or replaced free of charge. Limited Parts Warranty After the second year from the date of original retail purchase through the fifth year, the following parts which fail in normal home use will be repaired or replaced free of charge for the part itself, with the owner paying all other costs, including labor, when the appliance is located in the United States or Canada: (1) touch pad and micro- processor, (2) Magnetron tube.
