Dacor RENAISSANCE RDW24I Use And Care Manual

Built-in dishwasher
Hide thumbs Also See for RENAISSANCE RDW24I:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Instruction and Installation Manual
®
The Life of the Kitchen. _
US E AND
CARE
MANUAL
RENAISSANCE
® BUILT-IN
DISHWASHER
Models
RDW24S
and RDW24I
I
_)l
I(_
I

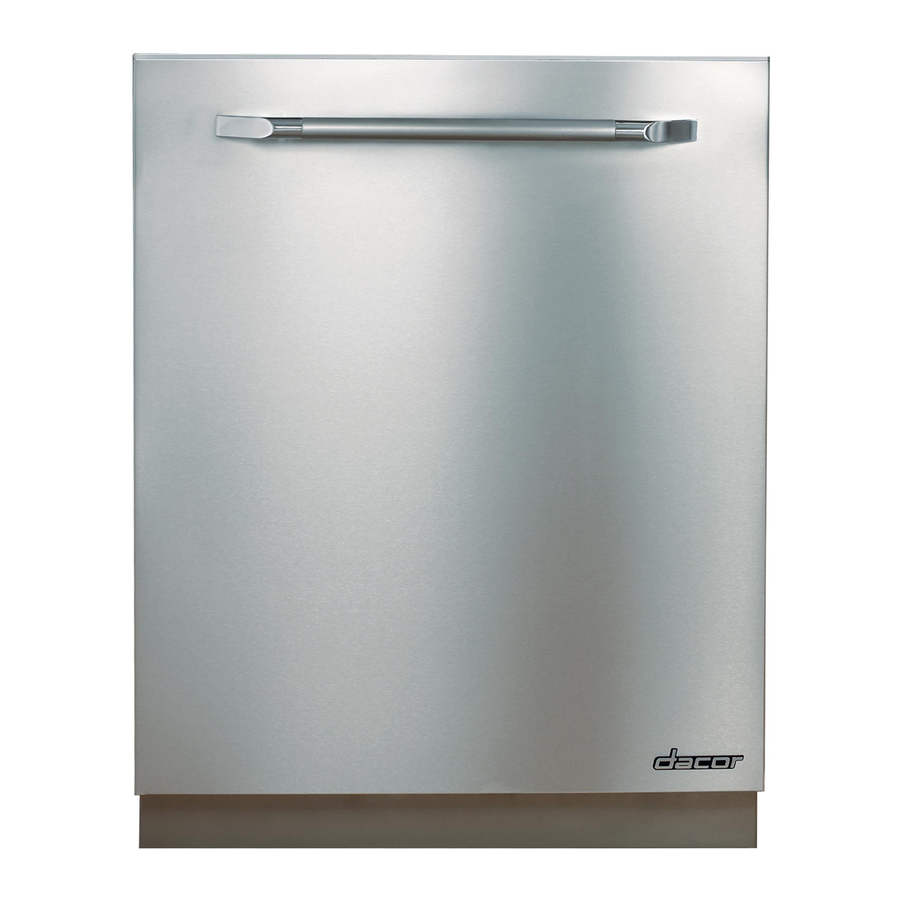

Style varies, model RDW24S with Epicure ® style handle shown.
Table of Contents
Important
Safety Instructions ..................................
1
Getting
to Know Your Dishwasher
..........................
3
Loading Your Dishwasher
.....................................
4
Operating
Your Dishwasher
.................................
8
Care and Cleaning
...........................................
13
Before You Call for Service
................................
16
Warranty
and Service ........................................
20
Warranty
Card ......................................
Back Cover
Part No. 105672 Rev. B

Advertisement

Table of Contents
loading

Related Manuals for Dacor RENAISSANCE RDW24I

Summary of Contents for Dacor RENAISSANCE RDW24I

  • Page 1 ® US E AND CARE MANUAL The Life of the Kitchen. _ RENAISSANCE ® BUILT-IN DISHWASHER Models RDW24S and RDW24I Style varies, model RDW24S with Epicure ® style handle shown. Table of Contents Important Safety Instructions ........Getting to Know Your Dishwasher ......
  • Page 2 Web Site: Thank you for choosing Dacor for your home. We are a company built by families for families and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.
  • Page 3 Date of purchase Since we continuously improve the quality and performance of our products, we may make changes to the appliance without updating this manual. Visit www.dacor.com to download the latest version of this manual. WARNING • Make sure that the dishwasher has been properly installed and...
  • Page 4 Precautions WARNING - To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following: WARNING WARNING Read all instructions before using the • Do not run the dishwasher when you are out dishwasher.

  • Page 5: Wash Temperature

    Dish washing compartment Silverware basket [ Wash Temperature I I Oe,ayS a t I About the Control Panel The control panel touch keys only react when the If you touch any of the control panel touch keys, door is open. It takes a moment for the keys to except the main power key when the lock is reactivate after opening the door.

  • Page 6: What Can Be Washed

    WARNING If it is not possible to !cad sharp objects in the silverware basket, !oad them with the sharp end tow ard the back of the dishwasher. Locate these items where they will not damage the door Seal or cause personal njuryl Whe n loading the sjlve_are basket, insert all...
  • Page 7 the Silverware Basket IMPORTANT , To prevent damage, do not load Utensils and silverware made of different materia!s(for example silver and stainless steel)in the same compartment of the silverware baskeL ' Forbest reSUltsi Covered Compartment To prevent small, light items from falling out of the rack when sprayed with water, put them in the covered compartment.
  • Page 8 J.,.n9 the Racks CAUTION Alway s place large or heavY items (such as pots, pans and large dishware)in the bottom rackl avoid damage to the racksl donot let sharp edges come into contact with them. minimize breakage and chipping, do not allow fragile items to touch each other IMPORTANT items sticking out of the racks to block them;...
  • Page 9 • Place glasses, cups, bowls, small plates and saucers in the top rack. Put wine glasses on the wine glass shelf or lean them against it. Place long knives in the knife stand. • Scrape off leftover food items and non-food items, like toothpicks and napkins, before loading.
  • Page 10 The main wash compartment releases detergent automatically during the main wash cycle. Amount 0f Detergent NOTE: When running the Quick Wash cycle, Dacor recommends that you do not add Pre-wash: 1 teaspoon detergent to the pre-wash compartment. Main wash: Soft (0-3) •...
  • Page 11 When the dishes have water marks. Rinse agent is important to the drying process of the dishware. It also reduces spotting. When to decrease the amount dispensed: Dacor recommends that you keep the rinse • When the dishes have a sticky white/blue film.

  • Page 12: Your Dishwasher

    You can add a dish, if needed, after starting your the display (in hours). You can select dishwasher. Dacor recommends that you only add a delay of up to 24 hours. NOTE: Odd numbered items during the first five minutes of operation hours above 10 are not programmable.

  • Page 13: Stopping Your Dishwasher During Operation

    Changing the Wash Cycle After You Stopping Your Dishwasher During Start Operation You can change the cycle, or any of the other settings Open the door and touch the 8TART/STOP key for after you start your dishwasher. three seconds. The dishwasher will stop operating.
  • Page 14 _ttin Various functions and settings on your dishwasher Touch START/STOP repeatedly until the menu can be configured by the user. To change one of the number for the desired function appears on the settings: display (see above). Open the door slightly. If the display is lit, hold Touch PROGRAM repeatedly until the desired your finger on the main power key until the setting for the function being set appears on the...

  • Page 15: Cleaning The Strainer

    WARNING Clean only those parts of the dishwasher listed • The dishwashing compartment of your Dacor in this manuall Clean them only in the manner dishwasher is constructed of high quality nstrUcted. Use only the cleaning Solutions stainless steel. It remains clean during normal specified.

  • Page 16: Filter System

    Lift the fine particle filter out of the dishwasher. Cleaning the Entire Filter System Disconnect the dishwasher power plug from the electrical outlet or turn off power at the circuit breaker panel. Open the door and remove the bottom rack. Turn the handle on the strainer basket once counter-clockwise.

  • Page 17: Cleaning The Spray Arms

    10. Reinstall thedrain outlet c over. Cleaning the Spray Arms 11. Center thefineparticle f ilter overtheholeinthe The holes and bearings on the spray arms can bottom ofthedishwasher. sometimes become blocked. Clean them as follows to restore proper operation. Open the door and remove the bottom rack. Pull the bottom spray arm straight up to release.

  • Page 18: Error Message

    F:12 Water inlet fault Make sure water supply valve is on. F:40 Inlet valve leakage Turn off the water supply valve and call Dacor Customer Service. Problem Solution Guide _lease review the Problem Solution Guide below. Before you call for service,...
  • Page 19 for Service Problem Be Caused BX Water left in bottom of Dishwashing cycle not Allow dishwasher to complete cycle. dishwasher near filters, complete dishwasher will not drain Obstruction in the drain hose Check for kinked drain hose. Disconnect end of or air gap is plugged drain hose.
  • Page 20 Problem Solution Guide May Be Caused By Dishes not dry (cont,) Improper loading or Do not overload, under-load or nest items. Make sure unloading dishwasher is loaded according to instructions starting on page 6. Dry cycle interrupted Door opened too soon. Make sure dry portion of cycle is complete before opening door.
  • Page 21 Problem May Be Caused By Hard water/incorrect Spotting and filming Use correct amount of dishwasher detergent of dishwasher detergent change detergent type. See page 8. NOTE: phosphate free detergents do not work well with hard water. You may need a home water softener. No rinse agent Make sure rinse agent dispenser is full.
  • Page 22 Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or If your DACOR product fails to function within one year of limitation of incidental or consequential damages, so the the original date of purchase, due to a defect in material above limitations or exclusions may not apply to you.
  • Page 23 Hill NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESSREPLYMAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTYPROCESSING DEPT PO BOX90070 CITY OF INDUSTRYCA 91715-9907 II,l,,,,,llh,,h,,ll,hl,hl,,I,l,,Ih,,h,,I,,hll...

  • Page 24: Warranty Information

    Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way...
