Dacor RDW24 Planning Manual

Document # PG10-007
Product Dimensions
A
Front
Depth with door open
49 3/4" (126.4 cm)
Depth with door closed
C
Drain hose
Side
6 1/4" (15.9 cm) to
8 1/4" (21.0 cm)
1 15/16" (4.9 cm)
A = 1 3/8" (3.5 cm) B = 23" (58.40 cm) C = 2" (5.1 cm)
mILLENNIA StyLE hANDLE DImENSIoNS (PN ADWm24h)
All specifications subject to change without notice.

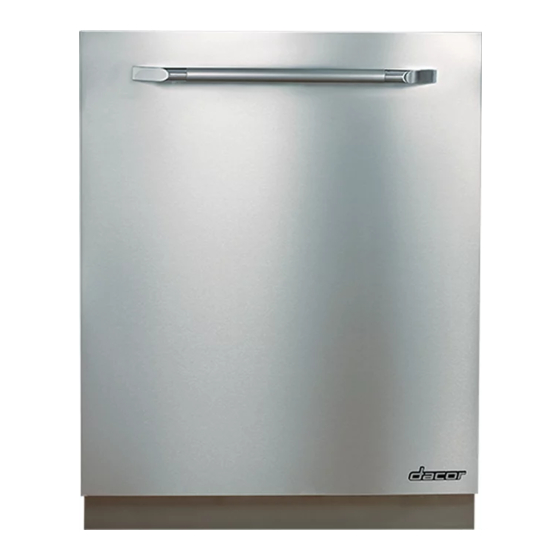

RDW24I, RDW24S
Renaissance
Built-In Dishwasher
Product tolerances: ±1/16" (±1.6 mm)
otherwise stated
approximate
Shipping Weight
B
117 lbs. (53 kg.)
D Handle depth
Depth dimensions allow
for hose on back of unit
B
A
® 24" Wide
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Front Panel Type
(A) Width
(B) Height
(C) Depth
(D) Handle Depth
1
Epicure handle kit PN: ADWE24H
2
Millennia handle kit PN: ADWM24H
3
Model IDWH24 requires installation of either a Dacor glass panel kit
(order from your Dacor dealer), or a customer provided, custom overlay
door panel. A custom overlay panel allows you to blend the exterior of
your dishwasher into the overall kitchen décor. See page 2/3 for more
information.
4
Height with required trim kit installed.
5
Without custom front panel installed.
Drain hose
54" (137.0 cm)
long
Water supply line
60" (152.0 cm)
long
UtILIty CoNNECtIoN DImENSIoNS
A
C
A = 7/8" (2.2 cm) B = 18 1/2" (47.0 cm) C = 2 3/8" (6.0 cm)
EPICURE StyLE hANDLE DImENSIoNS (PN ADWE24h)
www.dacor.com
Revised 02/07/12 Page 1/3
PLANNING
GUIDE
WaRnIng
Model RDW24I Model RDW24S
Integrated
Stainless steel
2
front panel
23 1/2" (59.7 cm) 24" (61.0 cm)
33 7/8" (86.0 cm) to 34 3/8" (87.4 cm) to
4
36" 1/2 (92.7 cm) 36 1/2" (92.7 cm)
5
22 7/8" (58.1 cm) 22 7/8" (58.1 cm)
Varies with Epicure
configuration Millennia
Do not modify
loop in hose
Back
3 3/8" (8.6 cm) 2 7/8" (7.3 cm)
B
Phone: (800) 793-0093
®
: 2 1/2" (6.4 cm) 1
®
: 2" (5.1 cm) 2
Power cord
44" (112.0 cm)
long
C
