  • Page 1 Transport TX46 B4881 Service Engineer’s Manual...

  • Page 3: Trademark Recognition

    TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.

  • Page 4: Federal Communications Commission (Fcc)

    Federal Communications Commission (FCC) Notice for the USA Compliance Information State- ment (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including inter- ference that may cause undesired operation.

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your Transport TX46. This manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts Chapter 1: Provides an Introduction to the Transport TX46 B4881 barebone, packing list, describes the external components, gives a table of key compo- nents, and provides block diagrams of the system.

  • Page 6: Safety Information

    Safety Information Before installing and using the Transport TX46, take note of the fol- lowing precautions: – Read all instructions carefully. – Do not place the unit on an unstable surface, cart, or stand. – Do not block the slots and opening on the unit, which are pro- vided for ventilation.

  • Page 7: Chapter 1: Overview

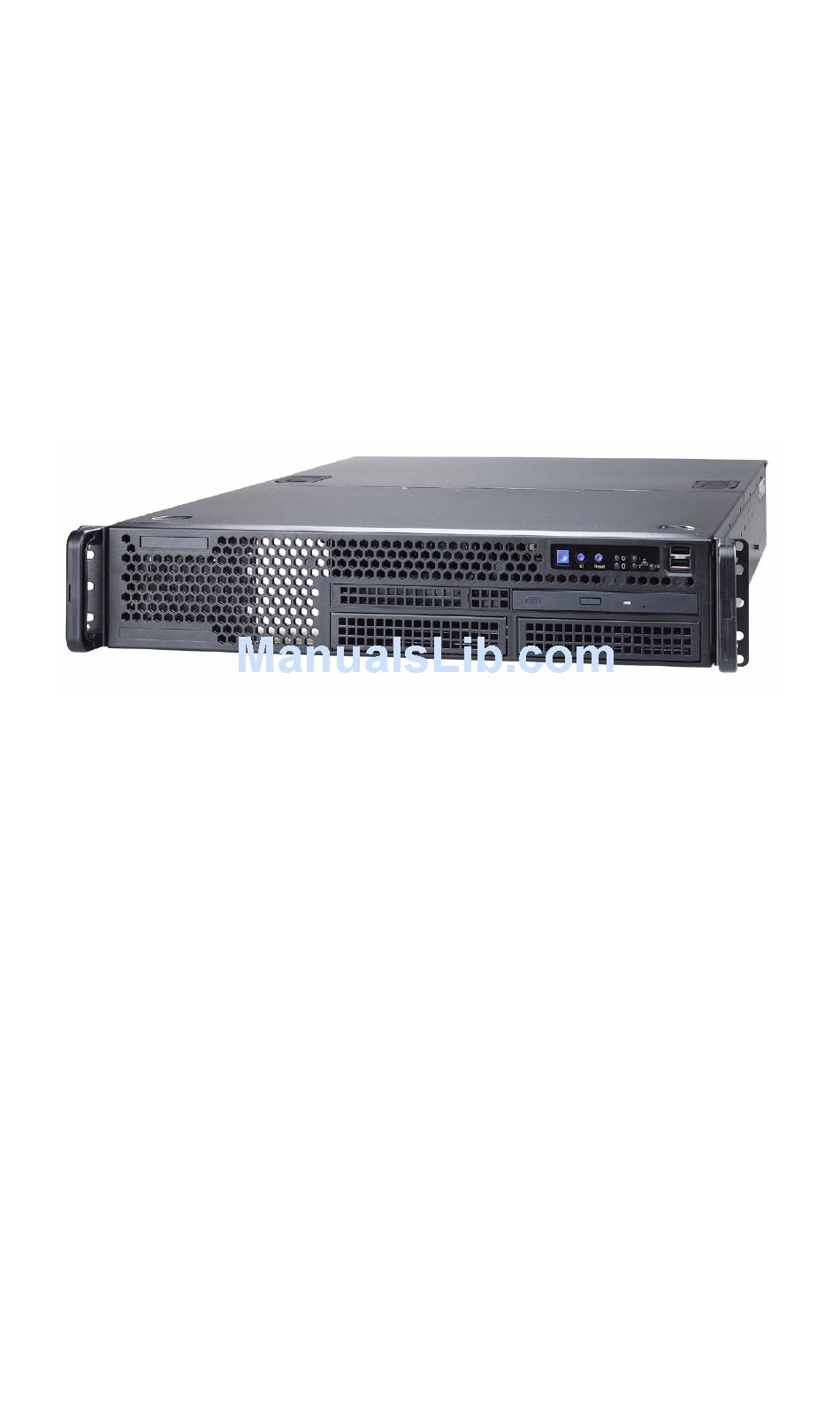

    Chapter 1: Overview About the Transport TX46 (B4881) Congratulations on your purchase of the TYAN Transport TX46 (B4881), a highly-optimized rack-mountable barebone system. The Transport TX46 (B4881) offers the latest proces- sor server system, providing a rich feature set and incredible ®...
  • Page 8 1.2 Features Features Processors Memory • (4) mPGA 940-pin ZIF socket • Total sixteen 184-pin 2.5V DDR DIMM sockets (4 for each CPU) ® • Supports up to four AMD • Support up to 64GB registered DDR Opteron™ 800 series processors 400/333/266 SDRAM support •...
  • Page 9 1.2 Features Intelligent Platform Management Regulatory • Optional Tyan Server Management • FCC Class B Daughter card (declaration of conformity) • CE (declaration of conformity) Environment • Operating: 5 C~35 • Non-operating: -40 C ~ 70 Chapter 1: Overview...

  • Page 10: Box Contents

    Component Description Industry standard 2U chassis, (2) fixed HDD bays Tyan Thunder K8QW S4881 motherboard (pre-installed) 24x slim CD-ROM drive (pre-installed) LED and USB control board (pre-installed) EPS 12V 850W PSU (pre-installed) (4) Fans (80 mm x 80 mm)
  • Page 11 1.3 Unpacking 1.3.2 Accessories 2x Mounting Ears 4x CPU Heat Sinks with Fans 2x Sliding Rails 2x Power Cables 2x Screws Kit Left: Transport TX46 (B4881) Service Engineer’s Manual Right: Thunder K8QW (S4881) User’s Manual Diskette CD-ROM SATA HDD Power Cable Chapter 1: Overview...
  • Page 12 1.3 Unpacking 1.3.3 Opening the box Open the box carefully and ensure that all components are present and undamaged. The product should arrive pack- aged as illustrated below. Packaged box contents Packaged accessories Contact your distributor if anything is missing or appears damaged.

  • Page 13: About The Product

    1.4 About the product About the product This section contains hardware diagrams and a block dia- gram of the TX46 (B4881) system. 1.4.1 System front view See the diagram below for details of the front panel indicators and switches. Power indicator Reset button LAN indicator ID button...

  • Page 14: System Internal View

    1.4 About the product 1.4.3 System internal view Memory Slots CPU Sockets System Fans CD-ROM Cable Slim Type CD-ROM Drive Bay LED Control Board Slim Type Floppy Drive Bay Power Supply SATA Cables PCI-X/PCI-E Slots Chapter 1: Overview...
  • Page 15 1.4 About the product 1.4.4 Mainboard layout Chapter 1: Overview...

  • Page 16: Jumper /Connector

    1.4 About the product Jumpers & Connectors Jumper Function /Connector J115 Front Panel Connector Clear CMOS Jumper SMBus Connector J30, J31, J95 USB 2.0 Header Chassis Intrusion Header J101 Serial Port Internal Header PCI-X Channel A Frequency Configuration Jumper PCI-X Channel B Frequency Configuration Jumper Wake on Ring PIN Header JP4, JP5 Gigabit LAN1, LAN2 LED Header...

  • Page 17: Chapter 2: Setting Up

    Chapter 2: Setting up Before you begin This chapter explains how to install motherboard components including CPUs, memory modules, and PCI cards. There are also instructions in this section for installing SATA, SCSI, and IDE hard drives. Careful attention should be given to the precautions men- tioned in this section when setting up your system.
  • Page 18 2.1 Before you begin 2.1.3 Precautions Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport TX46 or injury to yourself.

  • Page 19: Installing Motherboard Components

    2.2 Installing motherboard components Installing motherboard components This section describes how to install CPUs, memory mod- ules, and PCI cards in the Transport TX46. 2.2.1 Removing the chassis cover Follow these instructions to remove the TX46 chassis cover. 1. Pull up the two retaining clips. 2.
  • Page 20 2.2 Installing motherboard components 2.2.2 Installing CPUs This section describes how to install AMD Opteron proces- sors and heat sinks in your TX46 system. NOTE: The system supports up to four CPUs. CPU0 must be installed first followed by CPU 1, 2, and 3. 1.
  • Page 21 2.2 Installing motherboard components 4. Place the processor in the socket, making sure that pin 1 is correctly located. NOTE: The processor will only fit in the socket one way. No force should be required to insert the processor. 5. Push the locking lever back down into the locked position as shown.
  • Page 22 2.2 Installing motherboard components 7. Place the heat sink on top of the processor and tighten the screw to secure the heat sink in place. NOTE: All heat sinks must be installed with fans facing the rear of the chassis to ensure efficient cooling. 8.

  • Page 23: Installing Memory

    2.2 Installing motherboard components 2.2.3 Installing memory Follow the instructions in this section to install memory mod- ules in your TX46 system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Locate the memory slots on the motherboard. Memory slots 3.
  • Page 24 2.2 Installing motherboard components 5. Insert the memory module into the slot as shown. The locking levers will fall into position. 6. Ensure that the locking levers are firmly in place and that the memory module is properly seated in the slot. NOTE: Each bank memory of sockets is associated with one CPU.
  • Page 25 2.2 Installing motherboard components 2.2.4 Installing a PCI-X/PCI-E card Follow the instructions in this section to install a PCI-X/PCI-E card in your TX46 system. 1. Remove the chassis cover as described in section 2.2.1 Removing the chassis cover. 2. Remove the blanking plate from the slot you wish to use. 3.
  • Page 26 2.2 Installing motherboard components 4. Replace the screw as shown. 2.2.5 Installing an internal hard drive Follow these instructions to install an internal hard drive in your TX46 system. 1. Release the screw (A) and pull the tray out of the chassis (B).
  • Page 27 2.2 Installing motherboard components 2. Place a hard drive in the drive tray (A) and secure it with four screws (B). 3. Slide the drive tray into the chassis and secure the chas- sis with one screw. 4. Connect the data and power cables. Chapter 2: Setting up...

  • Page 28: Rack Mounting

    2.3 Rack mounting Rack mounting Rack mounting kit Sliding Rails x 2: Sliding Brackets x 4 (Front x 2, Rear x 2) Mounting Ears x 2 Screws Kit x 1 Mounting Brackets x 4 2.3.1 Installing the server in a rack Follow these instructions to mount the Transport TX46 into an industry standard 19"...
  • Page 29 2.3 Rack mounting 2. After installing the inner rails, add the washers to the holes before connecting the mounting ears. 3. Install two screws to connecting the mounting ears. Installing outer rails to the rack 4. Measure the distance between inner side of the front and rear mounting brackets in the rack.
  • Page 30 2.3 Rack mounting 5. Locate the front and rear brackets. Rear Bracket x2 Front Bracket x2 6. Reserve 50mm on the front bracket while using “recom- mended rail mounting holes” or 15mm for “optional rail mounting holes”. Recommended rail mounting holes Optional rail mounting holes 7.
  • Page 31 2.3 Rack mounting 8. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L screws. Remember to add washer Front Side Rear Side 9. Secure the outer rail to rack using the mounting bracket and 2 M4-8L screws for each side.
  • Page 32 2.3 Rack mounting Rackmounting the server 10. Draw out the middle rail to the latch position. 11. Lift the chassis and then insert the inner slide rails into the middle rails. Press the latch key on picture A and then press the latch key on picture B to insert the inner slide rails.

  • Page 33: Chapter 3: Replacing Pre-Installed

    Chapter 3: Replacing pre-installed components Introduction This chapter describes how to replace all the pre-installed components of your TX46, including PCI card, motherboard, CD-ROM drive, optional floppy disk drive, and LED control board. Before you attempt to replace any components, make sure you have read section 2.1 Before you begin, which describes the precautions you need to take and the tools you will require.
  • Page 34 3.2 Replacing motherboard components 1. Disconnect the PWR0, PWR4, LAN, SATA and CD-ROM cables. PWR0 SATA3 CD-ROM PWR4 2. Disconnect the USB, ID and Front Panel cables. Front Panel Chapter 3: Replacing pre-installed components...
  • Page 35 3.2 Replacing motherboard components 3. Disconnect the SYSFAN1, PWR3 and SYSFAN2 cables. PWR3 SYSFAN2 SYSFAN1 4. Disconnect the SATA1, SATA2 and SYSFAN8 cables. SATA2 SATA1 SYSFAN8 5. Disconnect the PWR2, PWR1 and SYSFAN3 cables. PWR2 PWR1 SYSFAN3 Chapter 3: Replacing pre-installed components...
  • Page 36 3.2 Replacing motherboard components 3.2.2 Replacing the motherboard Follow these instructions to remove the motherboard from your TX46. NOTE: Before proceeding, you must remove all cable con- nections to the motherboard. See section 3.2.1 Disconnect- ing all motherboard cables. 1. Remove the rear chassis cover. See 2.2.1 Removing the chassis cover 2.

  • Page 37: Replacing The Slim Cd-Rom Drive

    3.3 Replacing the slim CD-ROM drive Replacing the slim CD-ROM drive This section describes how to remove and replace the CD- ROM drive in your TX46 system. 1. Remove the front and rear chassis covers as described in section 2.2.1 Removing the chassis cover. 2.
  • Page 38 3.3 Replacing the slim CD-ROM drive 4. Lift the drive bay free.. 5. Remove the four screws to release the CD-ROM drive. After replacement of a new CD-ROM drive, secure the CD-ROM in drive bay with four screws. 6. Replace the drive bay in the chassis and secure with a single screw.

  • Page 39: Replacing The Floppy Disk Drive

    3.4 Replacing the floppy disk drive Replacing the floppy disk drive Follow these instructions to replace the FDD in your TX46. 1. Remove the chassis covers as described in section 2.2.1 Removing the chassis cover. 2. Locate the FDD drive bay and remove the power and data cables from the backplane.
  • Page 40 3.4 Replacing the floppy disk drive 5. Connect the bracket to the FDD tray following the direc- tions on picture A and then secure the bracket with one single screw (B). 6. Use 2 screws to secure the FDD backplane. 7.
  • Page 41 3.4 Replacing the floppy disk drive 8. Install the FDD drive into the FDD bay and secure the drive with four screws. 9. Replace the drive bay into the chassis. 10. Secure the drive bay with a single screw. Connect the power and data cables.

  • Page 42: Replacing The Led Control Board

    3.5 Replacing the LED control board Replacing the LED control board Follow these instructions to replace the LED control board. 1. Unplug the power and data cables. 2. Remove the three screws to release the LED control board. 3. Follow the reverse steps to reconnect the LED control board.

  • Page 43: Replacing The Power Supply

    3.6 Replacing the power supply Replacing the power supply Follow these instructions to replace the power supply in your TX46 system. 1. Remove the chassis covers as described in section 2.2.1 Removing the chassis cover. 2. Remove the power cables connected to the mother- board.
  • Page 44 3.6 Replacing the power supply 5. Remove the two screws securing the power supply. 6. Lift up the power supply. Chapter 3: Replacing pre-installed components...

  • Page 45: Replacing The Cooling Fans

    3.7 Replacing the cooling fans Replacing the cooling fans Follow these instructions to replace the cooling fans in your TX46 system. 1. Remove the chassis covers as described in section 2.2.1 Removing the chassis cover. 2. Locate the fan connector on the motherboard and unplug the fan cable.
  • Page 46 3.7 Replacing the cooling fans Fan connector table Barebone Fan MB Jumper MB Fan Function CPU0 J117 CPUFAN0 CPU1 J116 CPUFAN1 CPU2 J108 CPUFAN2 CPU3 J109 CPUFAN3 SysFAN1 J103 SysFAN1 SysFAN2 J107 SysFAN2 SysFAN3 J105 SysFAN3 SysFAN4 J112 SysFAN8 Always on Chapter 3: Replacing pre-installed components...
