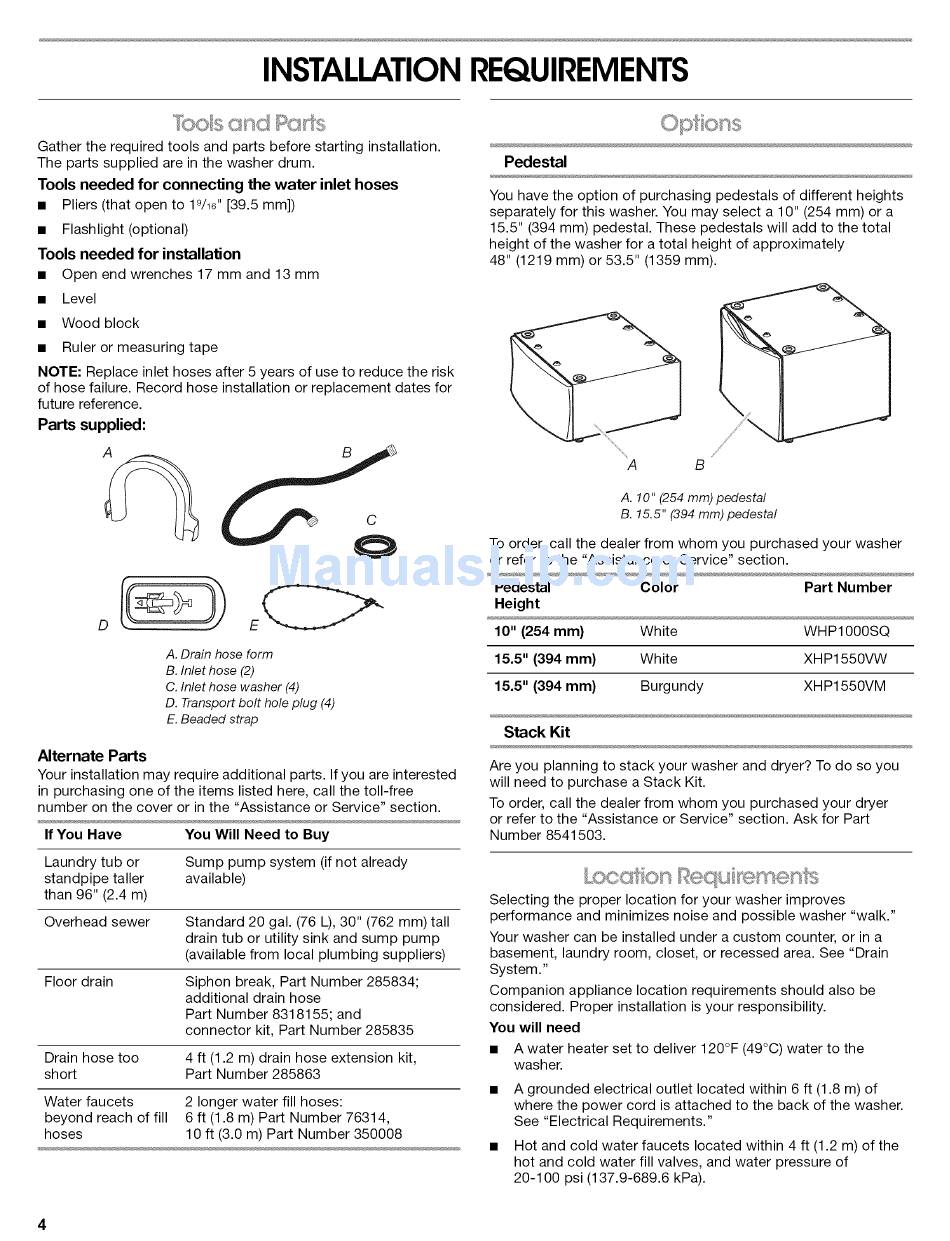

INSTALLATION REQUIREMENTS
I J ,,]I0 ........ _ ,=v_
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
• Pliers (that open to 19/_6 '' [39.5 mm])
• Flashlight (optional)
Tools needed for installation
• Open end wrenches 17 mm and 13 mm
• Level
• Wood block
• Ruler or measuring tape
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for
future reference.
Parts supplied:
A B
A. Drain hose form
B. Inlet hose (2)
C. Inlet hose washer (4)
D. Transport bolt hole plug (4)
E. Beaded strap
Alternate Parts
Your installation may require additional parts. If you are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the "Assistance or Service" section.
If You Have You Will Need to Buy
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96" (2.4 m)
Overhead sewer Standard 20 gal. (76 L), 30" (762 mm) tall
drain tub or utility sink and sump pump
(available from local plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose
Part Number 8318155; and
connector kit, Part Number 285835
Drain hose too 4 ft (1.2 m) drain hose extension kit,
short Part Number 285863
Water faucets 2 longer water fill hoses:
beyond reach of fill 6 ft (1.8 m) Part Number 76314,
hoses 10 ft (3.0 m) Part Number 350008
Pedestal
You have the option of purchasing pedestals of different heights
separately for this washer. You may select a 10" (254 mm) or a
15.5" (394 mm) pedestal. These pedestals will add to the total
height of the washer for a total height of approximately
48" (1219 mm) or 53.5" (1359 mm).
A B
/Y
A. 10" (254 mm) pedestal
B. 15.5" (394 mm) pedestal
To order, call the dealer from whom you purchased your washer
or refer to the "Assistance or Service" section.
Pedestal Color Part Number
Height
10" (254 mm) White WHP1000SQ
15.5" (394 ram} White XHP1550VW
15.5" (394 ram} Burgundy XHP1550VM
Stack Kit
Are you planning to stack your washer and dryer? To do so you
will need to purchase a Stack Kit.
To order, call the dealer from whom you purchased your dryer
or refer to the "Assistance or Service" section. Ask for Part
Number 8541503.
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk."
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. See "Drain
System."
Companion appliance location requirements should also be
considered. Proper installation is your responsibility.
You will need
• A water heater set to deliver 120°F (49°C) water to the
washer.
• A grounded electrical outlet located within 6 ft (1.8 m) of
where the power cord is attached to the back of the washer.
See "Electrical Requirements."
• Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
4
