Admiral LN06741 Operating Instructions

ELECTRIC AVE.
ELEC'rmc AVE .,-. -, mlv I FHU D MANUFACTURER
IIIJFB
MODEL NUMBER
IIIIIIII1_111111111

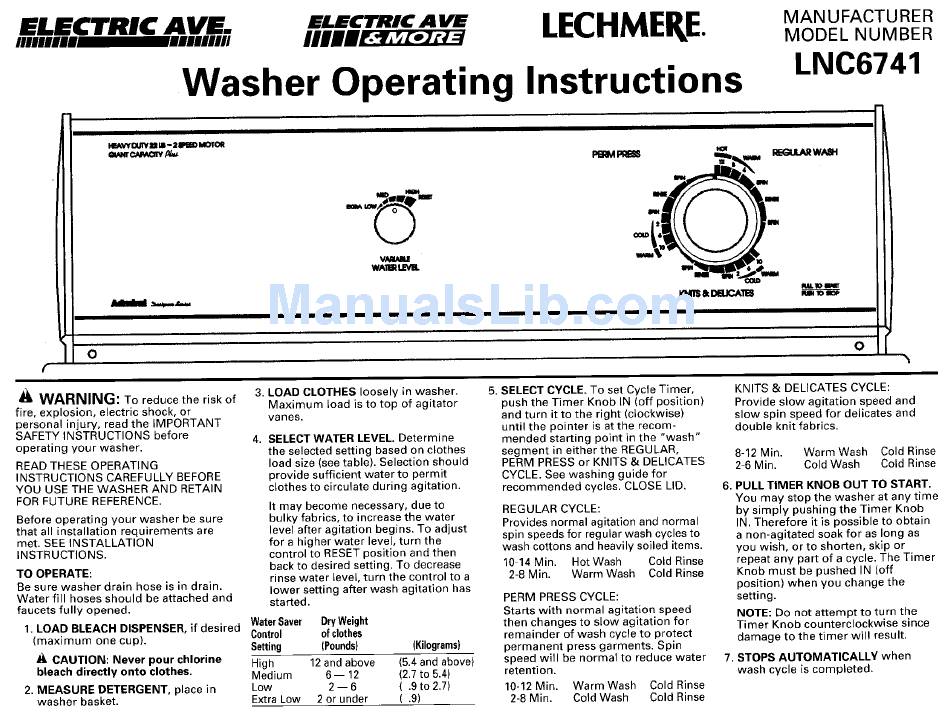

Washer Operating Instructions
LN06741
I
14L_,'VY _ff',t m m - 2 _ IdOT_
o
WAII_ t.B/B.
K_,IO I
I_RS& DEUCA1E8
o
f
WARNING:
To reduce the risk of
fire, explosion, electric shock, or
personal injury, read the iMPORTANT
SAFETY INSTRUCTIONS before
operating your washer.
READ THESE OPERATING
INSTRUCTIONS CAREFULLY BEFORE
YOU USE THE WASHER AND RETAIN
FOR FUTURE REFERENCE.
Before operating your washer be sure
that all installation requirements are
met. SEE INSTALLATION
INSTRUCTIONS.
TO OPERATE:
Be sure washer drain hose is in drain.
Water fill hoses should be attached and
faucets fully opened.
1. LOAD BLEACH DISPENSER, if desired
(maximum one cup).
CAUTION: Never pour chlorine
bleach directly onto clothes.
2. MEASURE DETERGENT, place in
washer basket.
3. LOAD CLOTHES loosely in washer.
Maximum load is to top of agitator
vanes.
4,
SELECT WATER LEVEL. Determine
the selected setting based on clothes
load size (see table). Selection should
provide sufficient water to permit
clothes to circulate during agitation.
It may become necessary, due to
bulky fabrics, to increase the water
level after agitation begins. To adiust
for a higher water level, turn the
control to RESET position and then
back to desired setting. To decrease
rinse water Jevel, turn the control to a
lower setting after wash agitation has
started.
WaterSaver DryWeight
Control ofclothes
Setting (Pounds) (Kilograms)
High 12 and above (5.4 and above)
Medium 6-- 12 (2.7 to 5.4)
Low 2 -- 6 ( .9 to 2.7)
Extra Low 2 or under (.9)
5. SELECT CYCLE. To set Cycle Timer,
push the Timer Knob IN (off position)
and turn it to the right (clockwise)
until the pointer is atthe recom-
mended starting point in the "wash"
segment in either the REGULAR,
PERM PRESS or KNITS & DELiCATES
CYCLE. See washing guide for
recommended cycles. CLOSE LID.
REGULAR CYCLE:
Provides normal agitation and normal
spin speeds for regular wash cycles to
wash cottons and heavily soiled items.
10 14 Min. Hot Wash Cold Rinse
2-8 Min, Warm Wash Cold Rinse
PERM PRESS CYCLE:
Starts with normal agitation speed
then changes to slow agitation for
remainder of wash cycle to protect
permanent press garments. Spin
speed will be normal to reduce water
retention.
10-12 Mie. Warm Wash Cold Rinse
2-8 Min. Cold Wash Cold Rinse
KNITS & DELICATES CYCLE:
Provide slow agitation speed and
slow spin speed for delicates and
doable knit fabrics.
8-12 Min. Warm Wash Cold Rinse
2 6 Min. Cold Wash Cold Rinse
6. PULL TIMER KNOB OUT TO START.
You may stop the washer at any time
by simply pushing the Timer Knob
IN. Therefore it is possible to obtain
a non-agitated soak for as long as
you wish, orto shorten, skip or
repeat any part of a cycle. The Timer
Knob must be pushed IN (off
position) when you change the
setting.
NOTE; Do not attempt to turn the
Timer Knob counterclockwise since
damage to the timer will result.
7. STOPS AUTOMATICALLY when
wash cycle is completed.
