Zoom Player 3000B Operation Manual

Advanced bass effects processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ADVANCED BASS EFFECTS PROCESSOR
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Player 3000B and is the answer not in the manual?

Questions and answers

Related Manuals for Zoom Player 3000B

Summary of Contents for Zoom Player 3000B

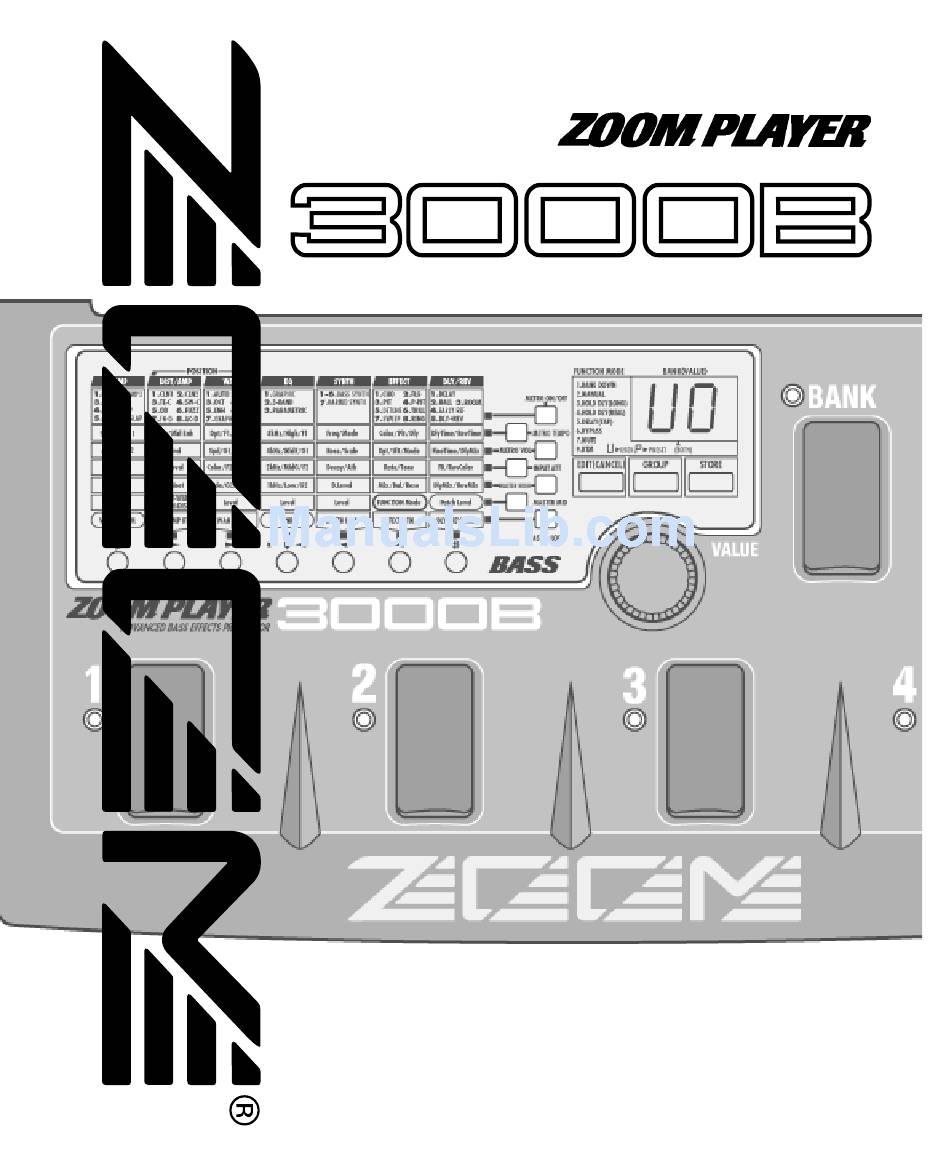

  • Page 1 ADVANCED BASS EFFECTS PROCESSOR OPERATION MANUAL...

  • Page 2: Usage And Safety Precautions

    The 3000B is powered by the supplied AC adapter. To prevent malfunction and safety hazards, do Warning not use any other kind of AC adapter. When using the 3000B in an area with a different line voltage, please consult your local ZOOM distributor about acquiring a proper AC adapter. • Environment...

  • Page 3: Usage Precautions

    Usage Precautions • Electrical interference For safety considerations, the 3000B has been designed to provide maximum protection against the emission of electromagnetic radiation from inside the device, and protection from external interference. However, equipment that is very susceptible to interference or that emits powerful electromagnetic waves should not be placed near the 3000B, as the possibility of interference cannot be ruled out entirely.

  • Page 4: Table Of Contents

    CONTENTS USAGE AND SAFETY PRECAUTIONS Controlling the Volume in Real Time (Volume RTM) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Returning the 3000B to the Factory Default Introduction •...

  • Page 5: Introduction

    Introduction Thank you for selecting the ZOOM PLAYER 3000B (hereafter simply called the "3000B"). The 3000B is a bass multi-effect device with the following features: • 45 built in effects types covering a wide range. Up to 9 effects can be combined in a patch, letting you easily create your own sound.

  • Page 6: Names Of Parts

    Names of Parts Top Panel View Parameter LEDs Parameter Select keys FUNCTION switch EDIT (CANCEL) key BANK switch Module LEDs GROUP key Display Module Select keys STORE key FUNCTION MODE BANK ( VALUE ) POSITION COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2...

  • Page 7: Getting Connected

    Getting Connected When using the optional remote pedal RP01, use the remote cable supplied with the RP01 to connect the REMOTE OUT jack of the RP01 to the PEDAL SW STATUS MONITOR PEDAL-WAH ON/OFF(PEDAL SW) PEDAL-PITCH ON/OFF(PEDAL SW) VOLUME ASSIGN REMOTE IN jack of the 3000B.

  • Page 8: Introducing The 3000B

    The position of the DIST/AMP effect module and WAH can be controlled at this point with the pedal. effect module can be reversed. ZNR is a noise reduction system developed by Zoom. MASTER EQ is an equalizer that can be set independently from the individual patches.
  • Page 9 This setting is • Patch parameter retained also when switching patches, until the unit Determines the overall level of a patch, Zoom is turned off. When wishing to preserve the global Noise Reduction (ZNR) settings, and other aspects parameter setting, any patch of the USER group affecting the entire patch.

  • Page 10: Let's Try Out Some Patches (Play Mode Operation)

    Let's Try Out Some Patches (Play Mode Operation) The Play mode is for selecting a patch and playing. When you power up the 3000B, it automatically activates in Play mode, and the USER group's Bank 0, Patch Number 1 is selected. Panel Display in Play Mode In Play mode, the display LEDs on the panel show the following information: (1) (2)

  • Page 11: Selecting A Patch

    Selecting a Patch In the Play mode, you can play by choosing one of the patches from among the 80 types (40 USER group patches plus 40 PRESET patches) in memory. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2...

  • Page 12: Adjusting The Master Volume

    Adjusting the Master Volume In Play mode, regardless of the selectable patches, the final output volume by the 3000B can be controlled by the Master Volume. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL...

  • Page 13: Temporarily Switching Effects Off (Bypass Function)

    Temporarily Switching Effects Off (Bypass Function) You can switch the 3000B Effect mode OFF temporarily (this is called "bypass"), and monitor the instrument's direct sound. This is a handy function for checking how the effects are working. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP...

  • Page 14: Temporarily Turning The Sound Off (Mute Function)

    Temporarily Turning the Sound Off (Mute Function) The mute function temporarily turns the output OFF. FUNCTION MODE BANK(VALUE) POSITION COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL 1.GRAPHIC 1-6.BASS SYNTH 1.CHO 2.FLG 1.DELAY 2.MANUAL FUNCTION METRO ON 3.LIMITER 3.TE-C...

  • Page 15: Tuning Your Bass Guitar (Auto Tuner Function)

    Tuning Your Bass Guitar (Auto tuner Function) The 3000B incorporates a chromatic auto tuner function. This function can be used in the Bypass or Mute condition. FUNCTION MODE BANK(VALUE) POSITION COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL...

  • Page 16: Adjusting Standard Pitch Of Tuner (Calibration)

    Adjusting Standard Pitch of Tuner (Calibration) This function sets the reference pitch used by the tuner of the 3000B. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL 1.GRAPHIC 1-6.BASS SYNTH 1.CHO 2.FLG 1.DELAY 2.MANUAL...

  • Page 17: Adjusting Input Sensitivity/Tone

    Adjusting Input Sensitivity/Tone This section describes how to adjust input sensitivity (for matching the 3000B to the output level of the instrument) and tone (to suit the acoustic requirements of a performance venue). POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN...

  • Page 18: Using The Metronome Function

    Using the Metronome Function The 3000B incorporates a metronome function that is handy for scale and fingering practice. The metronome can be used at any time in Play mode, Manual mode, and in the Bypass state. 1, 6 POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP...

  • Page 19: Changing The Patch Sound (Edit Mode Operation)

    Changing the Patch Sound (Edit Mode Operation) This section describes basic operation of the Edit mode. The patches of the 3000B are made up from a variety of effect parameters that determine the sound and the signal routing, as well as patch parameters that affect the entire patch such as the ZNR sensitivity setting and the overall patch level.

  • Page 20: Panel Display In Edit Mode

    Panel Display in Edit Mode In Edit mode, the panel displays the following information: Dpt/Sft/Mode BANK ( VALUE ) POSITION FUNCTION MODE COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL 1.GRAPHIC 1-6.BASS SYNTH 1.CHO 2.FLG 1.DELAY 2.MANUAL METRO ON 3.LIMITER...

  • Page 21: Switching Effect Modules On/Off

    Switching Effect Modules On/Off In Edit mode, the effect modules can be switched on or off freely. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL 1.GRAPHIC 1-6.BASS SYNTH 1.CHO 2.FLG 1.DELAY 2.MANUAL FUNCTION METRO ON...

  • Page 22: Changing Parameter Settings Of Effects

    Changing Parameter Settings of Effects You can choose any parameter of an effect module and change the setting and value as desired. POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP SYNTH EFFECT DLY/REV 1.BANK DOWN BANK FUNCTION 1.COMP2.COMP2 1.CLN1 2.CLN2 1.AUTO 2.PEDAL 1.GRAPHIC 1-6.BASS SYNTH 1.CHO...

  • Page 23: Storing Patches

    Storing Patches As long as you do not store in memory any patches edited in Edit mode, the original status will be returned when you select another patch. The following paragraphs describe how to store patches. 1, 3 POSITION FUNCTION MODE BANK(VALUE) COMP DIST/AMP...

  • Page 24: Copying A Patch To Another Location

    Copying a Patch to Another Location Patches of the 3000B can be copied to any desired number in the USER group. For example, if you want to use several patches in a song, copying them to the same bank will make it easy to select them during a performance.

  • Page 25: Using The Function Switch

    Using the FUNCTION switch The FUNCTION switch on the top panel of the 3000B is a special switch whose action can be selected by the user. There are nine preprogrammed modes for the FUNCTION switch which provide functions for various applications. This section describes how to select the FUNCTION switch mode and how to use the switch.
  • Page 26 2: MANUAL Toggles between Manual mode (in which Foot Switches 1 - 4 can be used to individually switch modules on and off) and regular Play mode. For information on Manual mode, please refer to page 23. This mode is useful when modules are to be switched on and off during a performance.

  • Page 27: Manual Mode

    Manual Mode In Manual mode, effect modules can be switched on and off individually during a performance. When the FUNCTION Mode parameter is set to "2", the FUNCTION switch can be used to toggle between Manual mode and regular Play mode. Manual mode operation is described below. POSITION FUNCTION MODE BANK(VALUE)

  • Page 28: Recording/Playing A Phrase (Hold Delay)

    Recording/Playing a Phrase (Hold Delay) When the FUNCTION Mode parameter is set to "3: HOLD DLY (LONG)" or "4: HOLD DLY (REAL)", the FUNCTION switch can be used to control the hold delay function. While you keep the FUNCTION switch depressed, play is sampled (recorded digitally) and then repeated by the 3000B. FUNCTION MODE BANK(VALUE) POSITION...
  • Page 29 If the FUNCTION switch is pressed for a longer interval than the NOTE hold time, sampling ends before the switch is released, and repeat play starts. When wishing to stop the sampling playback, press the FUNCTION switch once STEP more and release it immediately. The FUNCTION switch LED goes out and playback stops.

  • Page 30: Delay Time Tap Input

    Delay Time Tap Input When the FUNCTION Mode parameter is set to "5: DELAY (TAP)", the FUNCTION switch can be used to set the delay time for the effect types DELAY and DLY+REV (DLY/REV module). By using this function as described below, you can easily set the delay time to match the music's tempo. To use delay time tap input, select a patch which uses the effect type DELAY or DLY+REV from NOTE the DLY/REV module.

  • Page 31: Adjusting Effect Parameters In Real Time (Rtm)

    Adjusting Effect Parameters in Real Time (RTM) When the FUNCTION Mode is set to "9: RTM", the so-called RTM (real-time modulation) function can be used. RTM allows the user to change effect parameters in real time, using the FUNCTION switch. To use RTM, the reference setting (before change by RTM) and the maximum or minimum value (after change by RTM) must be set for each effect module.
  • Page 32 marked with " RTM" can be controlled by RTM. For example, when the effect type CHO is selected for the EFFECT module, the "Mix" parameter can be controlled by RTM. Use the VALUE knob to adjust the value of the effect parameter. STEP The value set in this way becomes the reference setting for RTM.
  • Page 33 Reference value < RTM parameter Reference value > RTM parameter Reference value maximum value minimum value Reference value FUNCTION FUNCTION switch switch Release the FUNCTION switch. STEP The RTM control target parameter gradually returns to the original FUNCTION value. • You can release the FUNCTION switch already before the maximum (minimum) value is reached.

  • Page 34: Controlling The Volume In Real Time (Volume Rtm)

    Controlling the Volume in Real Time (Volume RTM) When the FUNCTION mode is set to "9: RTM", the Volume RTM function is also available, allowing volume adjustment in real time. This makes it possible to easily perform fade- out or fade-in during a performance.
  • Page 35 While playing your instrument, press and hold the FUNCTION switch. STEP The effect volume will be gradually reduced to zero. FUNCTION FUNCTION switch LED lit The volume here refers to the input level of the EFFECT module, NOTE not the overall level of the 3000B. If for example delay or reverb is used, only the original sound is reduced, and the delay or reverb sound is still audible.

  • Page 36: Returning The 3000B To The Factory Default Settings

    Returning the 3000B to the Factory Default Settings This section describes use of the Special mode (All Initialize and Factory Recall). All Initialize is a special function for returning all the patches in the USER group and the values of the global parameters to their factory settings.

  • Page 37: Using The Remote Pedal

    Using the Remote Pedal While it is possible to perform RTM control and delay time tap input using only the controls on the 3000B itself, connecting the optional remote pedal RP01 will make these functions even easier to use, thereby increasing your playing scope during a performance. This section explains various way of using the remote pedal RP01.

  • Page 38: Control Functions (Rtm Mode)

    Control functions (RTM mode) Push-down switch integrated in control pedal Switches pedal wah or pedal pitch shifter on and off. Foot switch Switches pedal wah or pedal pitch shifter on and off. Status LED Lights up when pedal wah or pedal pitch shifter is switched, PEDAL SW and goes out when condition...

  • Page 39: Using The Rp01 For Controlling The Rtm Parameter (Rtm Mode)

    Using the RP01 for Controlling the RTM Parameter (RTM Mode) This section describes how to use the RP01 for controlling RTM or Volume RTM. 5, 6 5, 6 PEDAL SW STATUS MONITOR PEDAL-WAH ON/OFF(PEDAL SW) PEDAL-PITCH ON/OFF(PEDAL SW) VOLUME ASSIGN MODE DELECT RTM MODE MODE SELECT...
  • Page 40 If Volume RTM is ON If the Volume RTM setting is ON for the Volume RTM on currently selected patch, the control pedal of the RP01 can be used to continuously vary VOLUME the volume of the patch. When the pedal is fully up, volume is zero.
  • Page 41 Reference value < RTM parameter Reference value > RTM parameter Reference value Value of effect parameter set by RTM Value of effect parameter set by RTM Reference value RP01 RP01 To switch the on/off state of pedal wah/pedal pitch shift, use the control pedal STEP push-down switch or the foot switch of the RP01.

  • Page 42: Using The Rp01 For Delay Effect Control (Delay Mode)

    Using the RP01 for delay effect control (DELAY Mode) This section describes how to use the RP01 for tap input of the delay time and for on/off switching of the DLY/REV module. PEDAL SW STATUS MONITOR PEDAL-WAH ON/OFF(PEDAL SW) PEDAL-PITCH ON/OFF(PEDAL SW) VOLUME ASSIGN...
  • Page 43 To perform delay time tap input, press the RP01 pedal switch twice. STEP The 3000B detects the interval in which the pedal switch was pressed, and the delay time will be set in the DLY/REV module. If the pedal switch operation interval exceeds the maximum delay time, Press the RP01 the original delay time setting remains active.

  • Page 44: Effect Types And Parameters

    Effect Types and Parameters This section explains all of the Zoom Player 3000B's effect types and parameters. However, parameters that are the same for several effect types are only explained fully the first time they appear. • Parameters marked with "G" are global parameters, and parameters marked with "P"...

  • Page 45: Dist/Amp (Distortion/Amp Simulator)

    effect becomes active. Parameter 1 Sens Determines the input sensitivity. Parameter 2 Atk Parameter 2 Atk Parameter 3 Peak (Ratio) Determines the attack speed. Determines the compression ratio for signals exceeding the threshold. Higher values result in Type 6 SLAP higher compression ratio.
  • Page 46 Depending on the selected effect type, the content of The amp simulator effect is off. parameter 1 changes. C0 - C9: Simulates a combo type speaker cabinet. The numeral adjusts the depth of the Type 1 CLN1 (Clean 1) effect. S0 - S9: Simulates a stack type speaker cabinet.

  • Page 47: Wah

    This module comprises wah, phaser, equalizer and other effects. TYPE 7. GRAPHIC 1. AUTO 2. PEDAL 3. OCT 4. PHASE 5. ENH 6. P–EQ Dpt(Oct Mix) F1(Freq) 500Hz Parameter 1 ( RTM) 0–10 1–50 0–50 0–10 1–16 -12 – +12 Spd(Sens) ( RTM) ( RTM)
  • Page 48 Parameter 2 Spd Parameter 5 Level Determines the time delay until the effect sets in. Parameter 6 WAH RTM Parameter 3 Color Type 6 P-EQ (Parametric Equalizer) Determines the sound character. This is a parametric equalizer that allows boost/cut in Parameter 4 Mode two separate frequency ranges.

  • Page 49: Eq (Equalizer)

    This is a patch parameter that determines the adjustable frequency. sensitivity for the Zoom Noise Reduction (ZNR). Parameter 1 High The recommended approach is to set the value as Determines the boost/cut amount for the high range high as possible without producing an unnatural cut equalizer.

  • Page 50: Synth (Bass Synthesizer)

    SYNTH (Bass Synthesizer) This effect module produces a synthesizer sound based on the reference pitch detected from the bass signal. TYPE 1. BASS 2. BASS 3. BASS 4. BASS 5. BASS 6. BASS 7. HARMO SYNTH(1) SYNTH(2) SYNTH(3) SYNTH(4) SYNTH(5) SYNTH(6) SYNTH SYNTH...
  • Page 51 Type 1 (BASS SYNTH 1). Note played on the bass Parameter 3 Decay Example: C Determines the speed with which the portamento effect changes the pitch. When Scale 1 When Scale 2 is selected is selected Type 6 BASS SYNTH 6 (Bass Synthesizer 6) This effect type produces a vibrato type square-wave synthesizer sound.

  • Page 52: Effect

    EFFECT This module comprises effect types such as chorus, pitch shifter, ring modulator, etc. The global parameter FUNCTION Mode which determines the action of the FUNCTION switch is also part of this module. TYPE 1. CHO 2. FLG 3. PIT 4.
  • Page 53 Parameter 4 Bal ( RTM) module. Determines the level balance between effect sound [] Type 6 TRILL and original sound. "0" means original sound only, and "1.0" (100) means effect sound only. This effect type continuously shifts the pitch of the effect sound up and down, simulating trill play.
  • Page 54 Note played on the bass When Color is set to M When Color is set to m Parameter 3 Rate Parameter 2 Mode (Reso) Determines the arpeggio speed. Determines the resonance of the ring modulator. Parameter 4 Bal Parameter 3 Rate ( RTM) Determines the modulation frequency.

  • Page 55: Dly/Rev (Delay/Reverb)

    DLY/REV (Delay/Reverb) This effect module contains various delay and reverb effects. The Patch Level setting (patch parameter) that controls the level of the entire patch is also made in this module. TYPE 4. EARLY 1. DELAY 2. HALL 3. ROOM 5.
  • Page 56 Parameter 3 FB Determines the delay feedback level. If DLY/REV module is ON in target patch Patch is switched Parameter 4 RevMix Determines the reverb level and time. Higher values result in higher level and shorter reverb time. PATCH 2 PATCH 1 DLY/REV=ON Common parameters for Type 1 - 6...

  • Page 57: 3000B Specifications

    Sampling frequency 39.0625 kHz A/D converter 20 bit, 64 times oversampling D/A converter 20 bit, 128 times oversampling ZFx-2 (developed by ZOOM) x 2 Input Bass input (standard monaural phone jack) Rated input level: -20 dBm Input impedance:500 kilohms Output...

  • Page 58: Troubleshooting

    Troubleshooting If there seems to be a problem with the unit, please check the following points first. Check Remedy Problem Turn the power ON by following the • Is the AC adapter connected correctly instructions, "GETTING CONNECTED". and the power ON? Connect them correctly by following the •...
  • Page 59 Using optional RP01 or FUNCTION SW(RTM mode), effect can be controlled dynamically. RTM ready *The INPUT ATT and ZNR (Zoom Noise Reduction)parameter in each patch should be adjusted for optimum matching with your bass. *At the factory, USER memory area is programmed the same as PRESET memory area.
  • Page 60 ZOOM CORPORATION NOAH Bldg., 2-10-2, Miyanishi-cho, Fuchu-shi, Tokyo 183-0022, Japan PHONE: 042-369-7116 FAX: 042-369-7115 Printed in Japan 3000B-5000...
