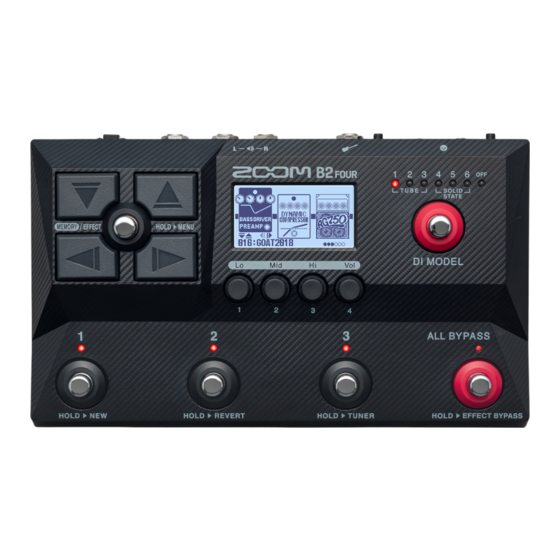

Zoom B2 FOUR Manual

Effects & amp emulator
Hide thumbs Also See for B2 FOUR:

Advertisement

Quick Links

Download this manual
Effect Types and Parameters
This document cannot be displayed properly on black-and-white displays.
© 2023 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited. Manufacturer names and product names are trademarks or
registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with
the ZOOM CORPORATION.

Advertisement

loading
Need help?

Need help?

Do you have a question about the B2 FOUR and is the answer not in the manual?

Questions and answers

Related Manuals for Zoom B2 FOUR

Summary of Contents for Zoom B2 FOUR

  • Page 1 Effect Types and Parameters This document cannot be displayed properly on black-and-white displays. © 2023 ZOOM CORPORATION Copying or reprinting this manual in part or in whole without permission is prohibited. Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with...
  • Page 2 Effect explanation overview Tempo synchronization possible icon Effect type Effect explanation Parameter range DELAY This long delay has a maximum length of 4000 ms. TIME Sets the delay time. 1 – 4000 SHORT, Sets the delay time range. LONG, MODE When metronome is chosen, the delay time is synchronized to the tempo.
  • Page 3 Effect Types and Parameters [ DYNAMICS ] DYNAMIC This is a simulation of the MXR Dyna Comp. COMPRESSOR Added parameters allow you to adjust the tone and the compressor attack speed. SENSE Adjusts the sensitivity of the effect. 0 – 10 ATTACK Sets compressor attack speed to FAST or SLOW.
  • Page 4 This is a limiter that suppresses signal peaks above a certain reference level. 10 – 70 Adjusts the output level. 0 – 80 OUTPUT ZOOM ZOOM's unique noise reduction cuts noise during pauses in playing without affecting NOISE the tone. REDUCTION GTRIN, Sets control signal detection level.
  • Page 5 Effect Types and Parameters [ FILTER ] BASS CRY This talking modulator is suitable for the bass frequency range. FILTER RANGE Adjusts the frequency range processed by the effect. 1 – 10 RESO Sets effect resonance. 0 – 10 SENSE Adjusts the sensitivity of the effect.
  • Page 6 Effect Types and Parameters [ FILTER ] BASS PARAMETRIC This 1-band parametric equalizer is suitable for the bass frequency range. 20 Hz – FREQ Sets the frequency of the equalizer. 20 kHz Adjusts equalizer Q. 0.5 – 16.0 GAIN Adjusts the gain. -20.0 –...
  • Page 7 Effect Types and Parameters [ DRIVE ] BASS TS Simulation of the Ibanez TS808. An added parameter allows you to adjust the balance DRIVE of original sound and distortion. GAIN Adjusts the gain. 0 – 100 TONE Adjusts the tone. 0 –...
  • Page 8 Effect Types and Parameters [ DRIVE ] BASS FUZZ This models a FUZZ FACE. An added parameter allows you to adjust the balance of SMILE original sound and distortion. GAIN Adjusts the gain. 0 – 100 TONE Adjusts the tone. 0 –...
  • Page 9 Effect Types and Parameters [ PREAMP ] DARK This is a simulation of the Darkglass Electronics Microtubes B7K. PREAMP Adjusts volume of low frequencies. 0 – 100 BASS LO-MID Adjusts the volume of lower middle frequencies. 0 – 100 HI-MID Adjusts the volume of higher middle frequencies.
  • Page 10 Effect Types and Parameters [ PREAMP ] SB PREAMP 1 This is a preamp model with a 3-band equalizer. BASS Adjusts volume of low frequencies. 0 – 10 Adjusts volume of middle frequencies. -10 – 10 TREBLE Adjusts volume of high frequencies. 0 –...
  • Page 11 Effect Types and Parameters [ MODULATION ] TRI CHORUS This is a model of tc electronic's CORONA Tri-Chorus. DEPTH Sets the depth of the modulation. 0 – 100 SPEED Sets the speed of the modulation. 0 – 100 TONE Adjusts the tone. 0 –...
  • Page 12 Effect Types and Parameters [ MODULATION ] BASS This phaser is good for bass frequencies. PHASER COLOR Sets the sound color. 1, 2 DEPTH Sets the depth of the modulation. 0 – 100 RATE Sets the speed of the modulation. 0 –...
  • Page 13 Adjust the amount of the effect sound in the mix. 0 – 100 Adjust the amount of the original sound in the mix. 0 – 100 [ SYNTH ] BASS ZOOM original bass synthesizer sound. SYNTHESIZER MODE Sets direction of movement of the filter. UP , DOWN SENSE Adjusts the sensitivity for trigger detection.
  • Page 14 Effect Types and Parameters [ DELAY ] DELAY This long delay has a maximum length of 4000 ms. TIME Sets the delay time. 1 – 4000 SHORT, Sets the delay time range. LONG, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.
  • Page 15 Effect Types and Parameters [ DELAY ] This hold delay effect is controlled using the foot switch. When you press the foot HOLD DELAY switch, the effect turns on, and when you release it, the effect sound is held. TIME Sets the delay time.
  • Page 16 Effect Types and Parameters [ REVERB ] BRGHT HALL This hall reverb simulation can provide bright reverberations. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 1 – 100 DECAY Sets the duration of the reverberations. 1 –...
  • Page 17 Effect Types and Parameters [ PEDAL ] OUTPUT This controls the product output level. This volume will be kept even when the patch VOLUME memory is changed. PEDAL PEDAL The volume curve of the volume pedal can be set. VOLUME Adjusts the volume.
  • Page 18 Effect Types and Parameters [ BASS AMP ] FLIPTOP This models the sound of the Ampeg B-15N bass amplifier. BRIGHT Adjusts the high-frequency character. OFF , ON TREBLE Adjusts volume of high frequencies. -20.0 – 20.0 Adjusts volume of middle frequencies. -20.0 –...
  • Page 19 Effect Types and Parameters [ BASS AMP ] MINI This models the sound of the Markbass MINIMARK 802 bass amplifier. MARK-B GAIN Adjusts the gain. 0 – 100 VINTAGE Adjusts the tone. 0 – 100 SHAPE These filters boost low and high frequencies while cutting middle frequencies. 0 –...
  • Page 20 Effect Types and Parameters [ BASS AMP ] MONOTONE This models the sound of a solid-state combo amp that is great for jazz. BASS Adjusts volume of low frequencies. 0 – 100 Adjusts volume of middle frequencies. 0 – 100 TREBLE Adjusts volume of high frequencies.
  • Page 21 - 2 octave DOWN 0 cent -∞ -/+ OCT - 1 octave +original +1 octave +original -5/+4TH - 700 cent +original +500 cent +original DETUNE Doubling Detuned +original DWN/OCT -∞ (0 Hz) +original +1 octave +original ©2023 ZOOM CORPORATION Z2I-4875-01...
